Rev. 5
3-14

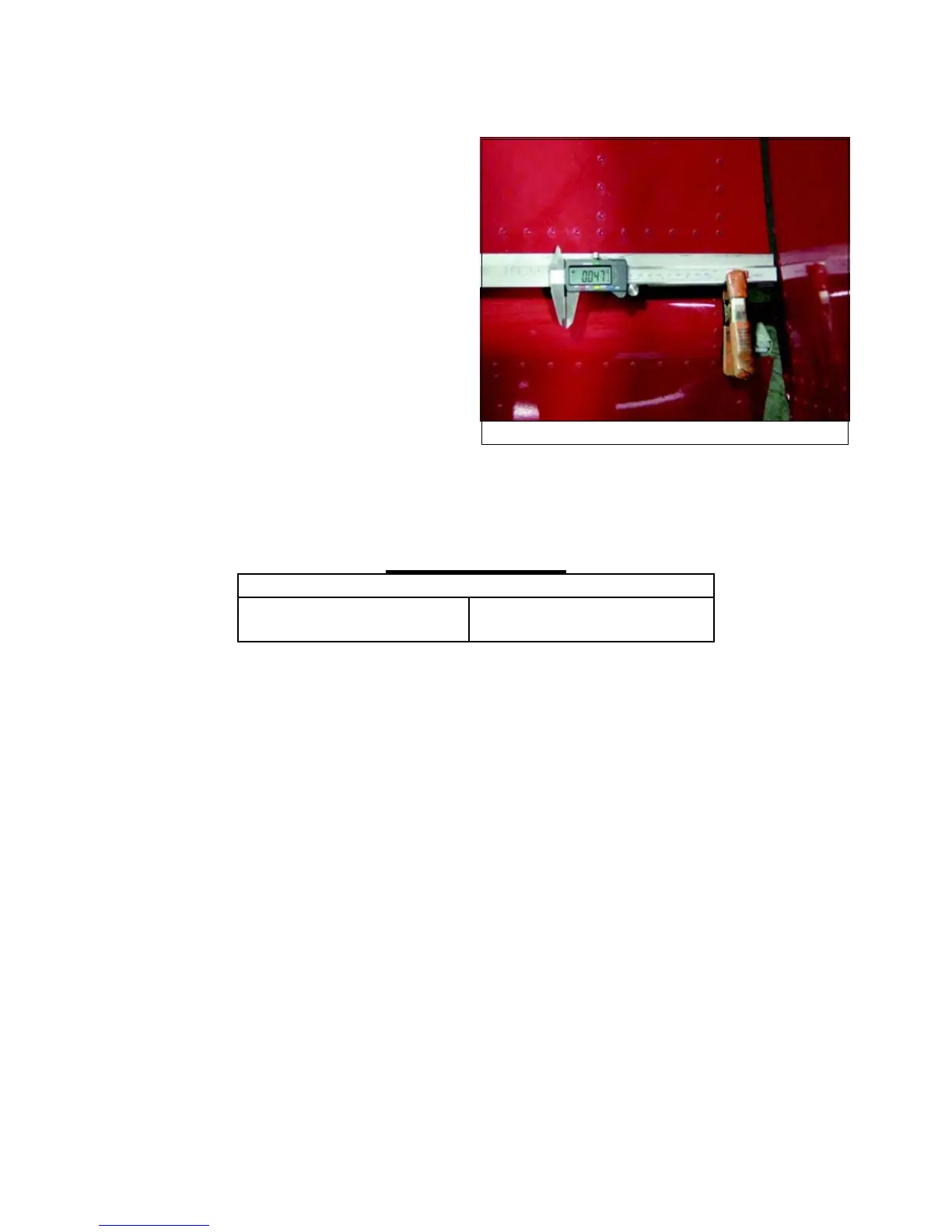

• If your aircraft has ES-00076 & ES-
00077 Electrical Connectors (See KAI
31B-08 and 31B-18) and the
measurement is less than 0.050 no
repair is required.
• If your aircraft has tab style VA-262
electrical connectors in UHMW (See
KAI 31-02) and the measurement is
less than 0.010 no repair is required.
• For repair instructions see Section 5.
EMPENNAGE
♦
Magnifying glass
♦ Flashlight
♦
Straight edge
♦ Inspection mirror
VERTICAL STABILIZER
• Check the main skin and forward skin for deformation or cracks.
• Check the main skin fasteners by sighting along each rivet pattern for any
inconsistent rivet profile among similar properly installed rivets.
• Check the forward spar and fasteners for cracks, deformation and signs of fatigue.
• Inspect the rear spar, spar fasteners, and hinges for cracks, deformation and signs
of fatigue, especially the areas surrounding the rudder hinge brackets.
• Check the fiberglass fairing for condition and security.
• Check for interference or signs of wear from the rudder.
• Look through the forward spar lightening holes to inspect the rear spar, ribs, and rib
flanges for cracks.
RUDDER
• Check the main skin for damage or deformation.
• Sight along each rivet pattern for any inconsistent rivet profile among similar properly
installed rivets.
• Check the spar and hinge brackets for cracks, deformation and signs of fatigue,
especially the areas surrounding the hinge brackets.
Figure 7.1: Inspect Rear Spar Doubler
