Van's Aircraft RV-12 Maintenance Manual

Rev. 6
5-4
WING AND FLAPERON
The wing and flaperon are removable as an assembly from each side of the
fuselage. Each wing mates to the fuselage at three points; the stub spar, the main spar
and the rear spar. Two fuselage pins secure both main spars to the center section of the
fuselage. Electrical and control connections connect automatically during wing
attachment. The left wing has a stall warning sender installed. With the wing detached
from the fuselage, the flaperon is removable.

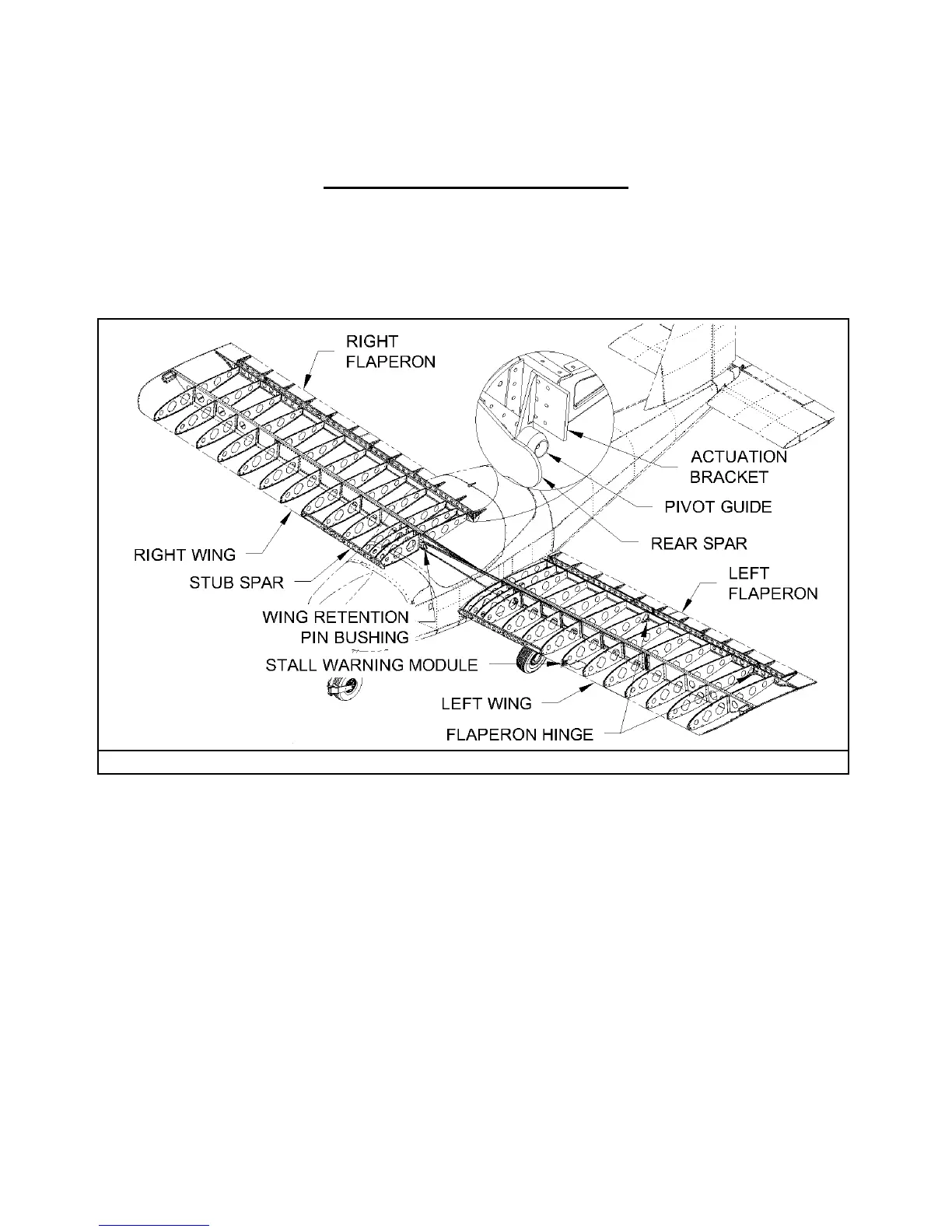

Figure 10: Wing and Flaperon
