NOSE WHEEL AND GEAR LEG FAIRINGS
The optional nose wheel and gear leg fairings include the glass fabric/epoxy
resin nose leg fairing, wheel fairing front and the wheel fairing aft. See Figure 13. The
nose leg fairing is clamped about the nose leg using a piano hinge held in place by a
single screw. The nose leg fairing is slotted to fit about the nose leg winch lug. The
wheel fairing aft attaches to the wheel fairing front which in turn attaches to the nose
fork. Tow bar access is provided by two 13/16 diameter holes in the wheel fairing front.

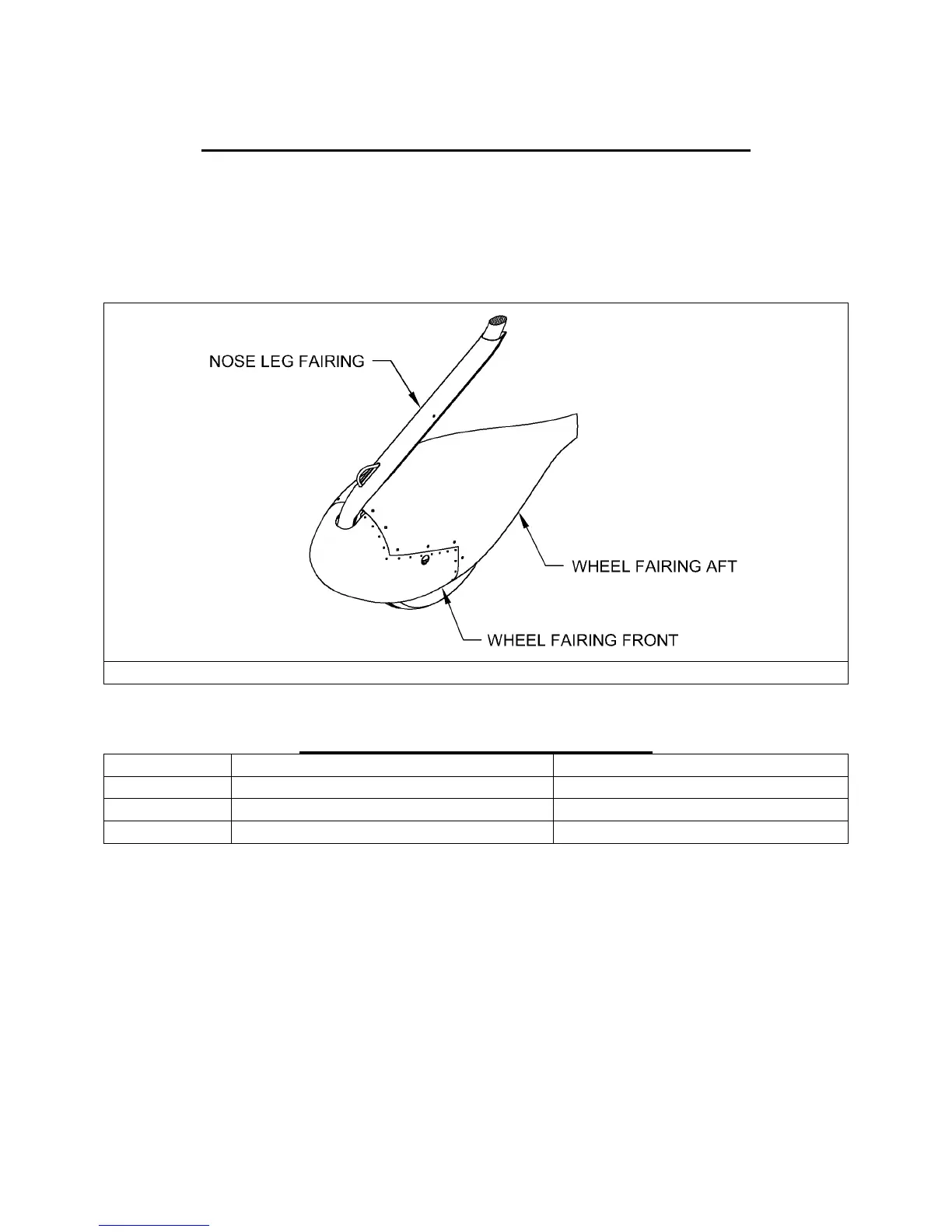

Figure 13: Nose Wheel and Gear Leg Fairings
OPTIONAL COMPONENTS
