4. Measure and
record the hinge
bearing
protrusion
measurement
as shown in
Figure 15.

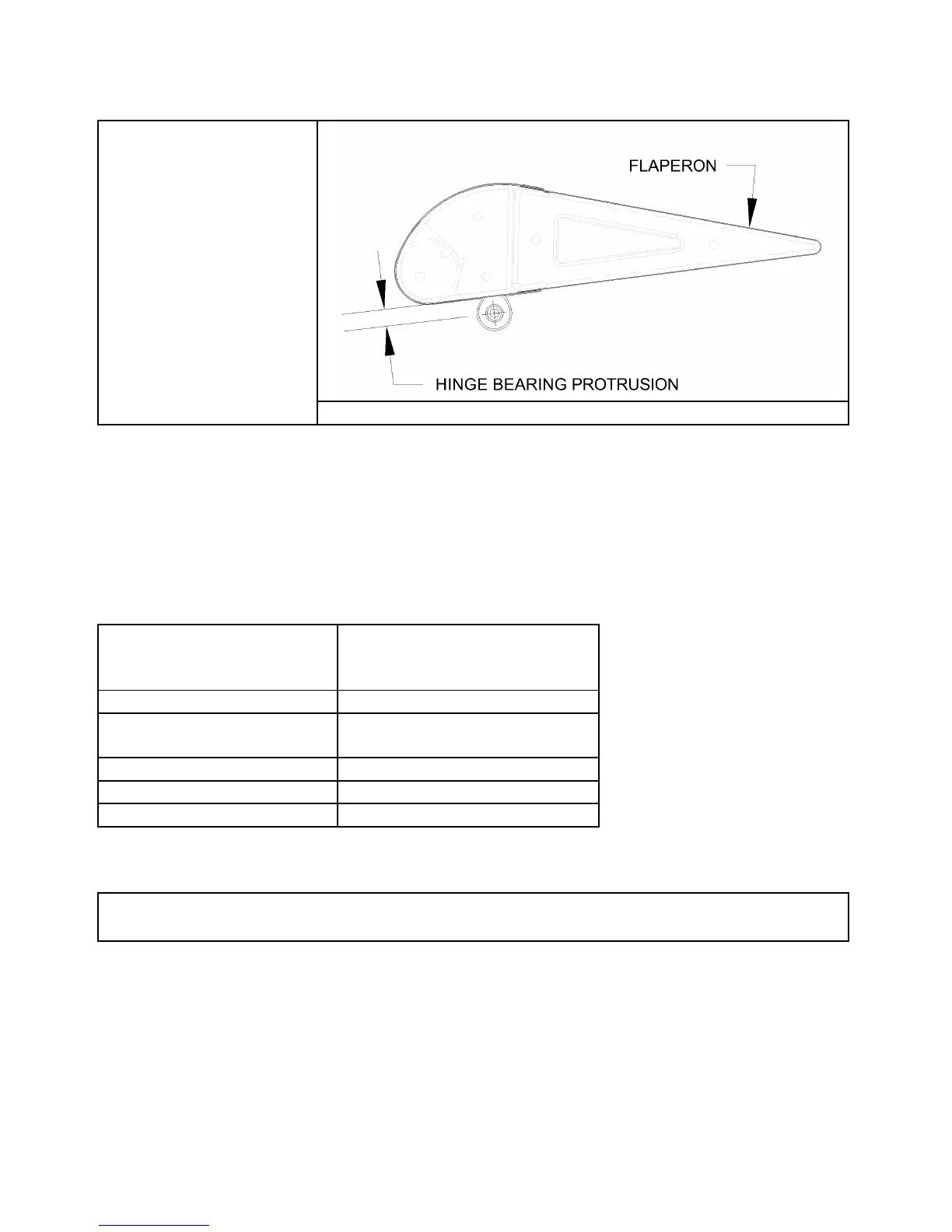

Figure 15: Flaperon hinge
5. Remove the flaperon hinge bearing from the wing.
6. Install the new flaperon hinge bearing to the same protrusion measurement.
7. Install the flaperon assembly.
RUDDER HINGE REPLACEMENT
3/8 combo wrench
Lower rudder hinge
Upper rudder hinge
E PREPARED WITH ADDITIONAL PERSONEL OR TOOLS TO HANDLE THE
WEIGHT AND AWKWARDNESS OF THE OBJECT TO BE REMOVED.
1. Remove the upper and lower tailcone fairing. (3-4)
2. Remove the rudder control cables and rudder assembly.
3. Remove, from the vertical stabilizer, the rudder hinge hardware (see below) and
the rudder hinge to be replaced;
♦ Upper hinge; bolt (4), washer (8)
♦ Lower hinge; bolt (4), washer (4)
