Attaching Wood Base to Solid Floor
For attaching base to solid floors (concrete or masonry)
Note:
Floor anchors and mounting screws are in hardware package. The hardware
package is provided with fireplace.
1. Drill holes at marked locations using 5/16" drill bit. For solid floors (concrete or
masonry), drill at least 1" deep.
2. Fold floor anchor as shown in Figure 15.
3. Insert floor anchor (wings first) into hole. Tap anchor flush to floor.
4. Insert mounting screws through base and into floor anchors.
5. Tighten screws until base is firmly fastened to floor.
Figure 15 - Folding Anchor
Assembling Brass Trim (Brass trim shipped with mantel)
1. Remove packaging from three remaining pieces of brass trim.
2. Locate two adjusting plates with set screws, and two shims in the hardware packet.
3. Align shim under adjusting plate as shown in Figure 14.
4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see
Figure 14).
5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim
(see Figure 14).
6. While firmly holding edges of brass trim together, tighten both set screws on the
adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set Brass Assembly aside for later installation.
Side Brass Trim
Top Brass Trim
Mitered Edge

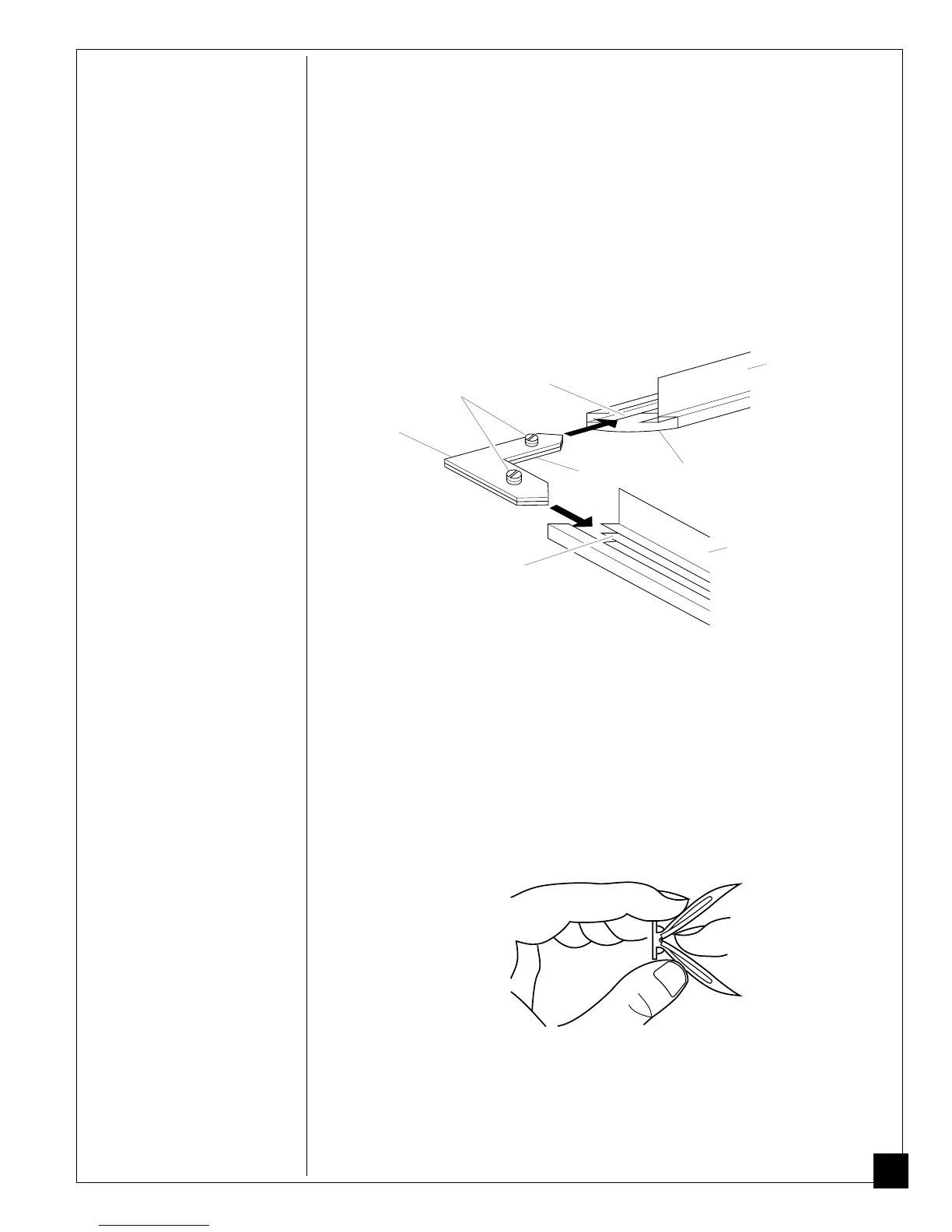

Figure 14 - Assembling Brass Trim
Shim
Set Screws
Adjusting
Plate
Slot
Slot
INSTALLING
Continued
To Next Page
