Vaper 19220 - Parts Breakdown and Identification; Touch-Up Gun Parts Breakdown; Production Guns Parts Breakdown

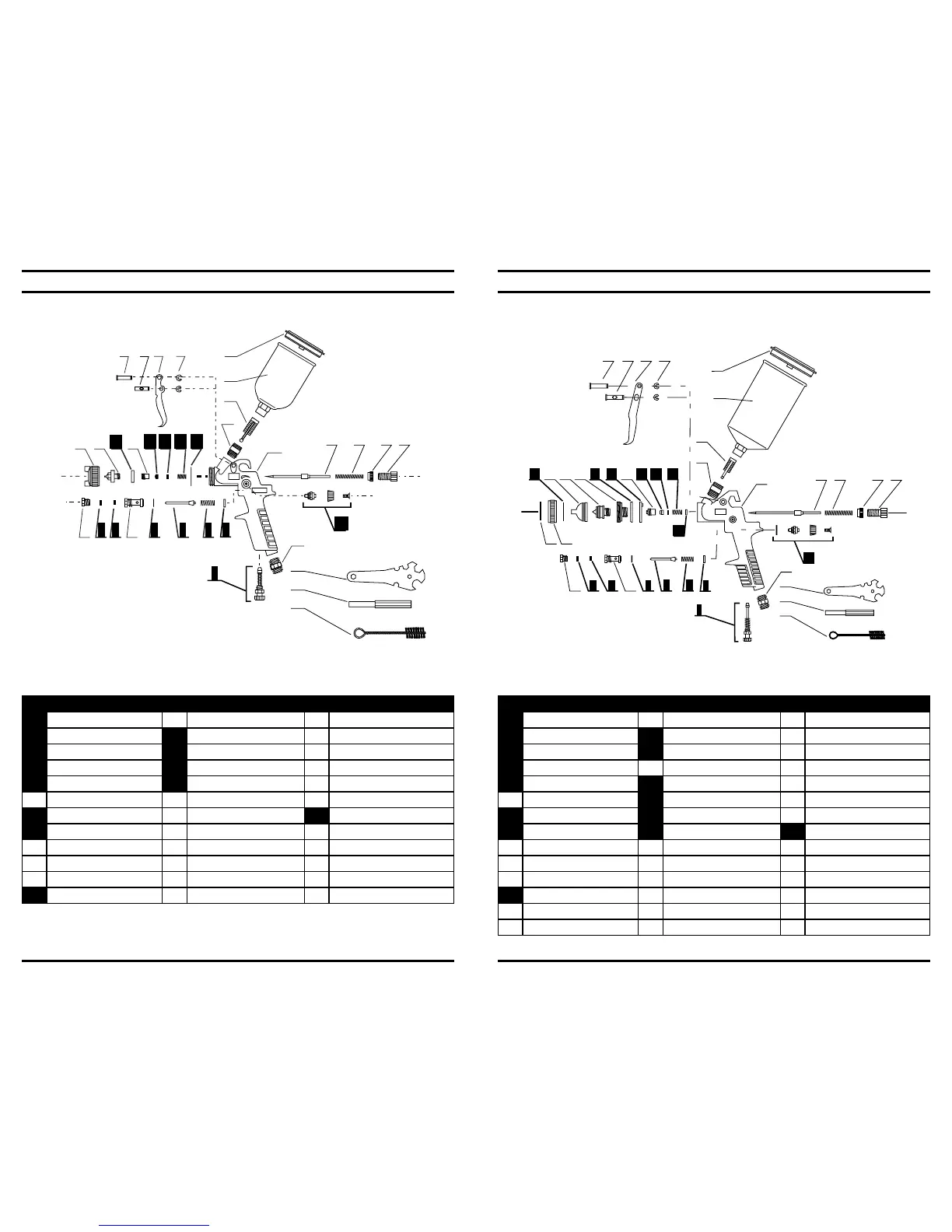

ITEM 19220 - PARTS BREAKDOWN
Guns 2 & 3 - Production Guns
18
No. Description No. Description No. Description
1 Air Adjustment Valve 15 Air Manifold 29 Fluid Filter
2 Gasket 16 Tapered Washer 30 Fluid Inlet Fitting
3 Air Valve Spring 17 Air Manifold Spacer 31 Gun Body
4 Air Valve Piston Shaft 18 Retention Screw 32 Fluid Needle
5 O-Ring 19 Paint Needle Washer 33 Fluid Needle Spring
6 Air Valve Seat 20 Sealing Washer 34 Fluid Adjustment Locking Ring
7 O-Ring 21 Locking Spring 35 Fluid Adjustment Knob
8 Pliable Packing Washer 22 Gasket 36 Pattern Adjustment Valve
9 Air Valve Packing Nut 23 Trigger Pin - Pivot 37 Air Inlet Fitting
10 Air Cap Retention Ring 24 Trigger Pin - Fluid Needle 38 Gun Wrench
11 Air Cap Locking Ring 25 Trigger 39 Internal/External Hex Wrench
12 Air Cap Washer 26 Retaining Ring 40 Brush
13 Air Cap 27 Lid
14 Fluid Nozzle 28 Cup
3
1
4
6
7
89
11
10
12
13
14 15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
36
37
38
39
40
2
5
31
32 33 34 35
Rebuild Kit available for this Spray Gun: Part #19909
Numbers highlighted in black are included in rebuild kit
ITEM 19220 - PARTS BREAKDOWN
Gun 1 - Touch-Up Gun
No. Description No. Description No. Description
1 Air Adjustment Valve 13 Retention Screw 25 Fluid Inlet Fitting
2 Gasket 14 Paint Needle Washer 26 Gun Body
3 Air Valve Spring 15 Sealing Washer 27 Fluid Needle
4 Air Valve Piston Shaft 16 Locking Spring 28 Fluid Needle Spring
5 O-Ring 17 O-Ring 29 Fluid Adjustment Locking Ring
6 Air Valve Seat 18 Trigger Pin - Pivot 30 Fluid Adjustment Knob
7 O-Ring 19 Trigger Pin - Fluid Needle 31 Pattern Adjustment Valve
8 Pliable Packing Washer 20 Trigger 32 Air Inlet Fitting
9 Air Valve Packing Nut 21 Retaining Ring 33 Gun Wrench
10 Air Cap 22 Lid 34 Internal/External Hex Wrench
11 Fluid Nozzle 23 Cup 35 Brush
12 Air Manifold Spacer 24 Fluid Filter
Rebuild Kit available for this Spray Gun: Part #19910
Numbers highlighted in black are included in rebuild kit
1
3 3
3 4
3 5
23456789
10 11
12
13
14 1 6
15
17
18 1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 728
2 930
3 1
3 2
2 6
19
