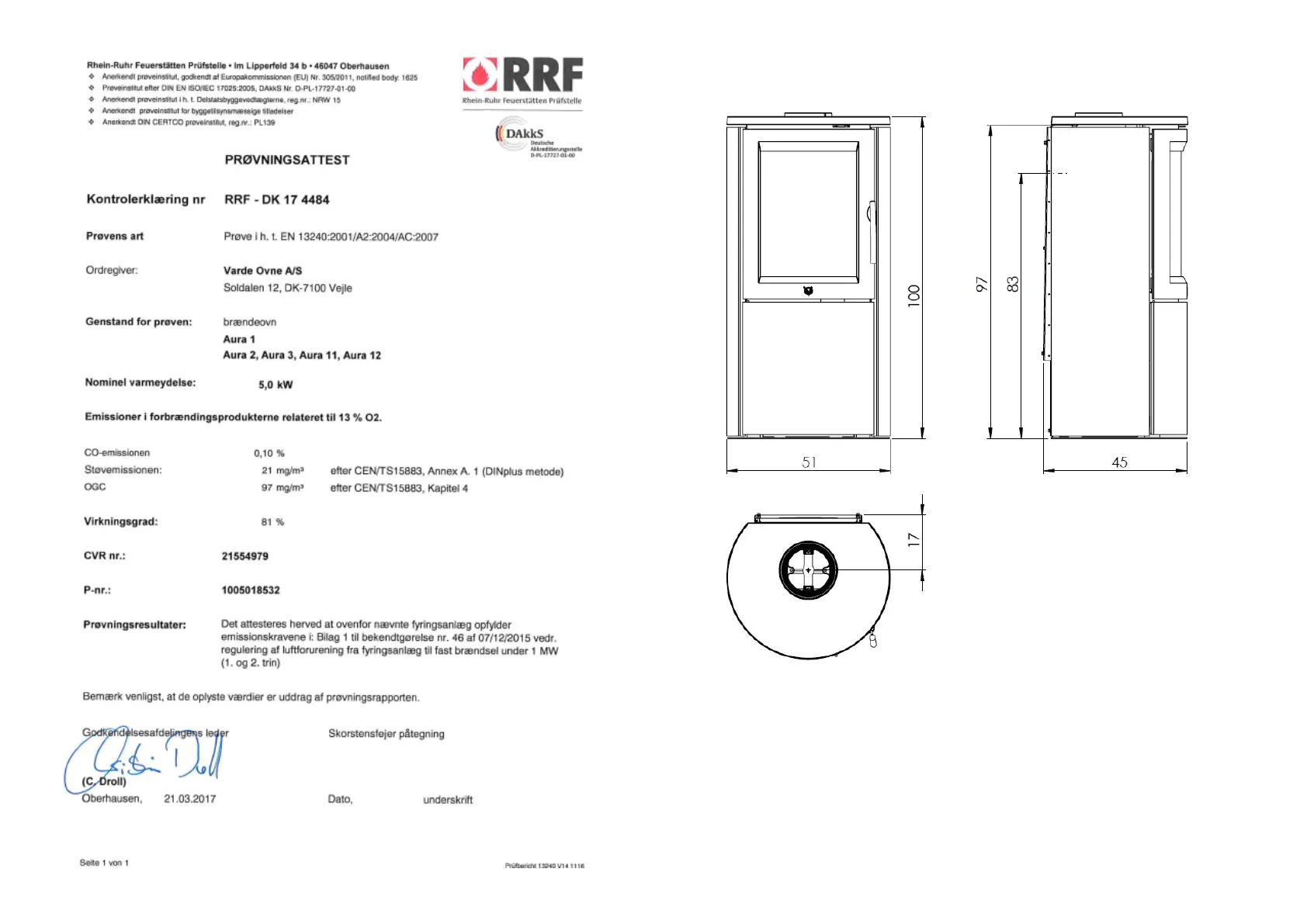

Technical data, Aura 1
Combustion chamber: (H x W x D):
24.5-36.0x30.0x28.0 cm
Smoke outlet Ø 15 cm
Installation height, top: 97 cm
Installation height, rear: 83 cm
Distance to non-flammable material:
5–10 cm (recommended)
Distance to flammable material:
Rear=12.5 cm, Side=30 cm, Front=80 cm
Height (cm) 100
Width (cm) 51
Depth (cm) 45
Weight (kg) 104
Output 3-7 kW
Nominal output 5.0 kW
Heated area 30-105 m
2
Efficiency 81%
EEI 108
Flue gas data: 265°C at 25°C, 12 pa.
