20
Spare parts list:
Log retainer, product no. and EAN number
Aura 1 and 11 : 100483 /5703505042920
Aura 2 and 3 : 100477 / 5703505601110
Top Cover, product no. and EAN number
Aura 3 and 3 Stone : 100701 / 5703505049233 (Steel Ø165 VO logo)
Aura 1, 11 and 2 : 100266 / 5703505033546 (Cast iron)
Glass, product no. and EAN number
Aura 1 and 11 : 100280 / 5703505042722
Aura 2 and 3 : 100281 / 5703505042739
Handle, product no. and EAN number
Aura 1 and 11 : 100402 / 5703505042142
Aura 2 : 100404 / 5703505042159
Aura 3 : 100408 / 5703505043668
Ash pan, product no. and EAN number
Aura 1, 2, 3 and 11 : 100712 / 5703505044382
Set of vermiculite panels, product no. and EAN number : Including smoke guide
plate Aura 1 and 11 : 100309 / 5703505042814
Aura 2 and 3 : 100318 / 5703505038831
Gasket for glass and ash pan, product number and EAN number
100443 / 5703505045457
Gasket for door incl. glue, product number and EAN number:
100351 / 5703505040162
Glass cleaner spray, product number and EAN number: 100493 / 5703505045471
Repair spray for paint
Black 400 ml: 100603 / 5701909002069
Grey 400 ml : 100604 / 5701909006142
5

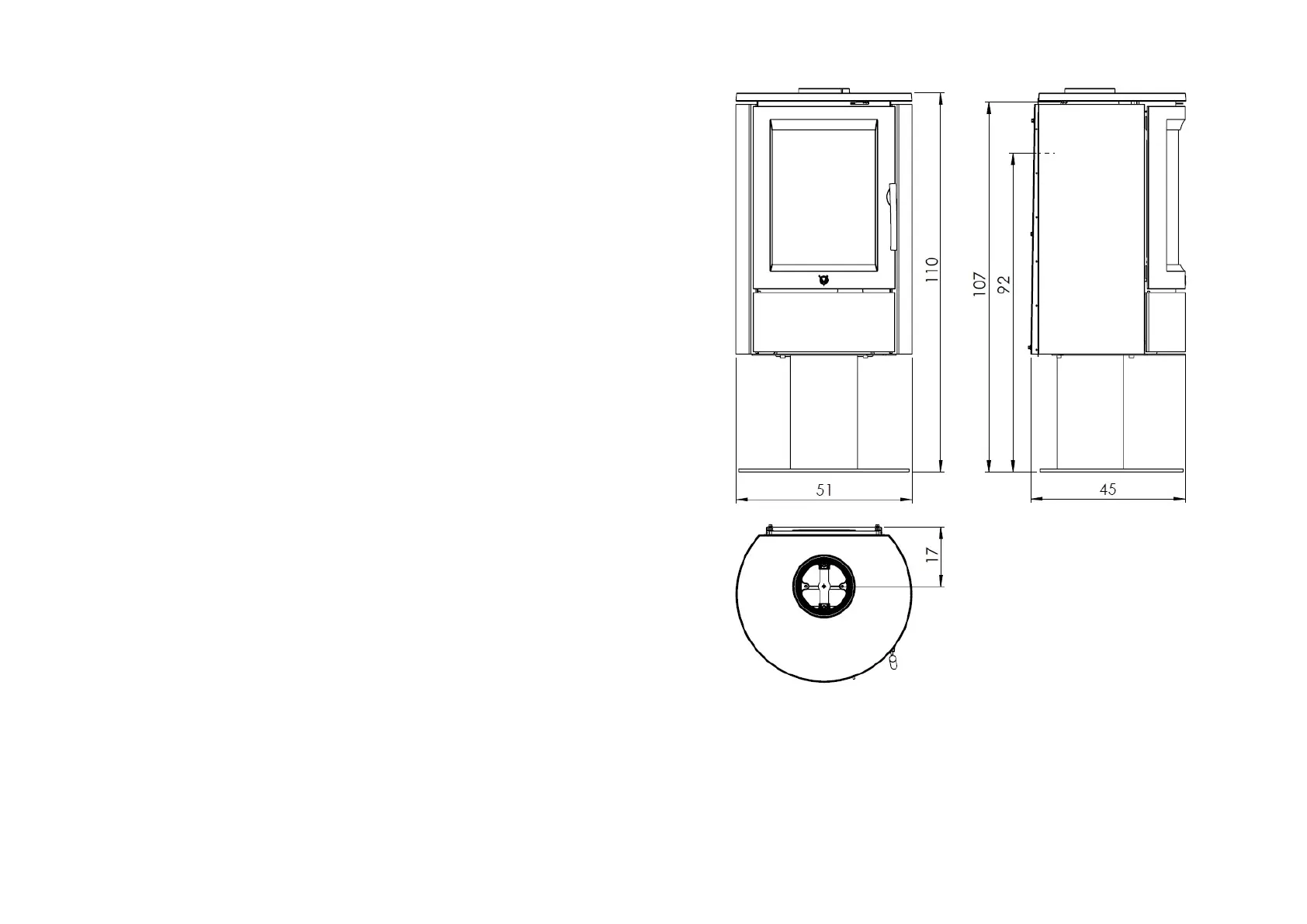

Height (cm) 110
Width (cm) 51
Depth (cm) 45
Weight (kg) 113
Output 3-7 kW
Nominal output 5.0 kW
Heated area 30-105 m
2
Efficiency 81%
EEI 108
Technical data, Aura 11
Combustion chamber: (H x W x D):
24.5-36.0x30.0x28.0 cm
Smoke outlet Ø 15 cm
Installation height, top: 107 cm
Installation height, rear: 92 cm
Distance to non-flammable material:
5–10 cm (recommended)
Distance to flammable material:
Rear=12.5 cm, Side=300 cm, Front=80 cm
