VARI❋LITE - VL 2600 PROFILE/SPOT/WASH LUMINAIRE QUICKSTART GUIDE
02.1711.0022 29 May 2018 8
Connecting Power and Data
Connecting Power
The luminaire requires standard AC power distribution from 200-240 VAC, 50/60 Hz. Current
required depends on the AC supply voltage and product model. Refer to
“Current vs. Voltage” on page 9 for
all models covered in this manual.
Note: The mating Neutrik® powerCON® True1 connector is supplied; however, you will need to
purchase or construct a cable appropriate for your application. Available power input cables is found in
“Replacement Items/Accessories” on page 8.

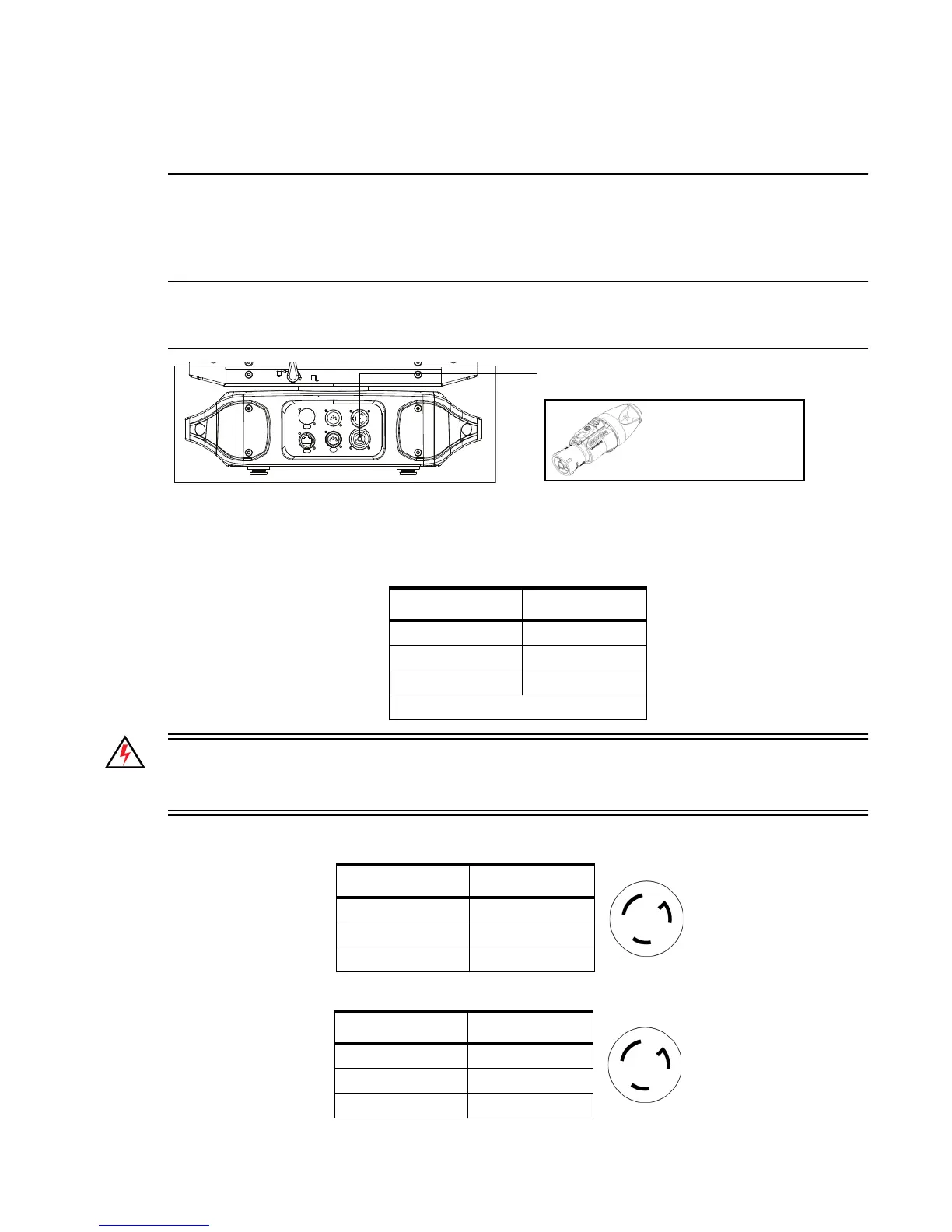

Figure 1: Power Connector
Depending on the application, the luminaire’s AC input cable may require a different connector. If
required, install a new connector meeting your requirements using the following wire color code
reference:
WARNING: DO NOT connect to three-phase service in countries with 240 volt power.
AVERTISSEMENT: NE PAS se connecter au service en trois phases dans les pays avec puissance de
240 volts.
For single-phase power at 240 volts RMS:
For three-phase power at 200 volts RMS:
Wire* Connection
Green/Yellow AC Ground
Blue AC Neutral
Brown AC Line
* International (Harmonized) Standard
Connection Pin
AC Neutral X
AC Line Y
Ground (Earth) G
Connection Pin
Phase 1 X
Phase 2 Y
Ground (Earth) G
AC Power Input
Neutrik® powerCON TRUE1
AC Input Connector
X
Y
G
X
Y
G
