Variovac CENTRAL VACUUM CLEANER - Installation Instructions

INSTALLATION INSTRUCTIONS
The central vacuum cleaner must be installed in a dry and well-ventilated room.
You need a power outlet within range (max. 1 m) of the unit.
For the suction side of the pipe installation please use pipes of 2 inch diameter. We
recommend that you glue the pipe system. We do not recommend the use of 50 mm HT pipe
because it is not possible to properly seal the pipe system. It is also not recommended to install
pipe with a smaller diameter (e. g. 40 mm HT pipe) or a larger diameter (> 50.8 mm). Such
cases will void the guarantee in case of damage.
For the extracted air side of the pipe installation please use the following dimensions:
Exhaust pipe: length up to 3 m use 2 inch adhesive pipe (Ø 50 mm)
Exhaust pipe: length 3 m up to 8 m use pipe Ø 70 mm
Exhaust pipe: length longer than 8 m use pipe Ø 100 mm
Generally avoid using an exhaust pipe longer than 3 m. If the exhaust pipe needs to be any
longer, please consider an alternative location for your central vacuum cleaner.
All parts and accessories for the installation are located inside the dirt container.
Open the fastenings and remove all needed parts.
4
One-motor Two-motor
version version

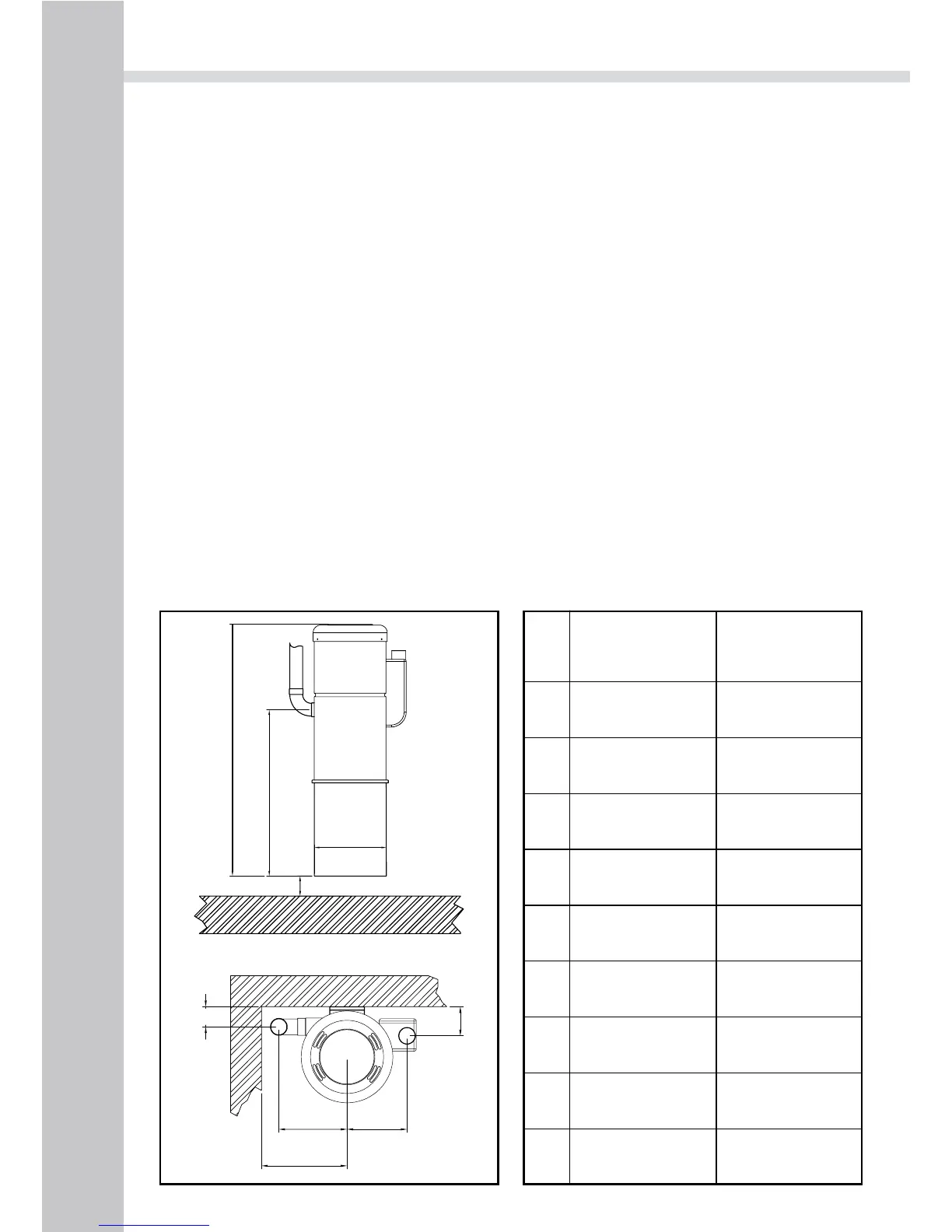

A at least 8 cm at least 8 cm
B 66 cm 69 cm
C 100.5 cm 113.5 cm
D 28.7 cm 35.7 cm
E 8.5 cm 8.5 cm
F 24.5 cm 24.5 cm
G 20 cm 24 cm
H 34 cm 36 cm
I 10 cm 10 cm
