Model #: XL-1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 55-12029 Page 19
Assembly Instructions
32. Repeat steps 14 thru 19 to mount Monitor Brackets (K) to your TV depending on the back
style of the TV.

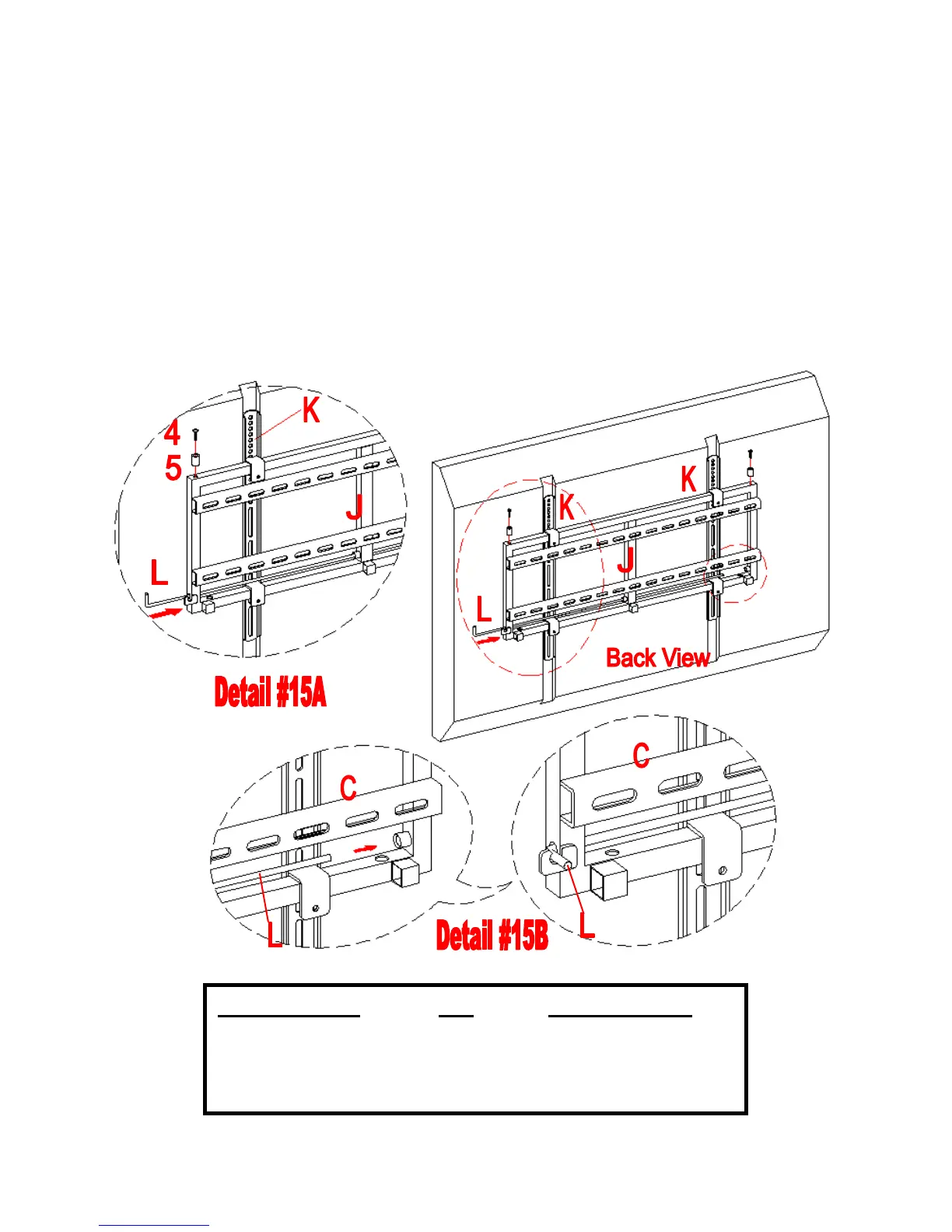

33. Attach two Stoppers (5) at the end of the XYZ Mounting Frame (J) with 1 1/4” Bolts (4) as
shown in detail #15A. Now you can hang your TV by hooking the Monitor Brackets (K)
over the XYZ Mounting Frame.
34. Once the TV is in place, insert the Safety Bar (L) completely into the bottom taper holes
on the XYZ Mounting Frame. Make sure that it sits over the bottom hook of the Monitor
Bracket and the bent end is faced toward wall and turned into the slot of back hook for
additional security. See detail #15B.
35. Now you can place assembled Table Top under your TV set installed.
Parts Required Qty Tools Required
L – Safety Bar (1) Allen Wrench
(4) – 1 1/4” Bolt (2)
(5) – Stopper (2)
