Model #: XL-1
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 55-12029 Page 6
Assembly Instructions
3. Stand the unit upright.

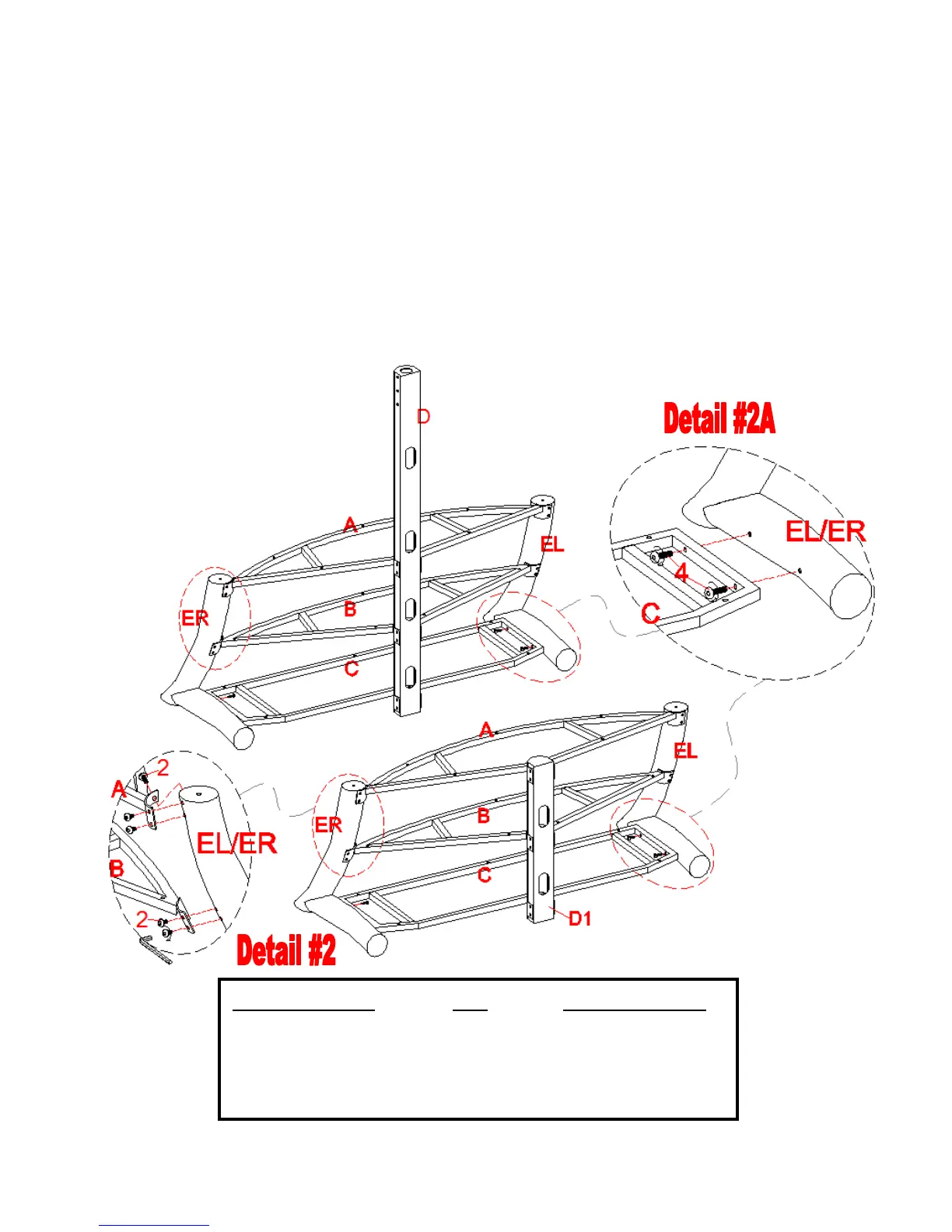

4. Align and attach the Side Legs (EL & ER) to Bottom Frame (C), using four 1 1/4” Bolts (4)
through the bottom frame holes from inside. As shown in detail #2A.
5. Proceed to attach the Left and Right Side Legs (EL & ER) to Top and Middle Shelf
Frames (A & B), using the 5/8” Bolts (2) through the end bracket holes into the threaded
inserts located on the Side Legs, as shown in detail #2.
6. Now fully tighten all the bolts.
Note: Ask a friend to help and make sure that the top of legs are flush with the Top
Frame (A).
Parts Required Qty Tools Required
EL –Left Side Leg (1) Allen Wrench
ER –Right Side Leg (1)
(2) - 5/8” Bolt (10)
(4)- 1 1/4” Bolt (4)
To Next Page
