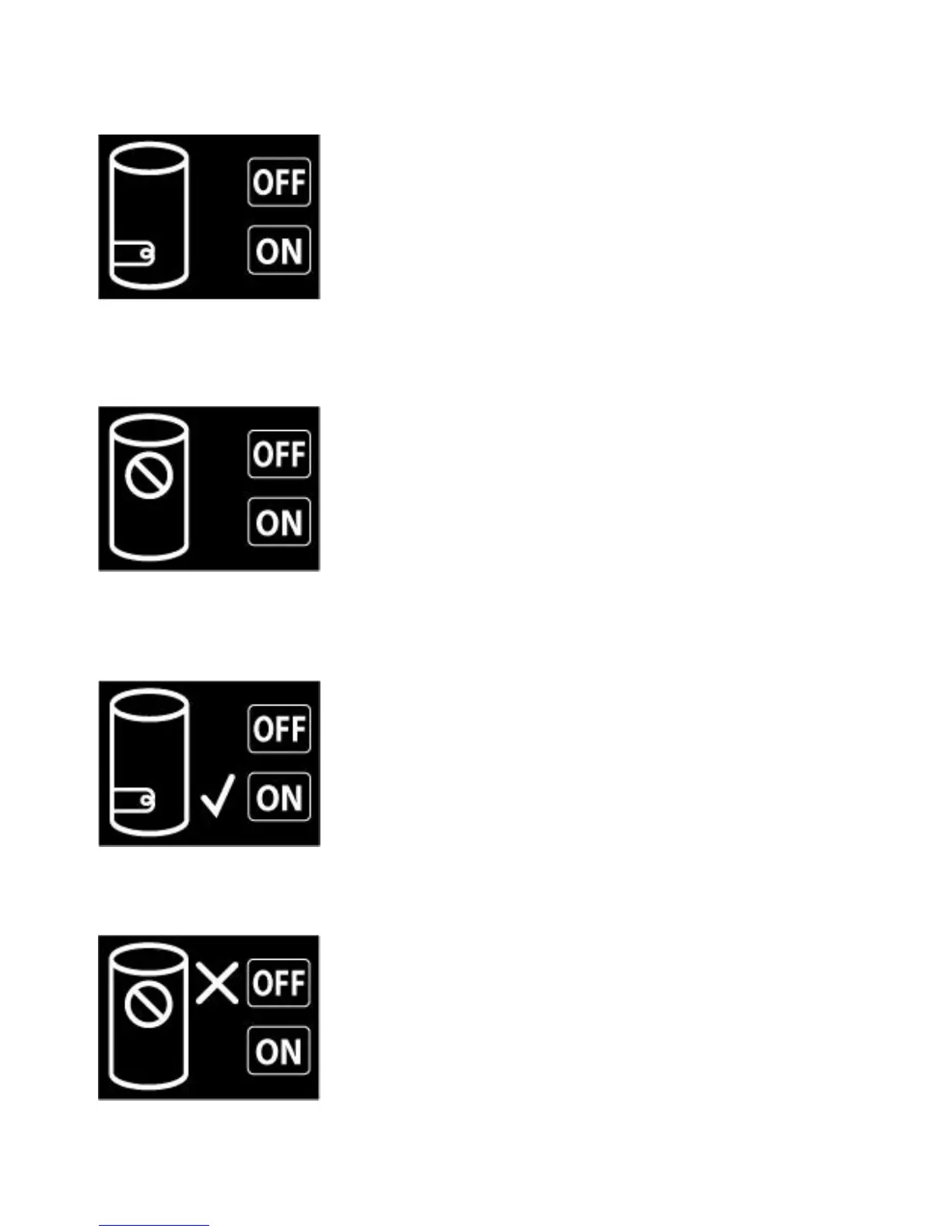

Energy Controller display/information panel
Off-peak Mode
Water heater is not being controlled by the EC.
Green element, SOLID - water heater has full power
available but is not currently heating.
Green Element, FLASHING – water heater is heating.
Peak Mode
Water Heater is being controlled by the EC.
Red Crossout – Controlled elements do not have
power available for heating.
Which elements are being controlled depends on the
water heater and EC wiring.
Override Mode
Press ON to enter Override Mode. This cannot be cancelled, but will time out.
Green check will be visible.
Green element, SOLID - water heater is not heating.
Green element, FLASHING – water heater is heating.
Vacation Mode
Press OFF to enter Vacation Mode. Cancel Vacation Mode by pressing ON.
Red X and red Crossout will be visible.
Controlled elements will not have power available for
heating until Vacation Mode is canceled by pressing
ON. If Override Mode is desired after canceling
Vacation Mode, press ON again.
