QUICK INSTALLATION GUIDE
PREPARATION ¨
Take the following 4 items into consideration when installing the projector .
1) Distance between the projector back and the wall (W1)
2) Heights: image width (height) (H1), height between the bottom of the image and the
desk (H2), height of the desk (H3), and the recommended height of the wall (H4)
3) Surface for placing the projector You can place the projector on almost any sturdy, flat
and level surface (here a desk e.g.), to project an image. Dimensions of the desk: -
Mobile desk: W2, H3, and L2 - Immobile desk: W2, H3, L2 and W1 (need to leave enough
space to move the device on the desk)
4) Image of the projection The wall for the projection should be larger than the area of
your desired image size. Wall area: length (L3, ≥L1) x width (H4, ≥H1 + H2 + H3) in the
diagram.

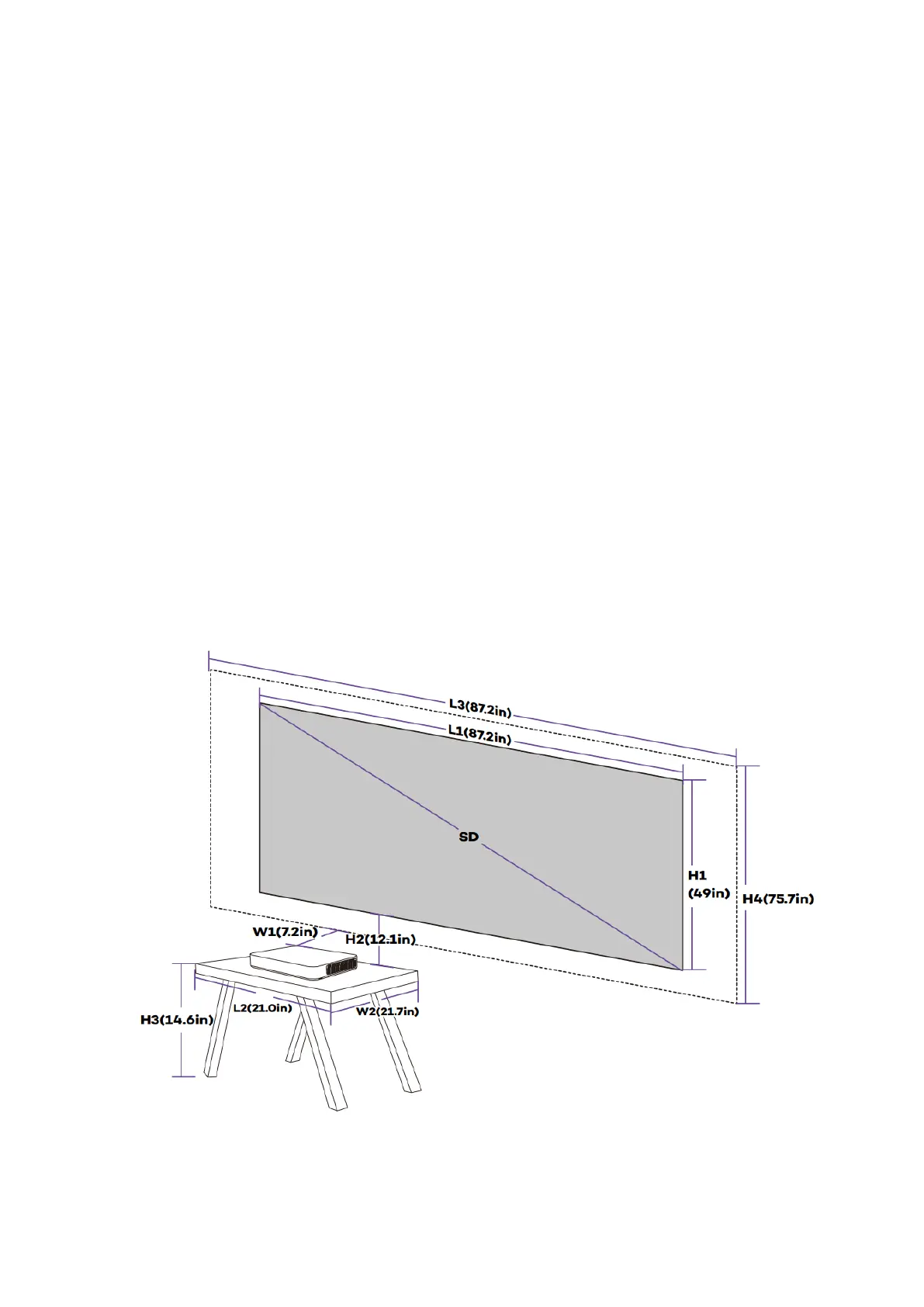

Parameters for Projection (100'' for example
