Vax Rapide Spring V-021 - Page 2

Fig.1/2

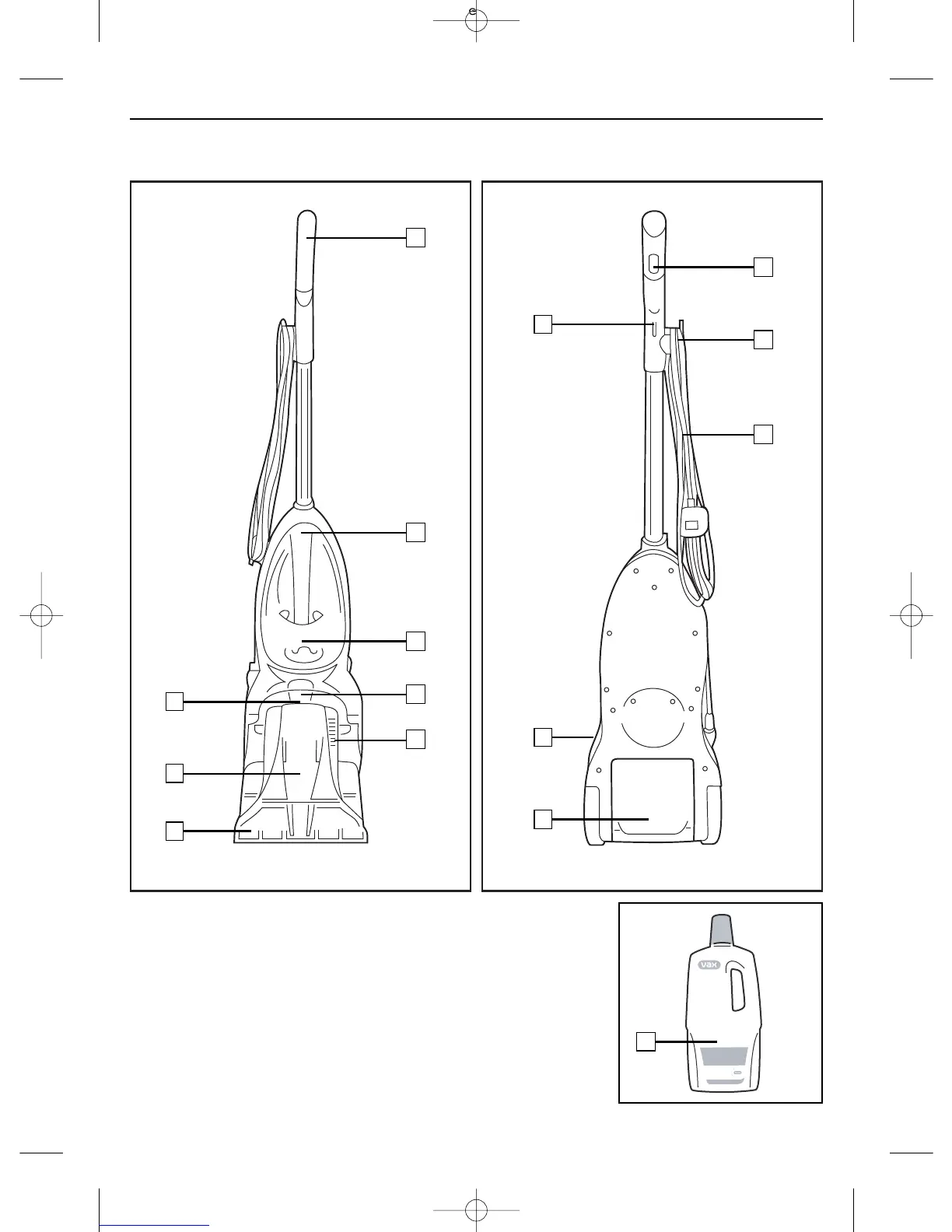

1. Diagram
Parts Overview
6
2
1
9
11
12
3
7
10
13
14
8
5
2
1. Handle
2. Clean Water Tank Release
Button
3. Clean Water Tank
4.
Dirty Water Tank Latch
5. Dirty Water Tank Handle
6.
Exhaust Filter
7.
Brushbar
8. Dirty Water Tank
9. Solution Release Trigger
10. Power Cord Tidy
11.
Power Cord Holder
12. Power Cord
13.
Power Switch
14. Handle Release Pedal
15.
Bottle of Spring Clean
4
Fig.1/1
AAA
ANTI
ALLERGEN
ADDITIVE
spring
carpet cleaner
INCLUDES
clean
15
Fig.1/3
