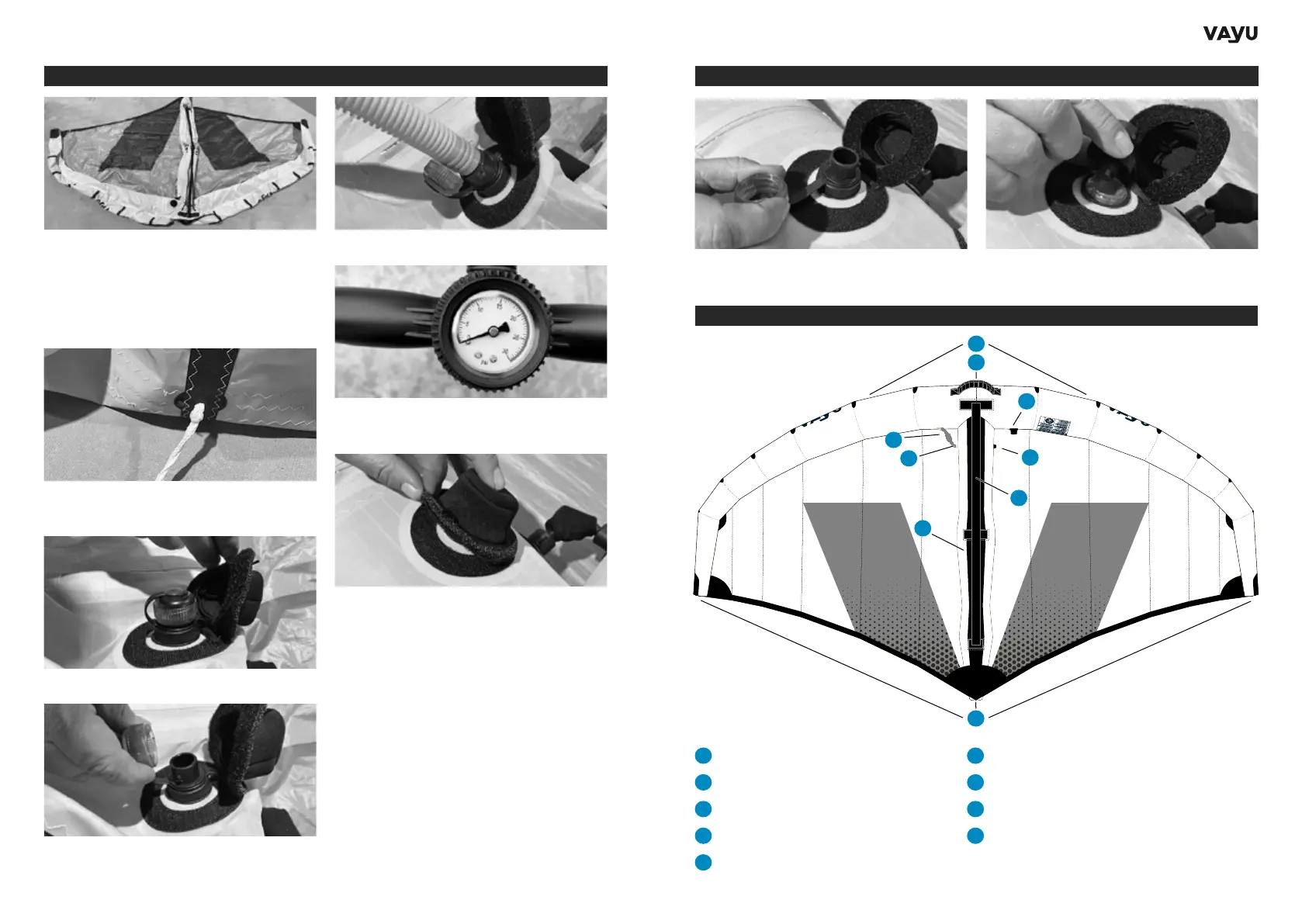

WING MANUAL | USER GUIDE
INFLATING THE WING DEFLATING THE WING
STEP 1: Lay the wing down on a surface,
free of hard or sharp objects, as they could
damage it. Turn the wing with the strut
facing up. Make sure the leading edge is
facing towards the wind.
STEP 1: Open the neopren cover and turn
off the cap.
ASSEMBLY DIAGRAM
UNIT 3.5
2
4
6
5
7
8
9
1
LEADING EDGE
2
HANDLES
3
PUMPS/WRIST LEASH LOOP
4
VALVE
5
HOSE
6
SQUEEZE CLAMP
7
SURE LOCK: INFLAGE/DEFLATE
8
STRUT
9
BLADDER LOCK
STEP 3: Open the neopren valve cover.
STEP 4: Turn the cap to open the valve.
STEP 5: Connect the hose to the valve.
STEP 6: Use a pump with gauge, inate
the kite to the recommended 6 psi.
STEP 7: Remove the hose from the valve
and tighten up the cap by turning it clock-
wise to the closed position and close the
neopren cover.
STEP 2: Attach the pump leash to the le-
ash connection point on the leading edge.
STEP 2: Unscrew the valve.
1
3
