VDO MODULAR TACHOGRAPH MTCO 1324 User Manual

Technical Information
Measuring range 125 km/h
Operating temperature -25 … +70°C
Operating voltage 24 V
Pulse range 2,400 to 25,000 pulses/km
Inputs / outputs v-sensor, v-pulse, programming
and instrument interface, 4 pulses/m
Accuracy Speed ± 3 km/h, distance ± 1%,
time ± 5 sec/day
EMC RL 95 / 94 / EC ISO 7637
Housing Steel, galvanised
Weight ~ 1,350 g
Additional special GGVS (German Dangerous Goods
options Ordinance Road), 12 volts,
3300 rpm, CAN interface for instrument and vehicle,
diagnostics interface via CAN (diagnostics/CAN
interface based on ISO 16844), illuminated operating
keys, dimmable display, measuring ranges
100/140/180 km/h, additional recording, info inter-
face, stand-alone version with digital speed indication
Mounting frame A mounting frame conforming to ISO 7736 is required
for installation

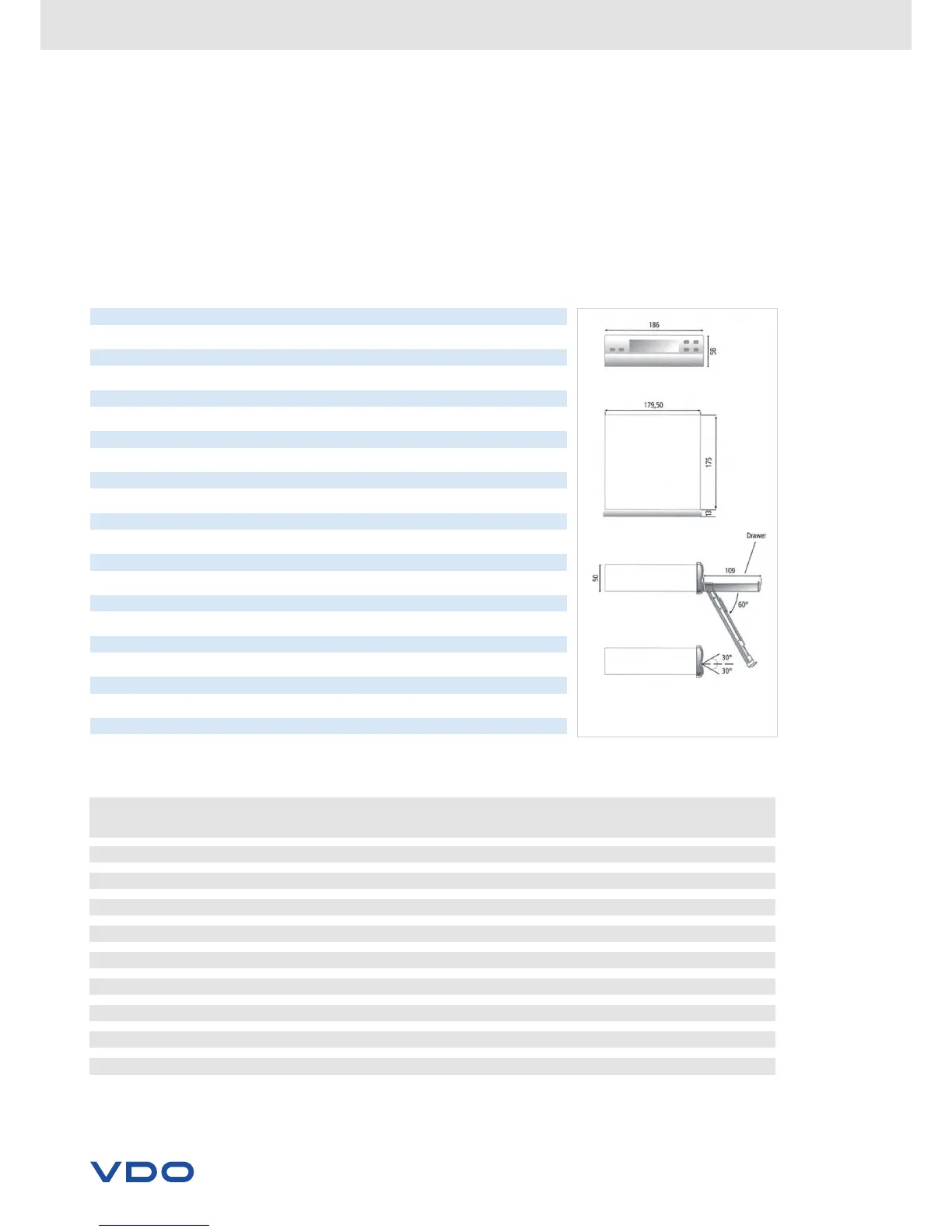

Dimensions for installation
(in mm):
Optimum viewing angle:
+/- 30° from driver´s line of sight
VDO – A Trademark of the Continental Corporation09/2008 | A2C59512776 | We reserve the right to make changes in availability as well as technical changes without prior notice.
Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany
E-mail: tachograph@vdo.com | www.vdo.com
Modular Tachograph
MTCO 1324 (standard version)
Functional overview
Function MTCO Recording Display via Data via optional
displays chart E-Tacho 1323 CAN interface
Road speed ° 3) • • •
Date • 1) - •
Time • 2) ° •
Odometer • 1) • •
Trip odometer - 2) ° •
Driving, working and rest times • - - •
Events/faults • • • •
Additional stylus - ° - -
Engine speed - ° - •
• Standard ° option - not planned 1) manual 2) graphical 3) excluding date display
