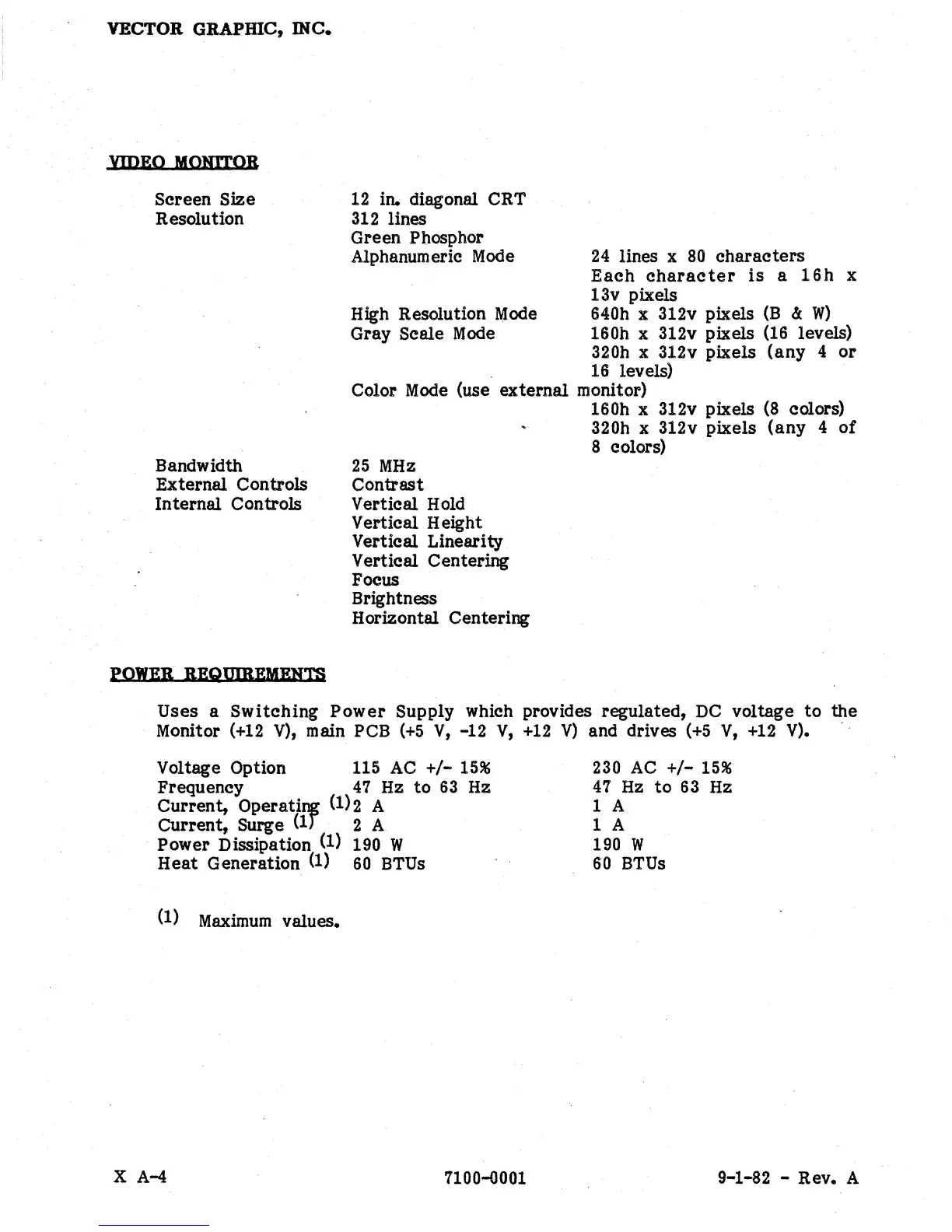

VECTOR GRAPHIC, INC.
ymEO MONITOR
Screen Size
Resolution
12
in. diagonal CRT
312 lines
Green Phosphor
Alphanumeric Mode
High Resolution
Mode
Gray Scale Mode
24 lines x 80 characters
Each character is a 16h x
l3v pixels
640h x 312v pixels (B & W)
160h x 312v pixels (16 levels)
320h x 312v pixels (any 4 or
16 levels)
Color Mode (use external monitor)
Bandwidth
External Controls
Internal Controls
POWER REQUIREMENTS
25 MHz
Contrast
Vertical Hold
Vertical Height
Vertical Linearity
Vertical Centering
Focus
Brightness
Horizontal
Centering
160h x 312v pixels (8 colors)
320h x 312v pixels (any 4 of
8 colors)
Uses a Switching Power Supply which provides regulated, DC voltage to the
Monitor (+12 V), main PCB (+5 V, -12 V, +12 V) and drives (+5 V, +12 V). '
Voltage Option 115 AC +/- 1596
Frequency 47 Hz to 63 Hz
Current, Operati~ (1) 2 A
Current, Surge (1) 2 A
Power Dissipation (1) 190 W
Heat Generation (1) 60 BTUs
(1) Maximum values.
X A-4
7100-0001
230 AC +/- 1596
47 Hz to 63 Hz
1 A
1 A
190 W
60 BTUs
9-1-82 -
Rev. A
