AC/DC Recharge Adapter DC/DC Recharge Adapter
4. CHARGING THE VECTORLITE USING THE AC
RECHARGE ADAPTER
NOTE: This unit is shipped in a partially charged state. Initially charge unit using the
AC charger. To check the battery level, press the battery status pushbutton
(Figure 2). Charge until battery status displays green LED lights when the
battery status display pushbutton is pressed. Charge after each use. (See
Figure 3A)
IMPORTANT: DO NOT TURN ON ANY LAMPS OR OPERATE ANY DC APPLI-
ANCES THROUGH THE SPOTLIGHTS ACCESSORY OUTLET WHEN
THE AC/DC RECHARGE ADAPTER IS CHARGING THE UNIT.
1. Make sure all lamps and connected appliances are turned OFF.
2. Locate the recharge port on the rear of the spotlight (see Figure 2).
3. Connect the AC charger to a 110 VAC, 60 Hz power source.
4. Plug the AC charger’s barrel connecter into the AC recharge port.
5. Recharge for 10 hours maximum or until the green LED lights when the battery
status display pushbutton is pressed.
6. After recharge, disconnect the adapter from the external charging source then dis-
connect barrel connector from the recharge port.
7. After AC recharge, wait 5 minutes before using spotlight
.
5. CHARGING AND POWERING THE VECTORLITE
USING THE DC RECHARGE ADAPTER
The VEC120 can be simultaneously charged and operated from a12 volt DC source.
Make sure the 12 volt source can supply at least 15 amperes of current if the spot-
light is to be operated while the batteries are being charged.
To check the battery level, press the battery status pushbutton (Figure 2). Charge until
battery status display’s green LED lights when the battery status display pushbutton is
pressed. Charge after each use. (See Figure 3B).
1. Locate the DC recharge port on the rear of the spotlight (see Figure 2).

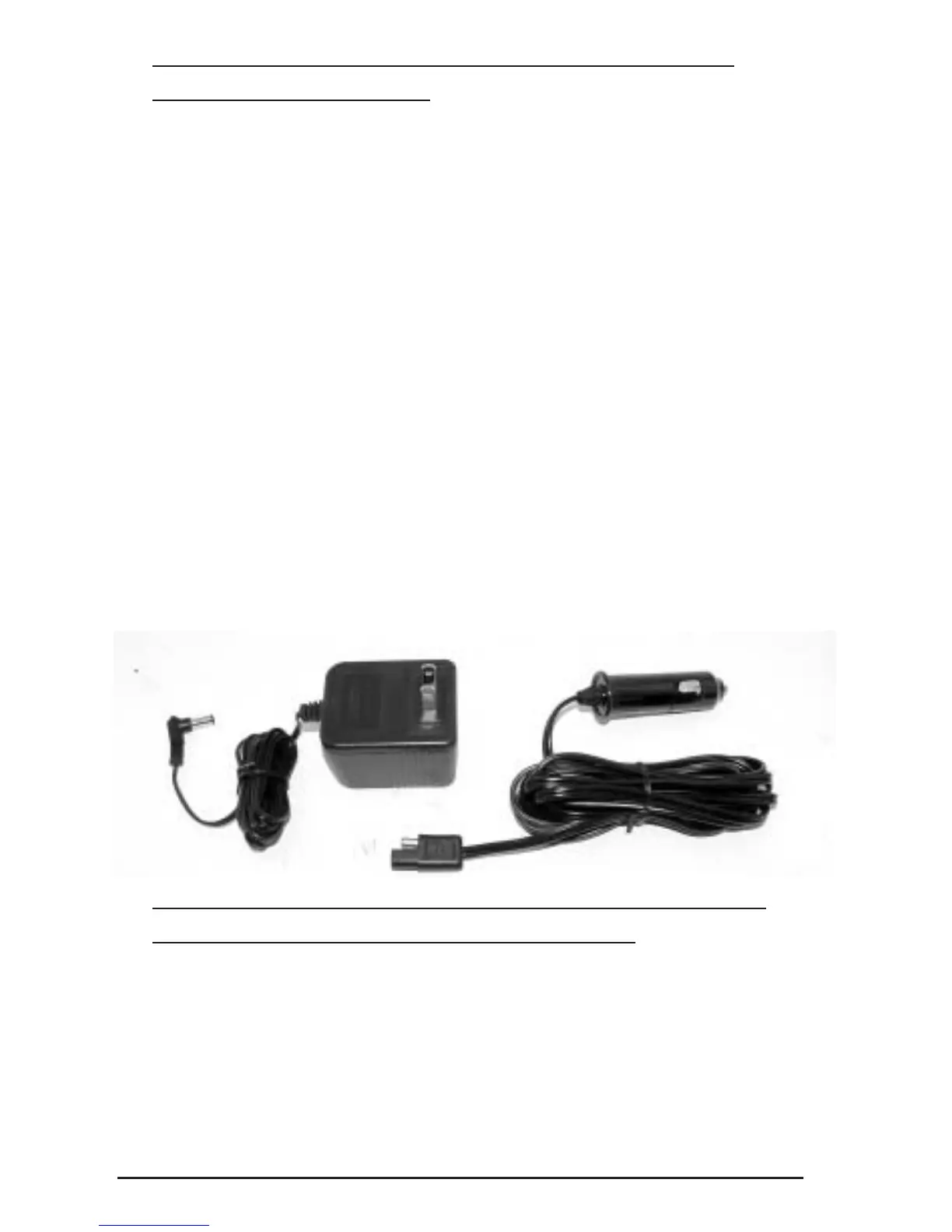

Figure 3A
Figure 3B
