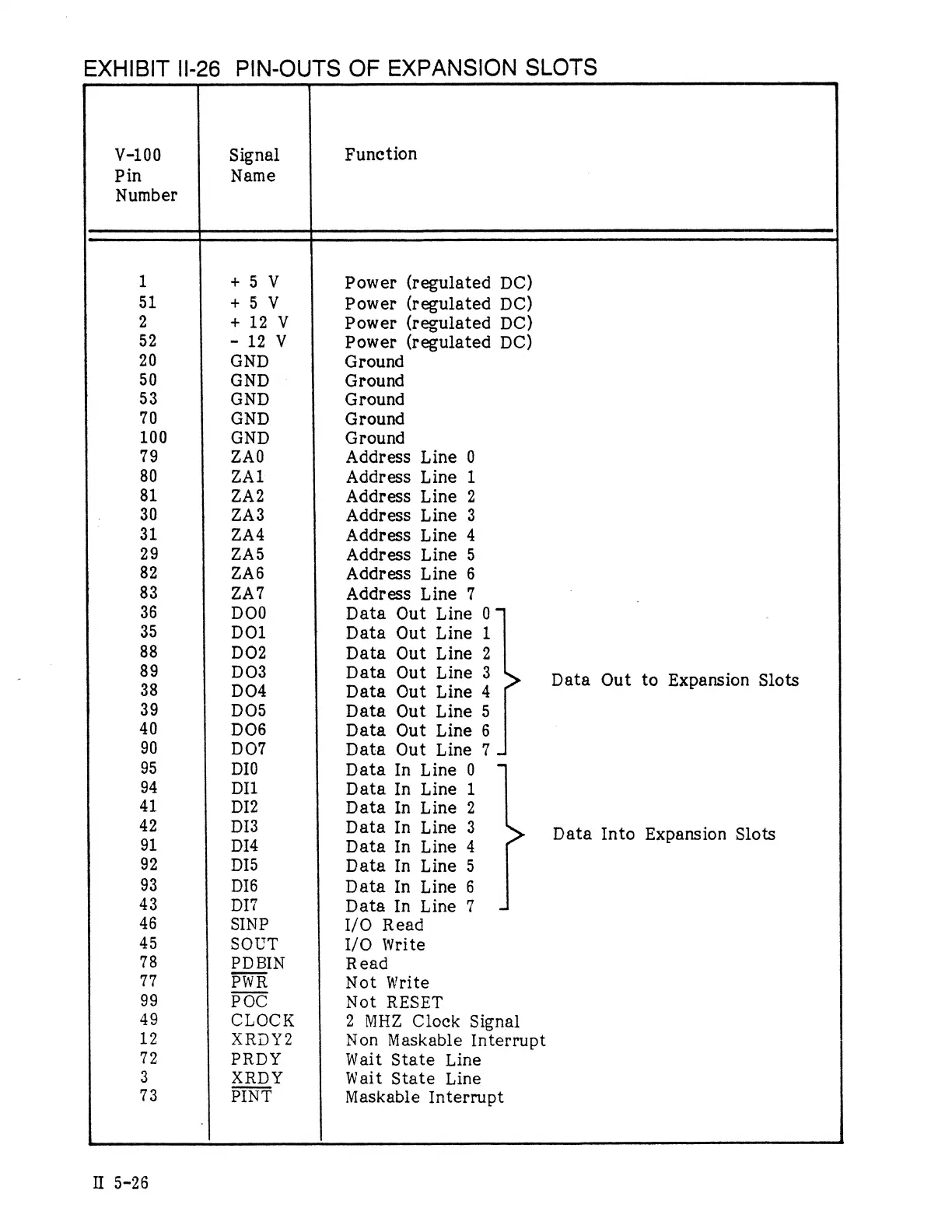

EXHIBIT [I-26 PIN-OUTS OF EXPANSION SLOTS
V-100 Signal Function
Pin Name
Number
1 +5YV Power (regulated DC)
51 + 5V Power (regulated DC)
2 + 12V Power (regulated DC)
52 - 12V Power (regulated DC)
20 GND Ground
50 GND Ground
53 GND Ground
70 GND Ground
100 GND Ground
79 ZAO Address Line 0
80 ZAl Address Line 1
81 ZA2 Address Line 2
30 ZA3 Address Line 3
31 ZA4 Address Line 4
29 ZAS Address Line 5
82 ZAb Address Line 6
83 ZAT Address Line 7
36 DOO Data Out Line 07
35 DO1 Data QOut Line 1
88 DO2 Data Out Line 2
89 DO3 Data Out Line 3 .
2g DO Data Out Line 4 > Data Out to Expansion Slots
39 D05 Data QOut Line 5
40 DO6 Data Out Line 6
90 DOT7 Data Out Line 7 _
g5 DIO Data In Line 0 T
94 DI1 Data In Line 1
41 DI2 Data In Line 2
42 D13 Data In Line 3 5 Data Into Expansion Slots
91 D14 Data In Line 4
92 DI5 Data In Line 5
93 DI6 Data In Line 6
43 DI7 Date In Line 7 -
46 SINP I/0 Read
45 SOUT I/O Write
78 PDBIN Read
77 PWR Not Write
99 POC Not RESET
49 CLOCK 2 MHZ Clock Signal
12 XRDY?2 Non Maskable Interrupt
72 PRDY Wait State Line
3 XRDY Wait State Line
73 PINT Maskable Interrupt
