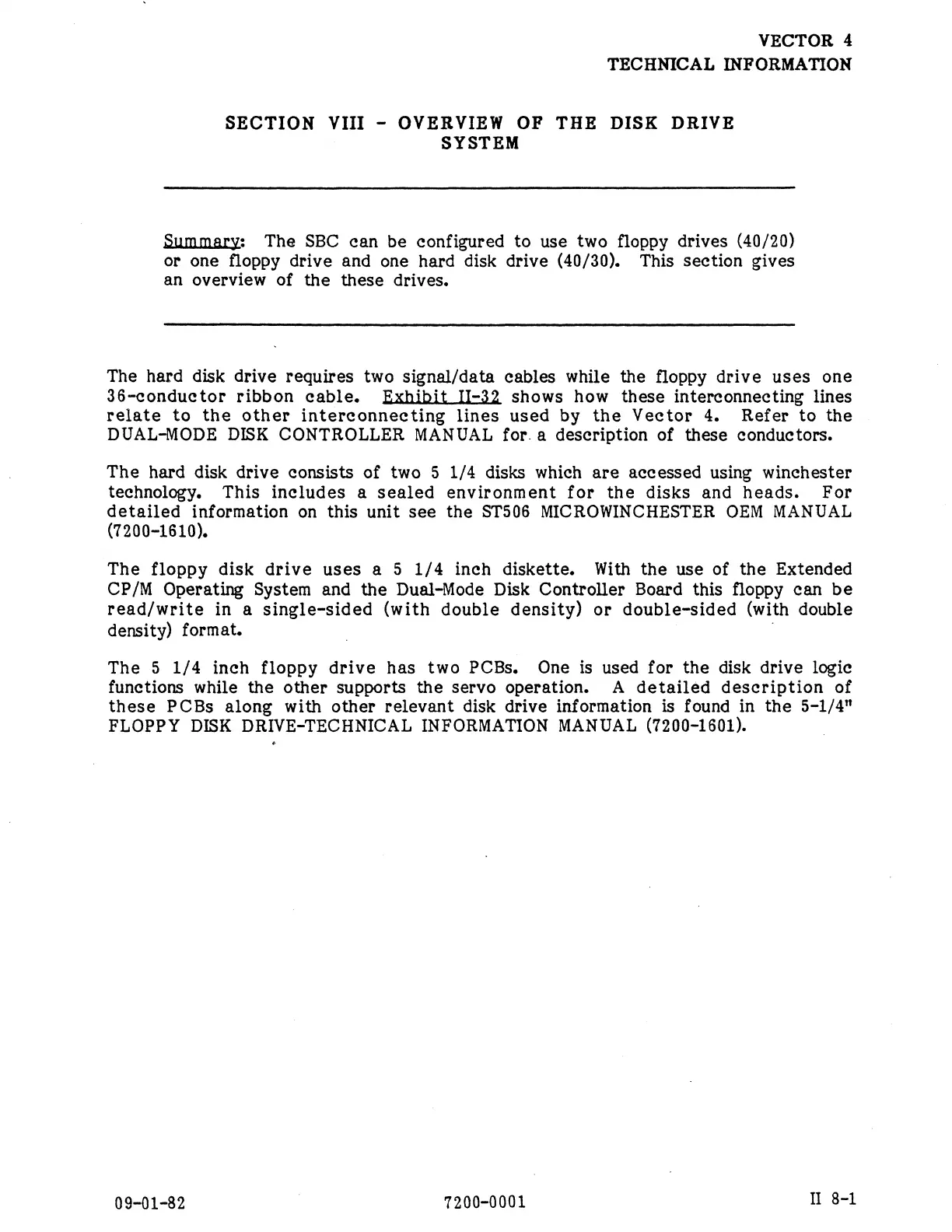

VECTOR
4
TECHNICAL
INFORMATION
SECTION
VIII
-
OVERVIEW
OF
THE
DISK
DRIVE
|
SYSTEM
Summary:
The
SBC
can
be
configured
to
use
two
floppy
drives
(40/20)
or
one
floppy
drive
and
one
hard
disk
drive (40/30).
This
section
gives
an
overview
of
the
these
drives.
The
hard
disk
drive
requires
two
signal/data
cables
while
the
floppy
drive
uses
one
J6-conductor
ribbon
cable.
Exhibit
II-32
shows
how
these
interconnecting
lines
relate
to
the
other
interconnecting
lines
used
by
the
Vector
4.
Refer
to
the
DUAL-MODE
DISK
CONTROLLER
MANUAL
for.
a
description
of
these
conductors.
The
hard
disk
drive
consists
of
two
5
1/4
disks
which
are
accessed
using
winchester
technology.
This
includes
a
sealed
environment
for
the
disks
and
heads.
For
detailed
information
on
this
unit
see
the
ST506
MICROWINCHESTER
OEM
MANUAL
(7200-1610).
The
floppy
disk
drive
uses
a
5
1/4
inch
diskette.
With
the
use
of
the
Extended
CP/M
Operating
System
and
the
Dual-Mode
Disk
Controller
Board
this
floppy
can
be
read/write
in
a
single-sided
(with
double
density)
or
double-sided
(with
double
density)
format.
|
-
The
5
1/4
inch
floppy
drive
has
two
PCBs.
One
is
used
for
the
disk
drive
logic
functions
while
the
other
supports
the
servo
operation.
A
detailed
description
of
these
PCBs
along
with
other
relevant
disk
drive
information
is
found
in
the
5-1/4"
FLOPPY
DISK
DRIVE-TECHNICAL
INFORMATION
MANUAL
(7200-1601).
09-01-32
|
7200-0001
II8-1
