VECTOR
GRAPHIC,
INC.

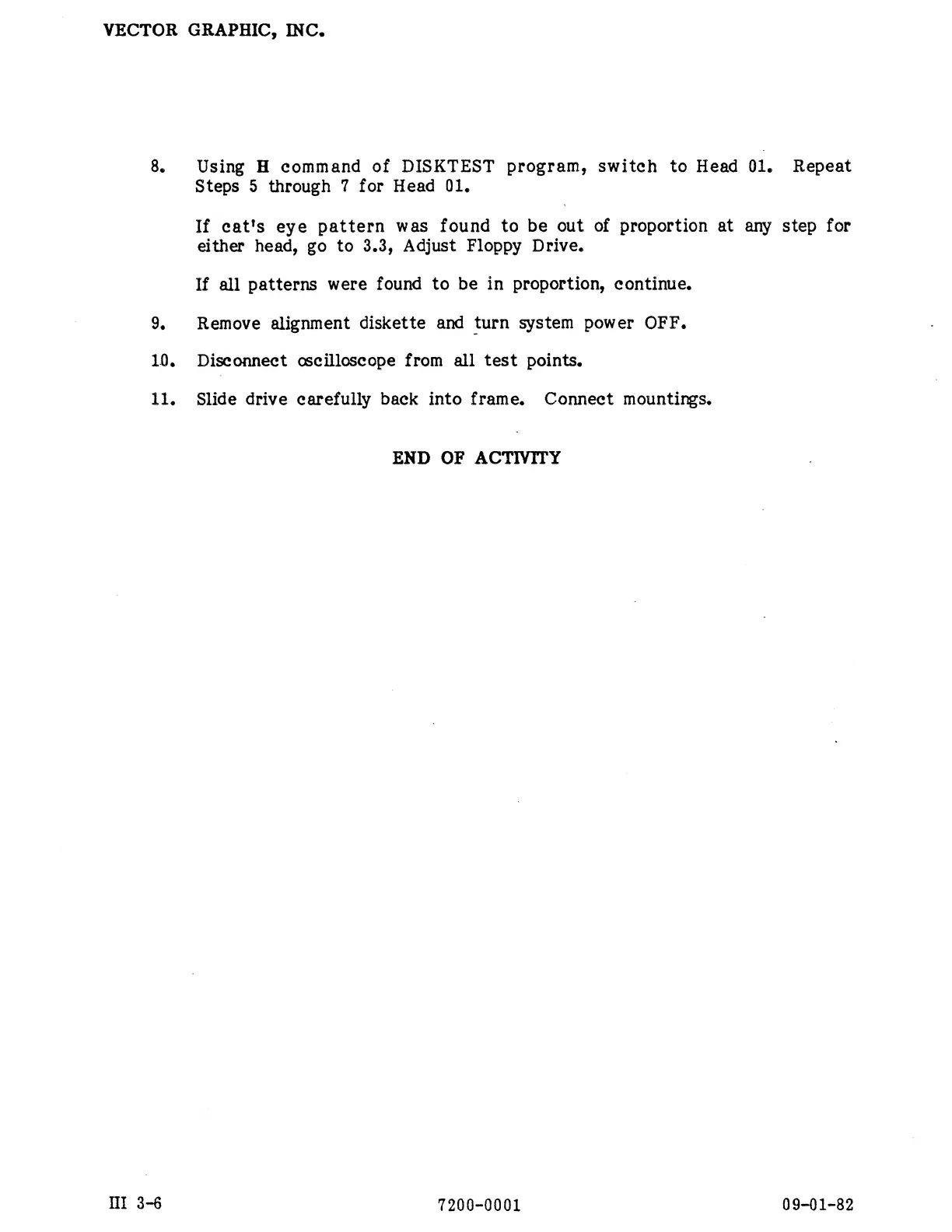

8.
Using
H
command
of
DISKTEST
program,
switch
to
Head
Oi.
Repeat
Steps
5
through
7
for
Head
01.
If
cat's
eye
pattern
was
found
to
be
out
of
proportion
at
any
step
for
either
head,
go
to
3.3,
Adjust
Floppy
Drive.
If
all
patterns
were
found
to
be
in
proportion,
continue.
9.
Remove
alignment
diskette
and
turn
system
power
OFF.
10.
Disconnect
oscilloscope
from
all
test
points.
11,
Slide
drive
carefully
back
into
frame.
Connect
mountings.
END
OF
ACTIVITY
I
3-6
7200-0001
09-01-82
