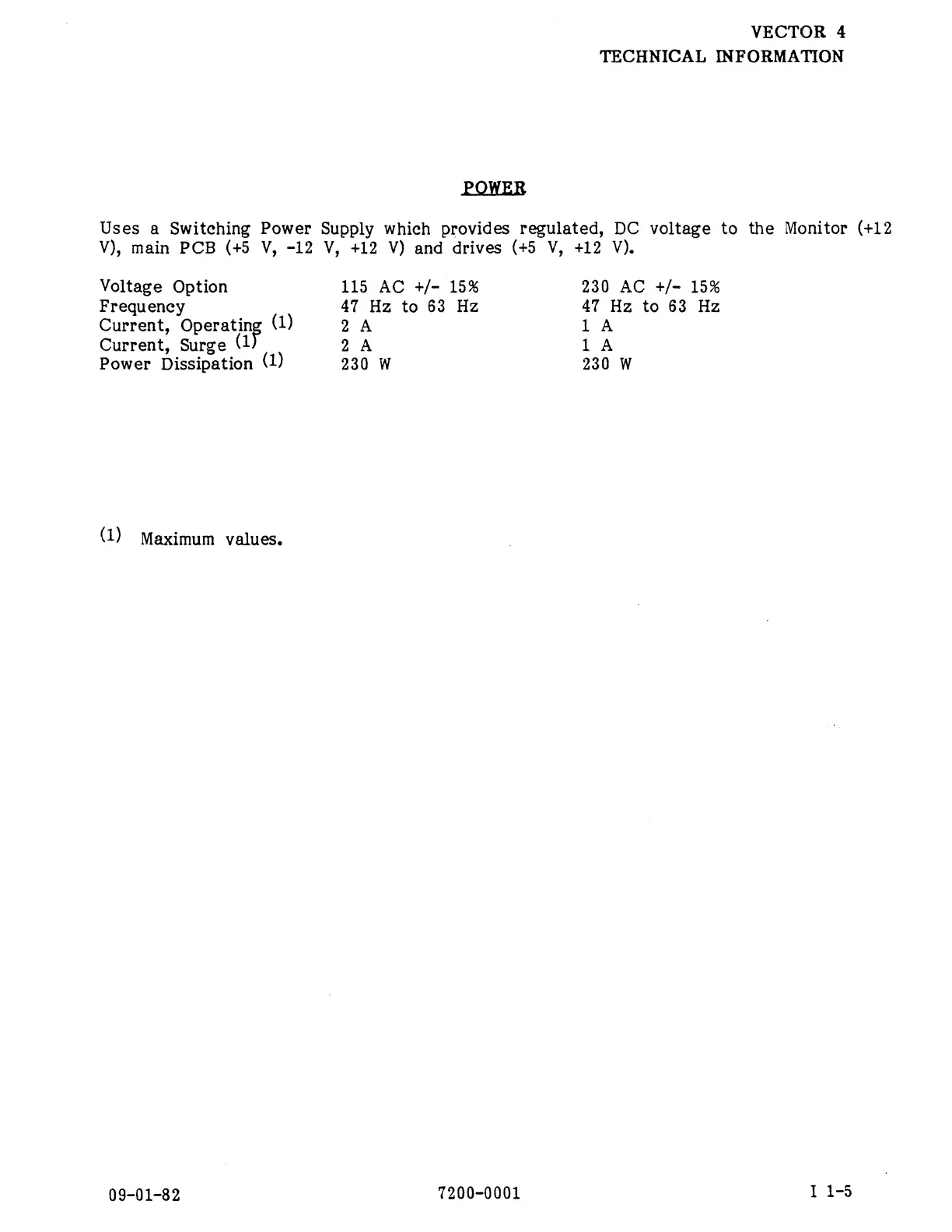

VECTOR 4
TECHNICAL INFORMATION
POWER
Uses a Switching Power Supply which provides regulated, DC voltage to the Monitor (+12
V), main PCB (+5 V, -12 V, +12 V) and drives (+5 V, +12 V).
Voltage Option 115 AC +/- 15% 230 AC +/- 15%
Frequency 47 Hz to 63 Hz 47 Hz to 63 Hz
Current, Operatin? (1) 2 A 1 A
Current, Surge (1 2 A 1 A
Power Dissipation (1) 230 W 230 W
(1) Maximum values.
09-01-82
7200-0001
I
1-5
