VECTOR 4
TECHNICAL INFORMATION

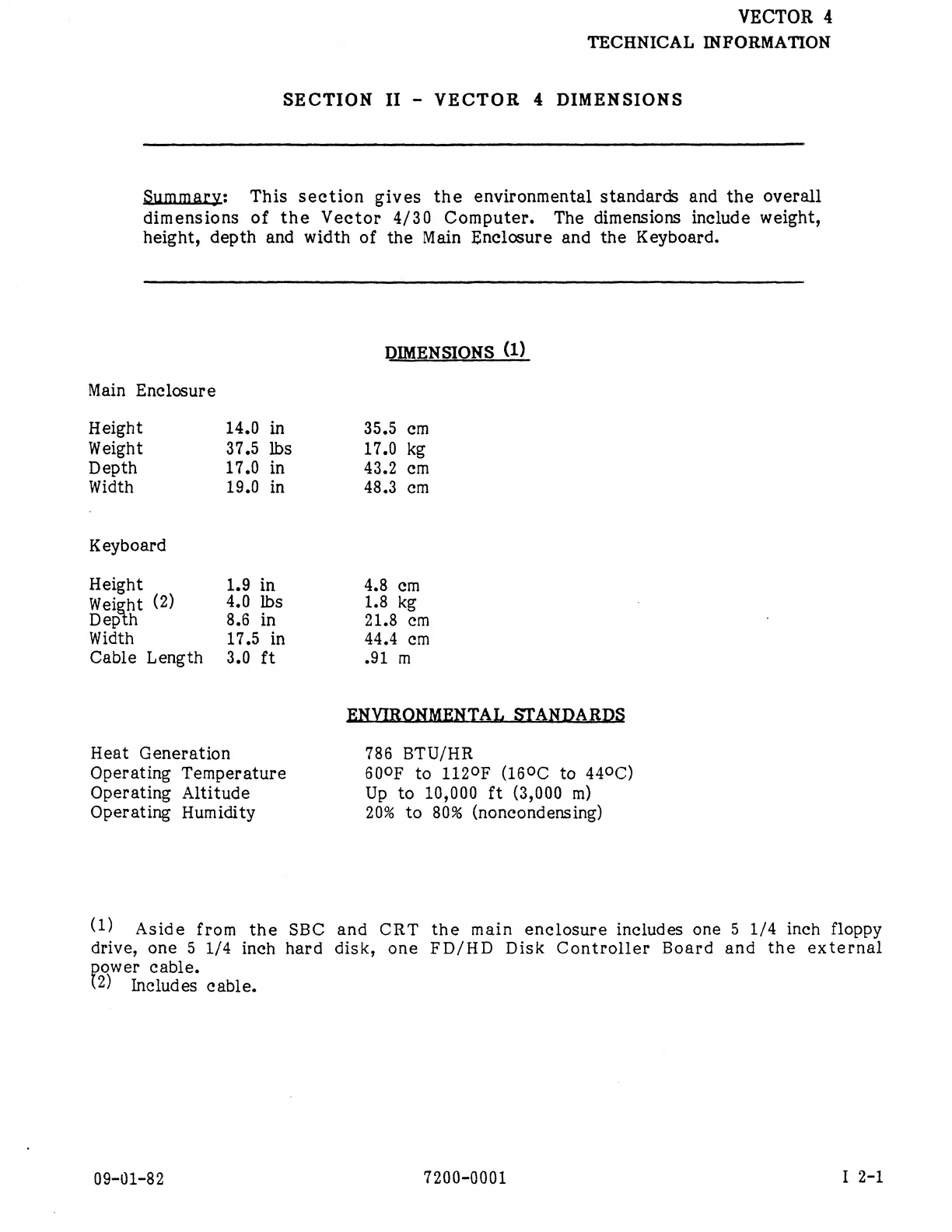

SECTION II - VECTOR 4 DIMENSIONS
Summary: This section gives the environmental standards and the overall
dimensions of the Vector 4/30 Computer. The dimensions include weight,
height, depth and width of the Main Enclosure and the Keyboard.
Main Enclosure
Height
Weight
Depth
Width
Keyboard
Height
Weigtht (2)
Depth
Width
Cable Length
14.0 in
37.5 1bs
17.0 in
19.0 in
1.9 in
4,0 lbs
8.6 in
17.5 1In
3.0 ft
Heat Generation
Operating Temperature
Operating Altitude
Operating Humidity
DIMENSIONS (1)
39.9 ¢m
17.0 kg
43.2 cm
48.3 em
4.8 em
1.8 kg
21.8 em
44,4 cm
91 m
786 BTU/HR
A AR
60CF to 1120F (16°C to 440C)
Up to 10,000 ft (3,000 m)
20% to 80% (noncondensing)
(1) Aside from the SBC and CRT the main enclosure includes one 5 1/4 inch floppy
drive, one 5 1/4 inch hard disk, one FD/HD Disk Controller Board and the external
ower cable.
Includes cable.
