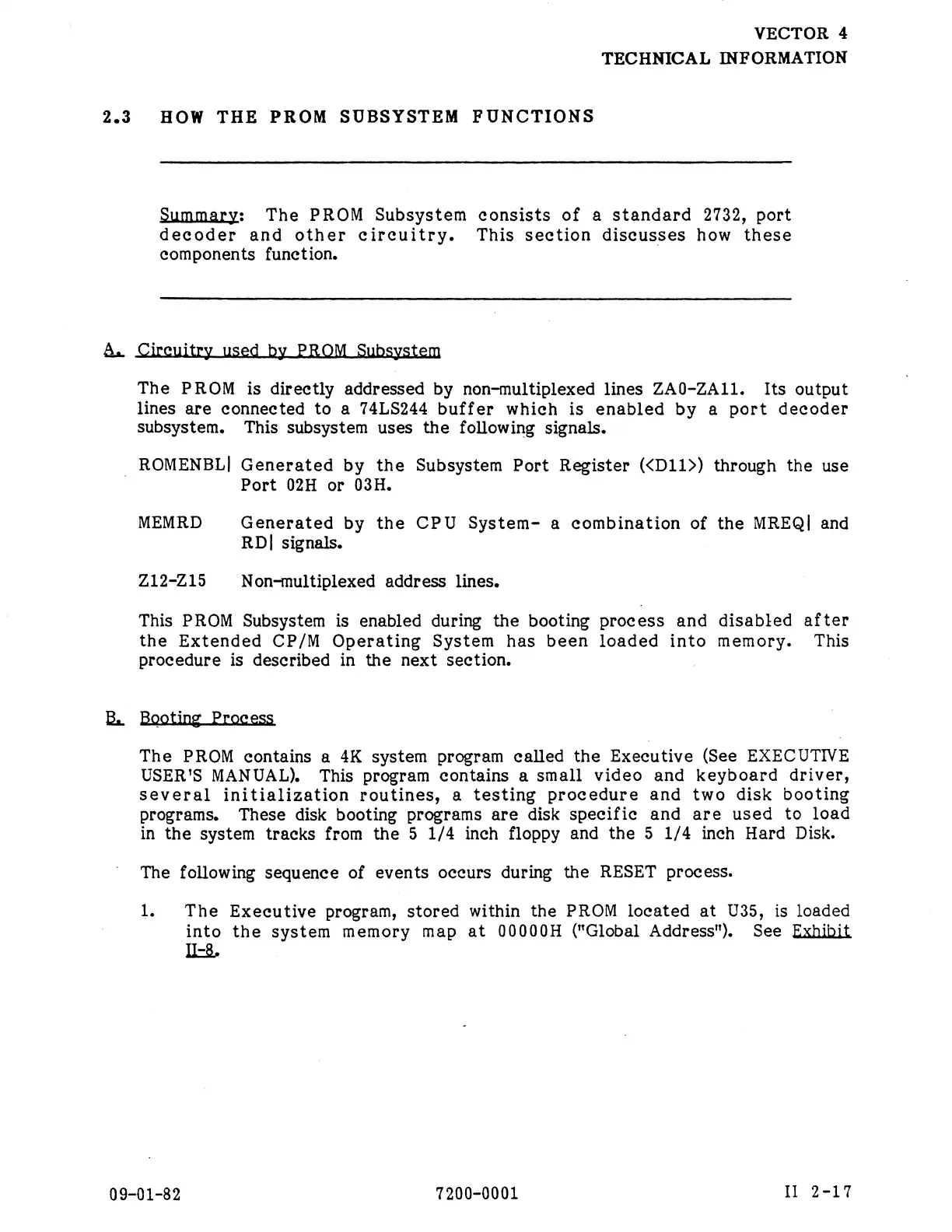

VECTOR
4
TECHNICAL
INFORMATION
2.3
HOW
THE
PROM
SUBSYSTEM
FUNCTIONS
Summary:
The
PROM
Subsystem
consists
of
a
standard
2732,
port
decoder
and
other
circuitry.
This
section
discusses
how
these
components
function.
A,
Circuitry
used
by
PROM
Subsystem
The
PROM
is
directly
addressed
by
non-multiplexed
lines
ZA0-ZA1ll.
Its
output
lines
are
connected
to
a
74LS244
buffer
which
is
enabled
by
a
port
decoder
subsystem.
This
subsystem
uses
the
following
signals.
-
ROMENBL|
Generated
by
the
Subsystem
Port
Register
(<D11>)
through
the
use
Port
02H
or
03H.
MEMRD
Generated
by
the
CPU
System-
a
combination
of
the
MREQ|
and
RD|
signals.
Z12-7215
Non-multiplexed
address
lines.
This
PROM
Subsystem
is
enabled
during
the
booting
procéss
and
disabled
after
the
Extended
CP/M
Operating
System
has
been
loaded
into
memory.
This
procedure
is
described
in
the
next
section.
|
B.
Booting
Process
The
PROM
contains
a
4K
system
program
called
the
Executive
(See
EXECUTIVE
USER'S
MANUAL).
This
program
contains
a
small
video
and
keyboard
driver,
several
initialization
routines,
a
testing
procedure
and
two
disk
booting
programs.
These
disk
booting
programs
are
disk
specific
and
are
used
to
load
in
the
system
tracks
from
the
5
1/4
inch
floppy
and
the
5
1/4
inch
Hard
Disk.
The
following
sequence
of
events occurs
during
the
RESET
process.
1.
The
Executive
program,
stored
within
the
PROM
located
at
U35,
is
locaded
into
the
system
memory
map
at
00000H
("Global
Address").
See
Exhibit
I-8.
09-01-82
7200-0001
I1
2-17
