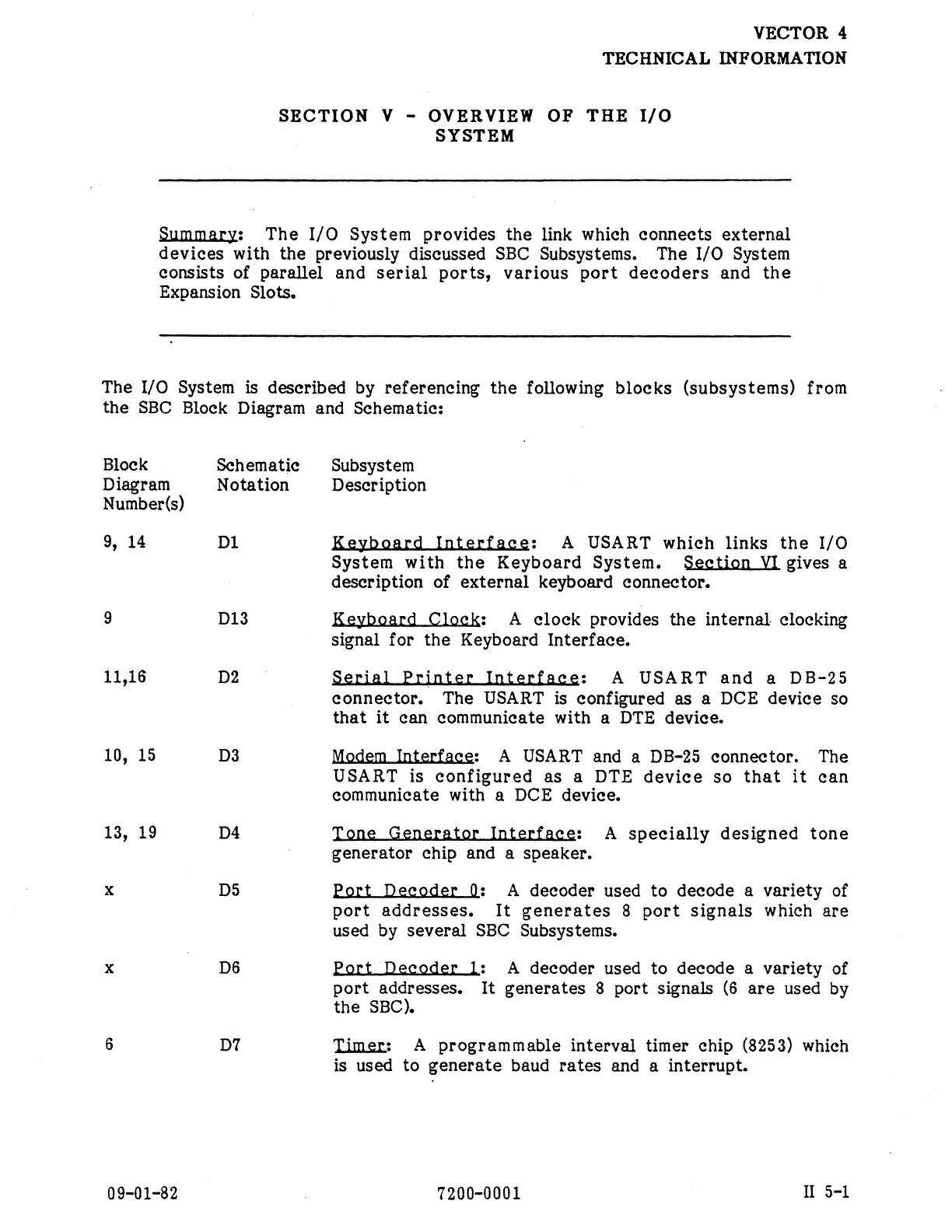

VECTOR
¢4
TECHNICAL
INFORMATION
SECTION
V
-
OVERVIEW
OF
THE
I/0
SYSTEM
Summary:
The
I/O
System
provides
the
link
which
connects
external
devices
with
the
previously
discussed
SBC
Subsystems.
The
I/O
System
consists
of
parallel
and
serial
ports,
various
port
decoders
and
the
Expansion
Slots.
The
1/O
System
is
described
by
referencing
the
following
blocks
(subsystems)
from
the
SBC
Block
Diagram
and
Schematic:
Block
Diagram
Number(s)
9,
14
11,16
10,
15
13,
19
09-01-82
Schematic
Notation
D1
D13
D2
D3
D4
D5
D6
D7
Subsystem
Description
Keyboard
Interface:
A
USART
whieh
links
the
I/0
System
with
the
Keyboard
System.
Section
VI
gives
a
description
of
external
keyboard
connector.
Keyboard
Cloek:
A
clock
provides
the
internal
clocking
signal
for
the
Keyboard
Interface.
Serial
Printer
Interface:
A
USART
and
a
DB-25
connector.
The
USART
is
configured
as
a
DCE
device
so
that
it
can
communicate
with
a
DTE
device.
Modem
Interface:
A
USART
and
a
DB-25
connector.
The
USART
is
configured
as
a
DTE
device
so
that
it
can
communicate
with
a
DCE
device.
Tone
Generator
Interface:
A
specially
designed
tone
generator
chip
and
a
speaker.
Port
Decoder
0:
A
decoder
used
to
decode
a
variety
of
port
addresses.
It
generates
8
port
signals
which
are
used
by
several
SBC
Subsystems.
Port
Decoder
1:
A
decoder
used
to
decode
a
variety
of
port
addresses.
It
generates
8
port
signals
(6
are
used
by
the
SBC).
Timer:
A
programmable
interval
timer
chip
(8253)
which
is
used
to
generate
baud
rates
and
a
interrupt.
7200-0001
|
II
5-1
