Pg.8

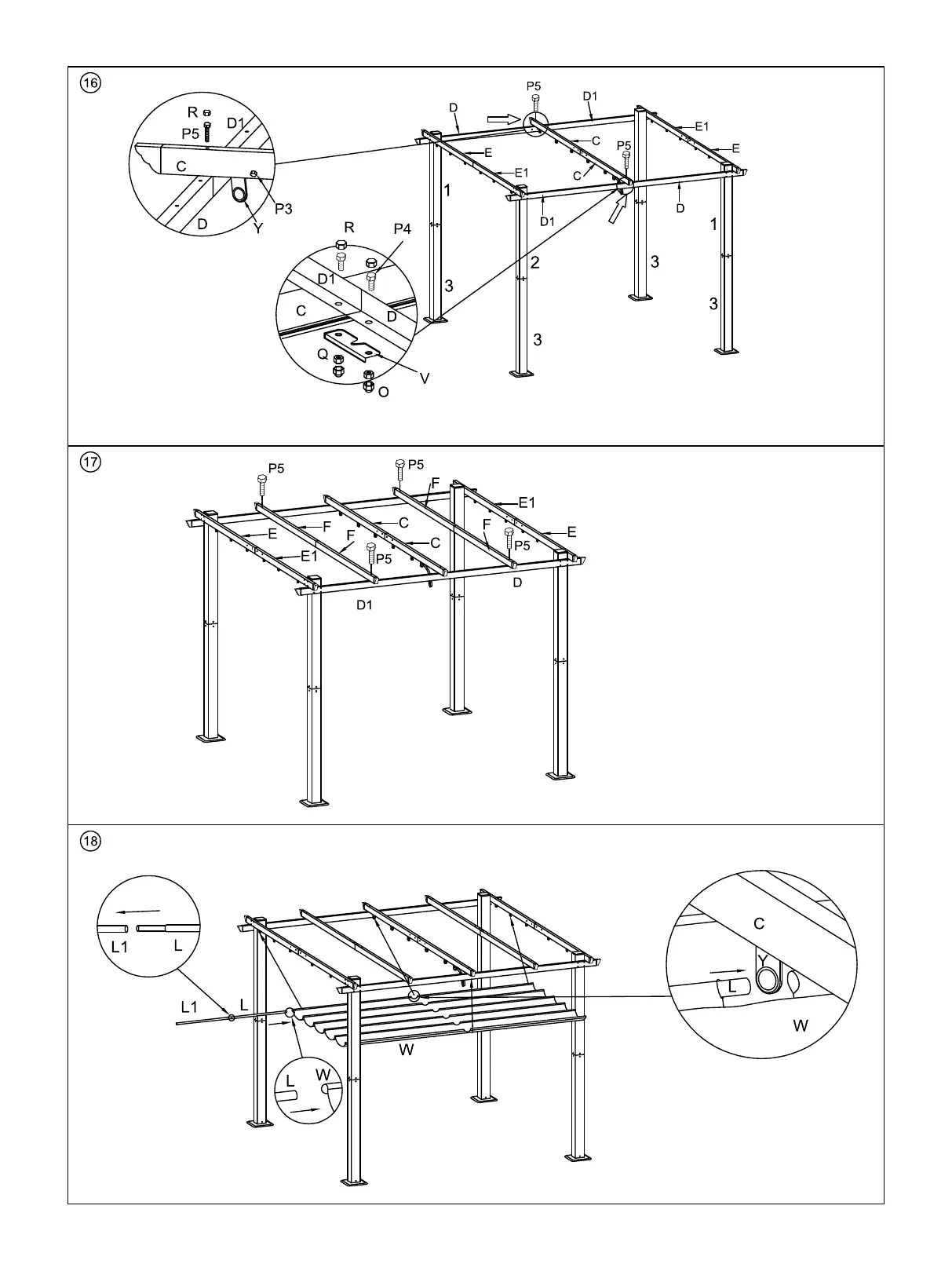

Attach assemled middle cross beam (C) to assembled
bottom cross beam (D & D1) by bolt (P5) & bolt cap (R).
Attach gripping magnet steel piece (V) into the middle of
assembled bottom cross beam (D & D1) with bolt (P4) &
nut (Q) & nut cap (O) & bolt cap (R)
Attach assembled enhanced support beam
(F) to assembled bottom cross beam (D &
D1) by bolt (P5)
Insert fabric rib 1 (L) into fabric rib 2 (L1), and
then through assembled fabric rib 1 (L) into
fabric cover (W), and through assembled
fabric rib1 (L) into the hole of glidewheel
(Y&B) which on assembled middle cross
beam (C)
To Next Page
