44
45
Owner’s Manual

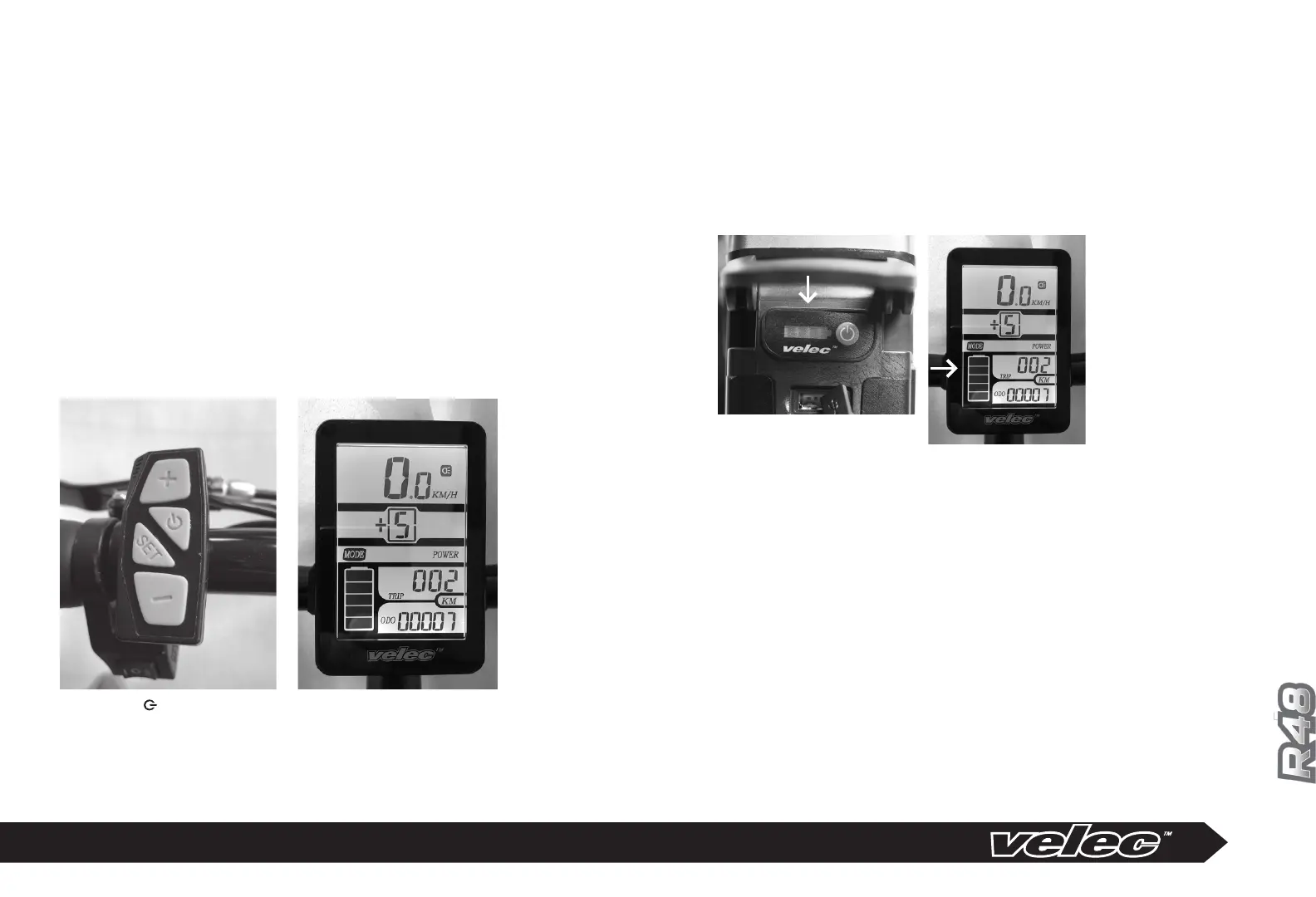

There are 4 lights on the top of the battery next to the red Button. The first
light is red and will glow only if the battery is discharged; the other 3 lights
are green and indicate the charge level. 3 lights lit indicate an approximate
100% charge, 2 lights lit indicate a level of charge of about 55% and only one
light glowing indicates a charge level of approximately 25%.
The battery’s charge level is visible on the Control Panel.
Battery Charge Level on
Color LCD Control Panel
Battery Level
MODEL R48
First, make sure that the battery is locked within the frame. To activate the
R48, press the (power switch symbol) button on the control panel on the
handlebar. The LCD panel will show Assistance mode 0. In order to use the
assistance or the throttle, select the assistance levels from 1 to 5 with the
control panel.
If you shutdown the bicycle with the (power switch symbol) on the control
panel on the left side of the handlebar or on the battery, the assistance Level
will return to 0 when you reactivate for security purpose.
Color LCD Panel with the assistance
battery button
