Owner’s Manual

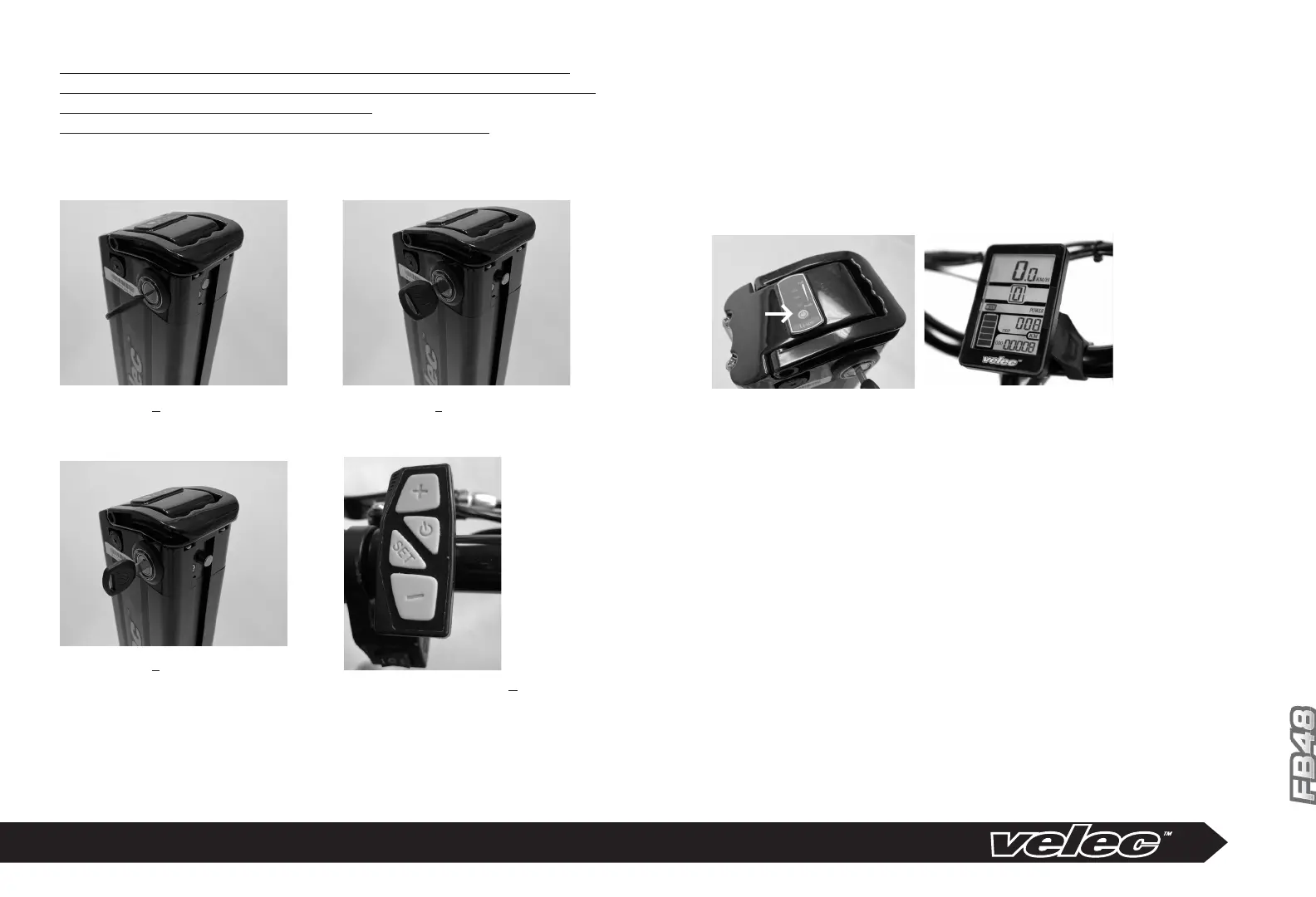

There are 3 lights on the top of the battery next to the red button. The first is
red and the other 2 lights are green. When all 3 lights are on, they indicate a
51-100% charge. When 2 lights (one red and one green) are on, they indicate
a charge of 1 to 50%. When only the red light is on, the battery is dead. For
optimal use of the battery, it would be best to recharge it when the last green
light is on.
The battery’s charge level is also visible on the LCD Control Panel.
Red button on battery
Battery Charge Level on Control Panel
Battery Level
* May differ from photograph
MODEL FB48
To turn on the FB48/48V, insert the key into the battery in position A, turn
key clockwise to position B to lock the battery to the bicycle, and turn the key
further clockwise to position C to activate the
Battery, then press the ON/OFF button on the Control Panel D.
Key at position A
Battery unlocked
Key at position C
Battery activated and locked
Key at position B
Battery locked
–/O button on Control Panel D
* May differ from photograph
