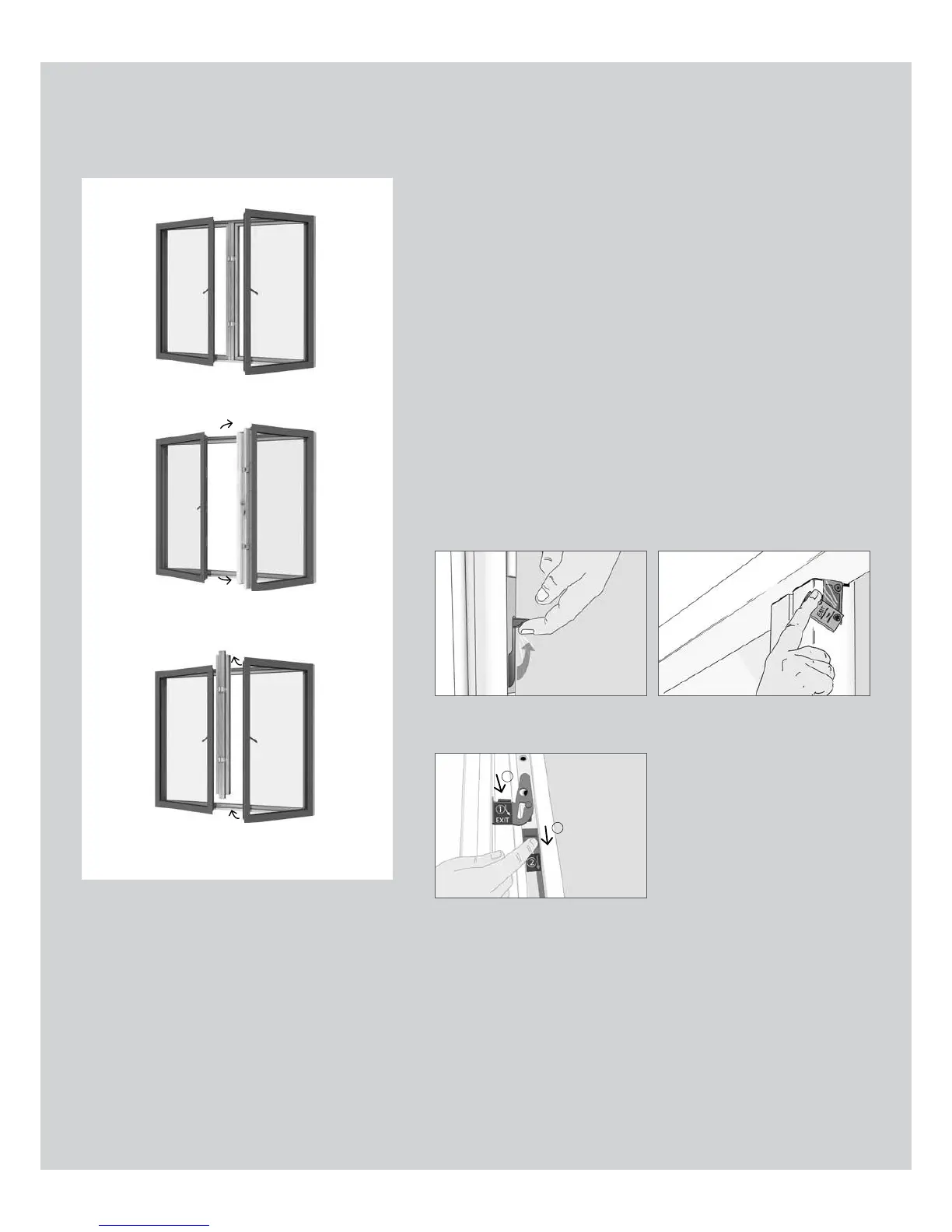

2-leaf VELFAC 200 windows and patio doors
A fixed mullion cannot be moved when both sashes are open.
The French Casement mullion is fixed to the leading edge of the Sash
2. Once Sash 1 has been opened, the mullion can be disconnected
and Sash 2 subsequently opened. The mullion will move with the sash
providing a clear opening for both sashes.
Themullionisdisconnectedbythemid-positionedushbolt(1)or
the barrel bolt (2) and Sash 2 is opened. The French casement mullion
must be re-engaged before closing Sash 1.
The removable mullion stays in the opening when the sashes are
opened. In the event of fire it can be entirely removed by opening both
sashes, loosening the barrel bolt (3) and push out the mullion .
Handle for narrow mullion (discontinued
summer 2009).
Flush bolt for French Casement mullion.
Top and bottom flush bolt for broad mul-
lion (discontinued summer 2009).
Fixed mullion
Removable (escape) mullion
French Casement mullion
Sash
2
Sash
1
1
2
3.
Barrel bolt for removable mullion.
