6
Description
Model
MS2-030 - MS2-050 MS2-75 MS2-119
Cold Water Inlet 3/4F 1F 1-1/4F
To Boiler Return 1F 1F 1-1/4F
From Boiler Supply 1F 1F 1-1/4F
T&P Valve Tapping 3/4F 3/4F 1F
Hot Water Out 3/4F 1F 1-1/4F
Drain - - 3/4F
TABLE 2.4: CONNECTION SIZE (in. NPT)
Model
Potable
Volume
(Gal.)
Dimensions in Inches Weight
A B C D E Net Full
MS2-030 30.1 33-1/8 6-1/8 10-1/2 21-1/8 --- 69 328
MS2-040 37.9 39-3/8 6-1/8 10-1/2 24-1/4 --- 82 407
MS2-050 50.6 49-3/4 6-1/8 10-1/2 26-5/8 --- 112 545
MS2-075 74.0 68-3/4 6-1/8 10-1/2 29-3/8 --- 146 777
MS2-119 111.3 62-7/8 10-1/4 12-1/2 44 48-3/8 251 1217
TABLE 2.3: PHYSICAL SPECIFICATIONS

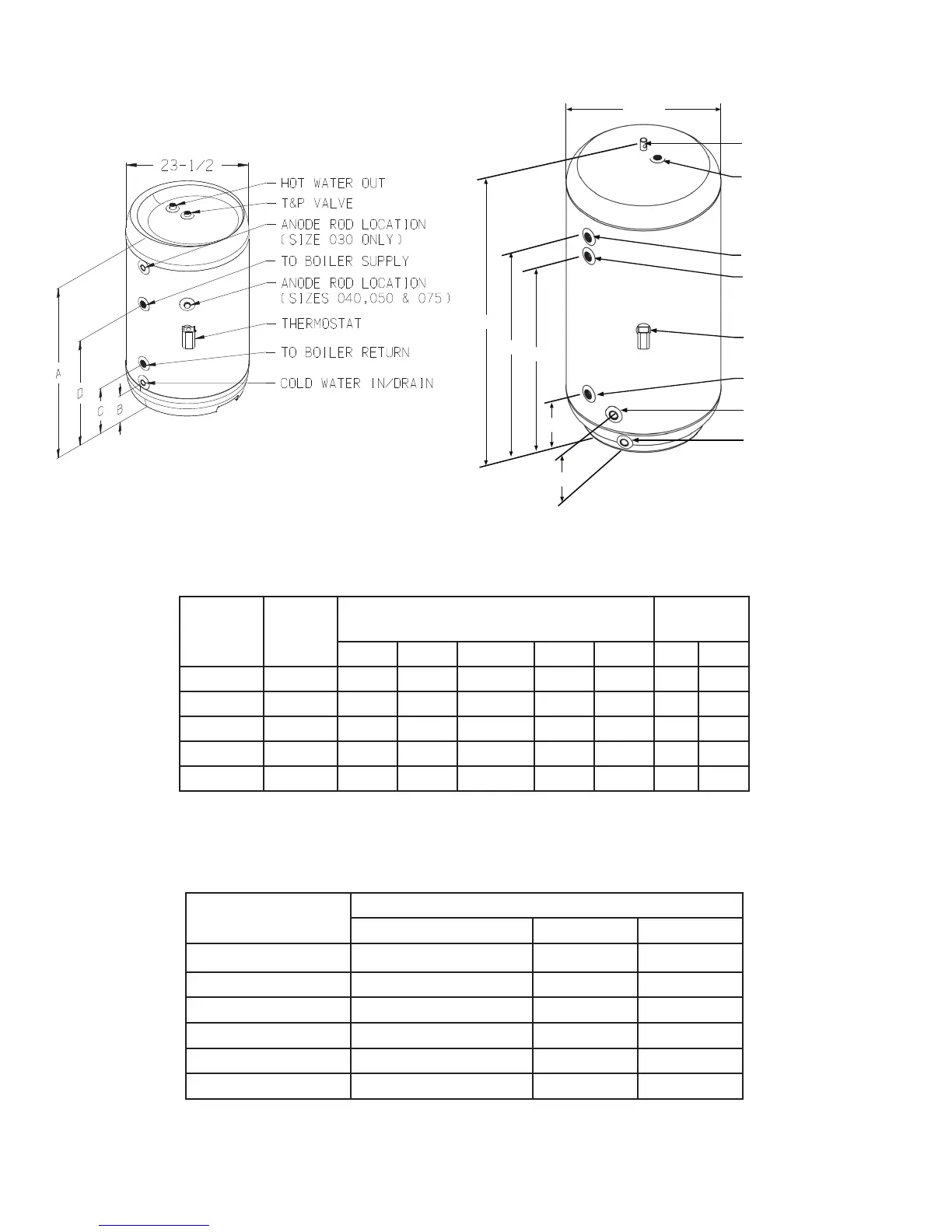

FIGURE 2.2: MEGA-STOR II INDIRECT WATER HEATER
MS2-030 THRU MS2-075
HOT WATER OUT
T & P VALVE
TO BOILER SUPPLY
THERMOSTAT
TO BOILER RETURN
COLD WATER IN
LIFTING LUG
DRAIN
30-3/4
A
E
D
C
B
MS2-119
