VentilClima VCE20 - Fancoil Unit Dimensions by Version; Wall Mounted Unit Dimensions

TECHNICAL MANUAL
range

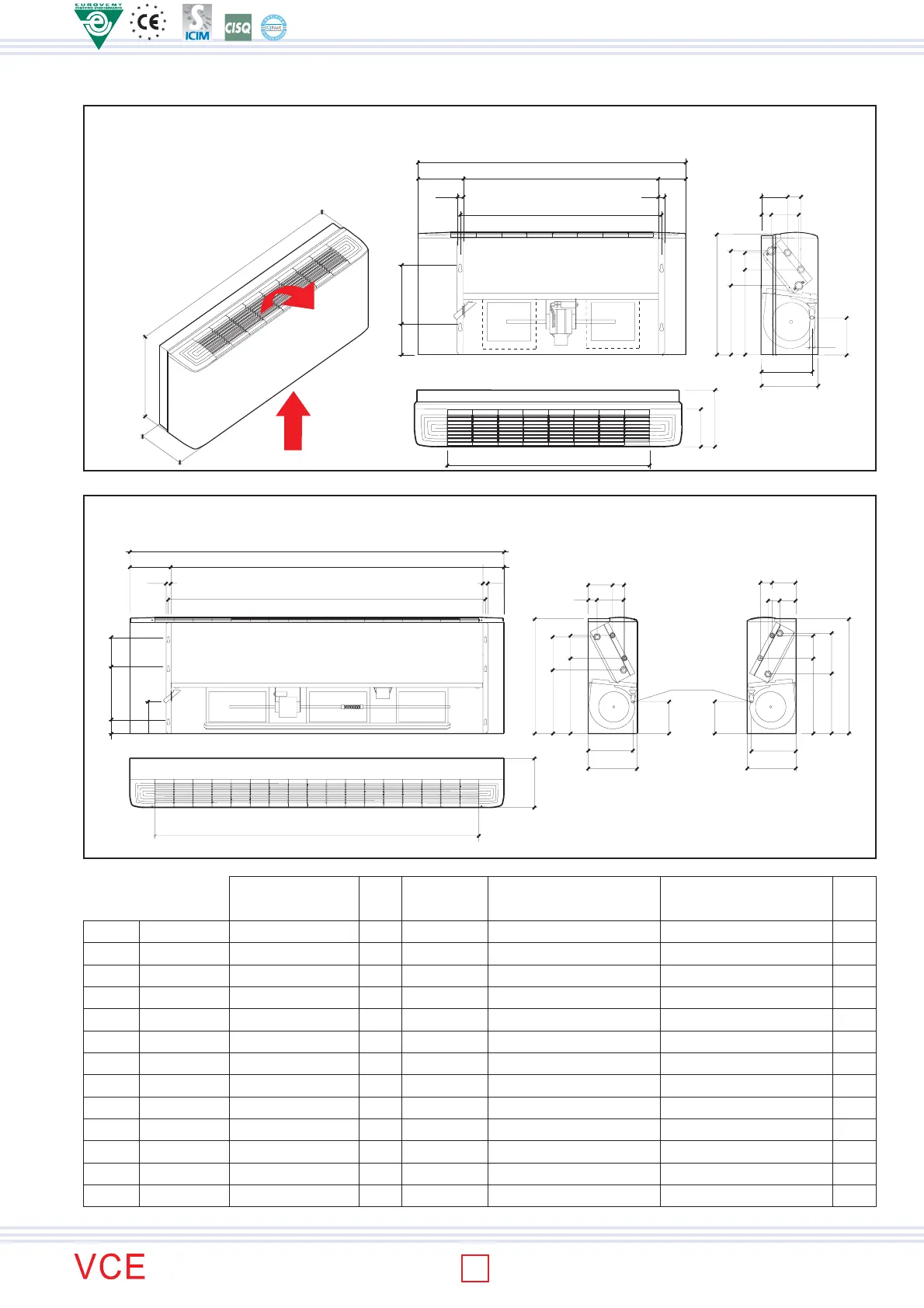

VERSION 0 - Wall mounted with cabinet (bottom air intake)
VCE 10-90
S
148
I
H
AB
EF
MX
NY
Ø 20
147
200
S
L
H
S
C
D
L
179 108
25
25
122 G
VCE 100-120
L
LEFT
VERSION
RIGHT
VERSION
C
D
216
116
25
25
167
72 278 153
I
S
H
333
173
395
120
115
62
39
141
Ø 20
167
H
234
S
167
234
S
62
113
76
62
120389
215308
N.B.: On the models VCE100, VCE110 and VCE120 the fold on the cabinet is not foreseen!
Dimensions Standard coil Auxiliary coilDistance
between slots
N.o
grilles
MOD. CODE H L S C D G N Y A B M X E F I
VCE10 A0015090010 480 660 225 370 395 233 39 109 274 137 103 53 337 67 4
VCE20 A0015090020 480 860 225 570 595 233 39 109 274 137 103 53 337 67 6
VCE30 A0015090030 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8
VCE40 A0015090040 480 1.060 225 770 795 233 39 109 274 137 103 53 337 67 8
VCE50 A0015090050 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10
VCE60 A0015090060 480 1.260 225 970 995 233 39 109 274 137 103 53 337 67 10
VCE70 A0015090070 585 1.260 225 970 995 253 41 107 268 253 101 52 374 124 10
VCE80 A0015090080 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12
VCE90 A0015090090 585 1.460 225 1.170 1.195 253 41 107 268 253 101 52 374 124 12
VCE100 A0015090100 602 1.661 257 1.335 1.362 - - - - - - - - - 14
VCE110 A0015090110 602 1.961 257 1.635 1.662 - - - - - - - - - 17
VCE120 A0015090120 602 1.961 257 1.635 1.662 - - - - - - - - - 17
ISO 9001:2000 - Cert. n. 1368/1
20
