ELECTRICAL CIRCULAR DUCT HEATERS
EKA
56
≤ 6 kW

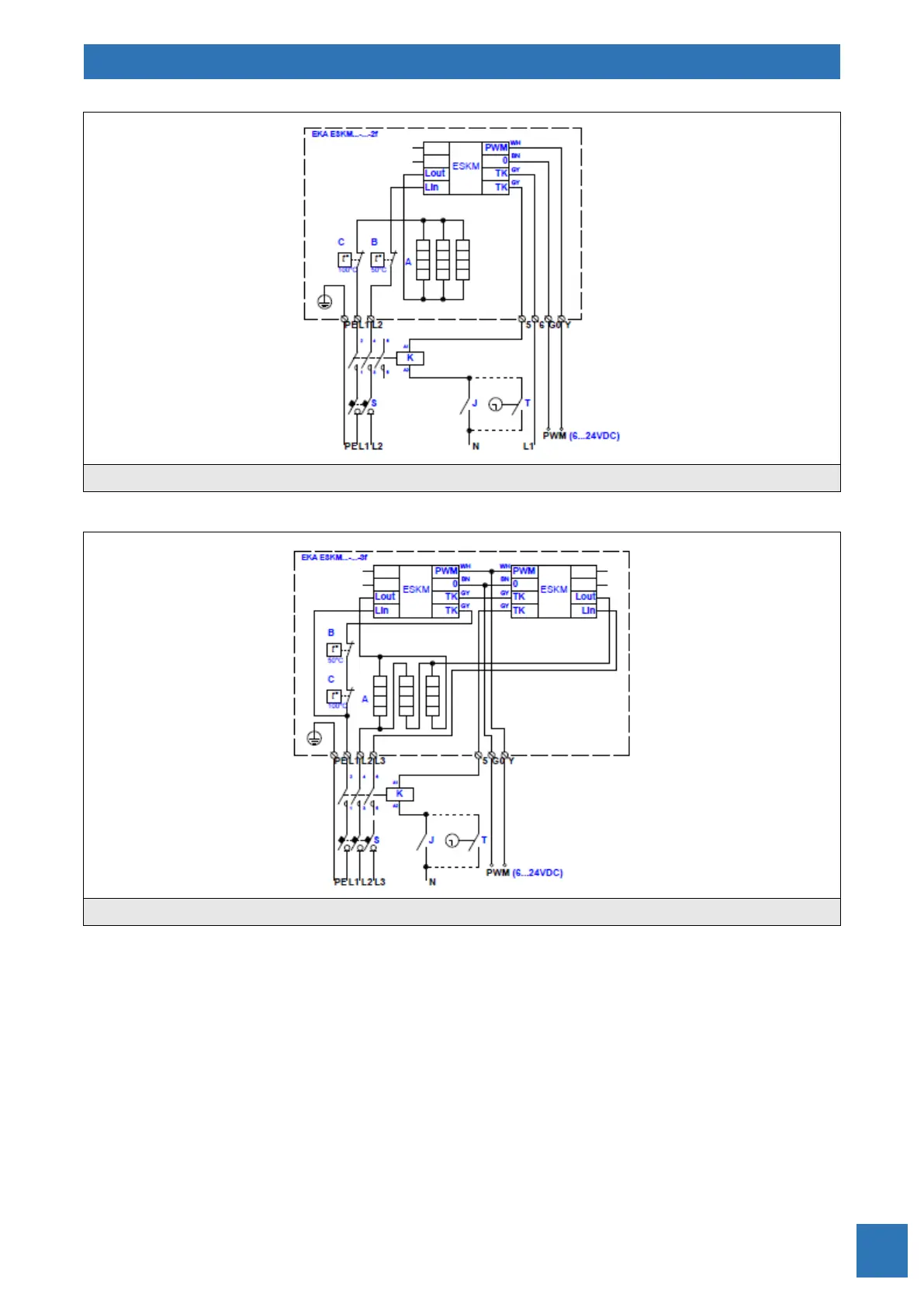

Fig. 86. Electrical wiring diagram of 2-phase 400V heater EKA ESKM…-…-2f
≤ 15 kW
Fig. 87. Electrical wiring diagram of 3-phase 400V heater EKA ESKM…-…-3f
