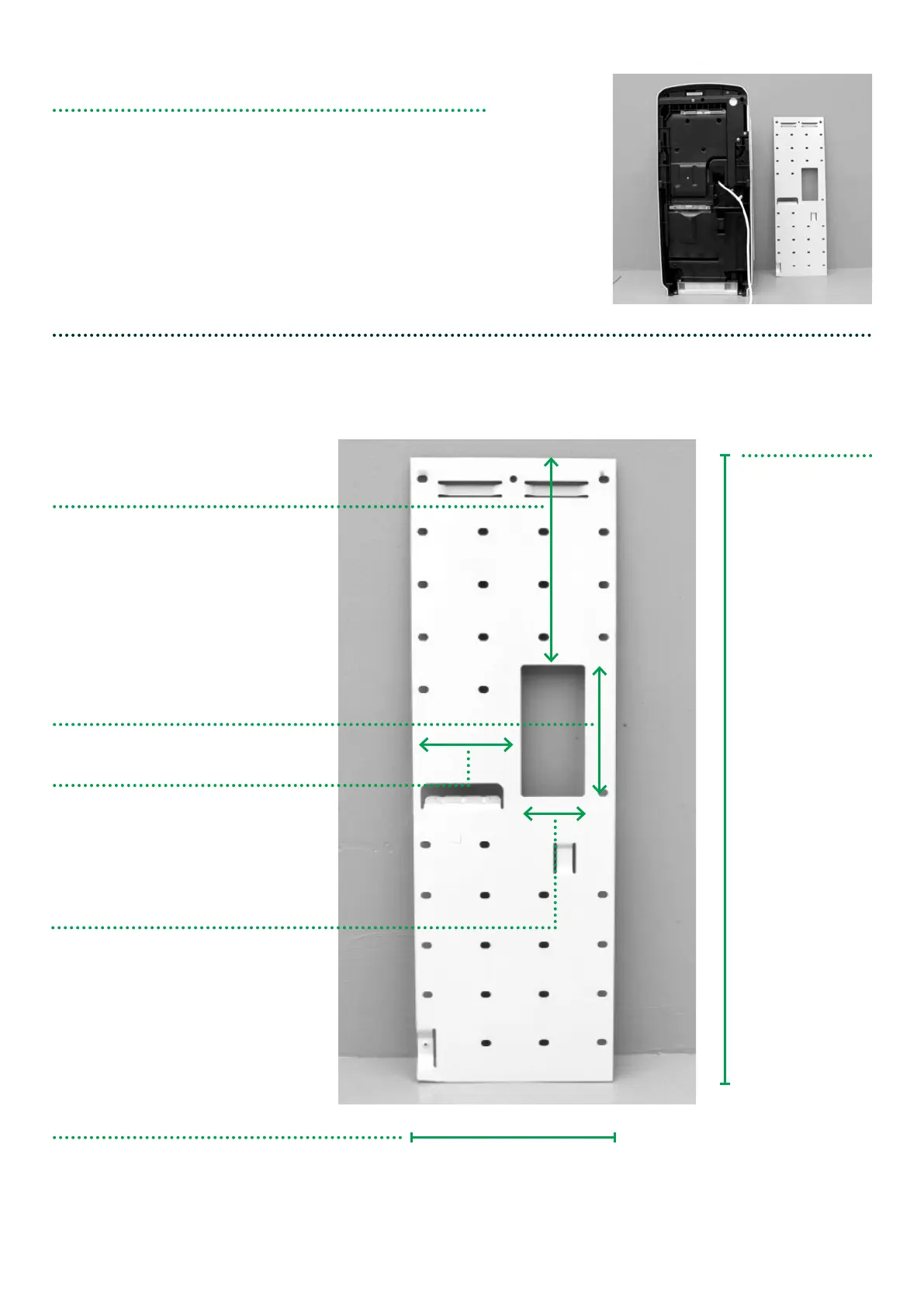

Verde Maxi - Mounting Plate Dimensions and Features; Mounting Plate Dimensions; Power Cord Cutout Details

Installation of Verde Maxi Dryer
Suggested installation height from oor
to top of Hand Dryer
Male: 1000 – 1100mm
Female: 950 – 1050mm
Distance from top of
Mounting Plate to Power
Cord cutout
195mm.
Power cord cutout
Height: 125mm.
Distance from edge of
mounting plate to edge
power cord cut out is
105mm.
Width: 60mm.
Mounting Plate Width
195mm.
Mounting
Plate Height
610mm.
Page 2 of 2
