TERMINAL SETUP
Installing and Replacing MSAM Cards
32 VX 680 INSTALLATION GUIDE
6 Install an MSAM card by placing the card facing the gold contacts down and
carefully snap it on the tab until it is fully inserted.

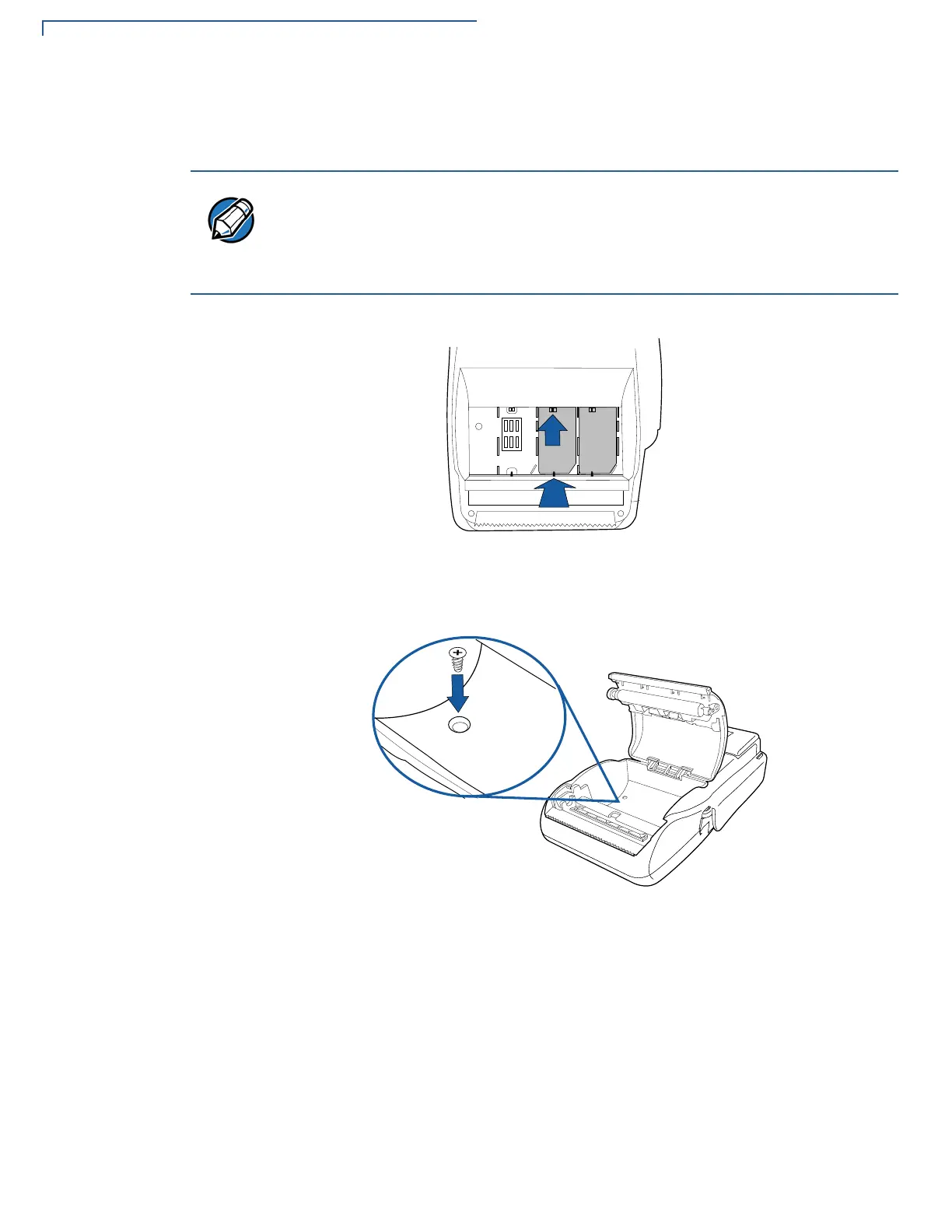

Figure 18 Installing MSAM Card
7 Screw back the MSAM compartment latch.
Figure 19 Closing the Printer Cover
NOTE
Before inserting the MSAM card, position it as shown in Figure 18, with the card’s
gold contacts facing the MSAM compartment. The cardholder connector base has
a set of contacts and a notch on one corner to ensure that the MSAM card fits into
the connector base and positioned correctly. The MSAM compartment door will
not close properly if the MSAM card is installed incorrectly.
