Step 6: Adjust thrust pressure limit with Speed/Pressure Trim Switch. Rotation
pressure limit cannot be adjusted in R.A.T.T. mode (oscillation or straight
drilling).
The rotation pressure limiter must be turned ON when using the R.A.T.T. tool in
order to prevent damage to the tool components.

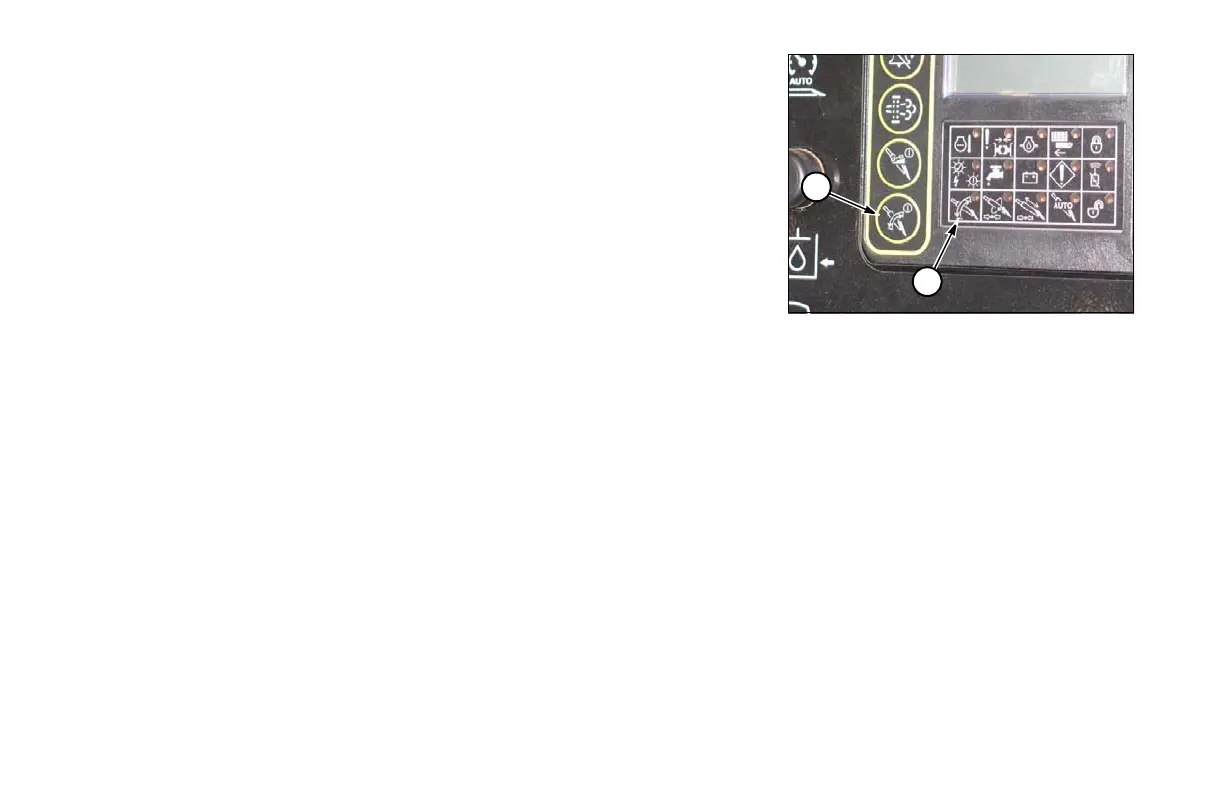

To start AutoDrill in the R.A.T.T. S tr ai g ht Dr i ll i ng m o de , th e R.A.T.T. Oscillation
Mode Enabled Light (3) must be OFF. Press R.A.T.T. Mode Key (1) twice, first to
activate Oscillation mode, then press again to toggle to Straight Drilling mode.
AutoDrill - Pause
Move either Rotation or Thrust/Pullback Handle out of NEUTRAL to stop drill string motion and PAUSE
AutoDrill.
The Thrust/Pullback and Rotation Handles must both be returned to NEUTRAL for at least 1/2 second before
the handles are enabled for manual control of rotation and thrust/pullback.
