Vermeer Navigator D20x22 II Series User Manual

21-6 Electronic Controller D20x22 Series II Navigator HDD

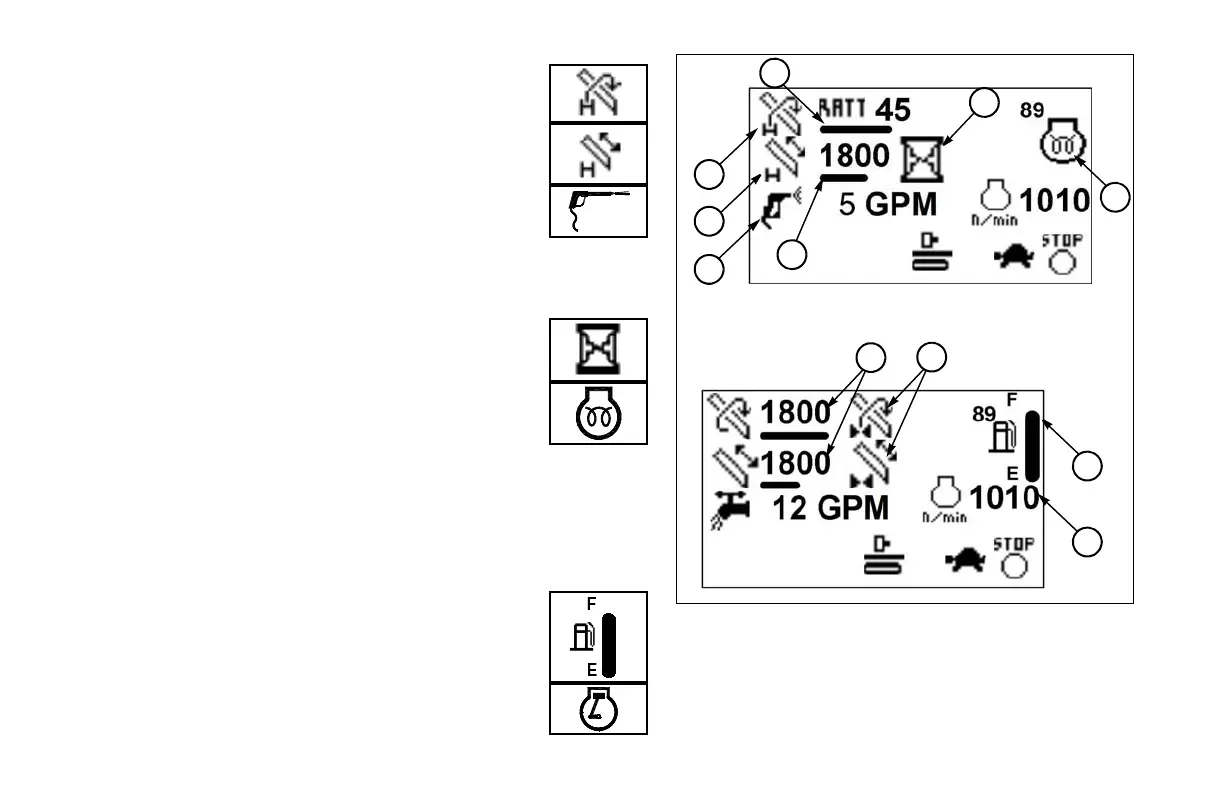

(11) High Speed Rotation
(12) High Speed Thrust
(13) Wash Wand Available; flow in GPM
Maximum flow is 5 gpm
(14) Bar Graph - indicates amount of rotation output
(15) Bar Graph - indicates amount of thrust output
(16) Save Pressure Limit Setting
Appears when Enter Key is pressed to save settings.
(17) Glow Plug/Grid Heater Indicator
(18) Normal Rotation and Thrust Limiting
Adjust using AutoDrill Selector Switch for normal
rotation pressure limiting and Speed/Pressure Trim
Switch for thrust pressure limiting.
(19) Rotation and Thrust Pressure Limiting Enabled
(20) Fuel Gauge
(21) Engine RPM
20
21
18
14
16
17
15
13
12
11
19
