Vertex Standard MH-75A8J User Manual

7MH-75A8J Service Manual

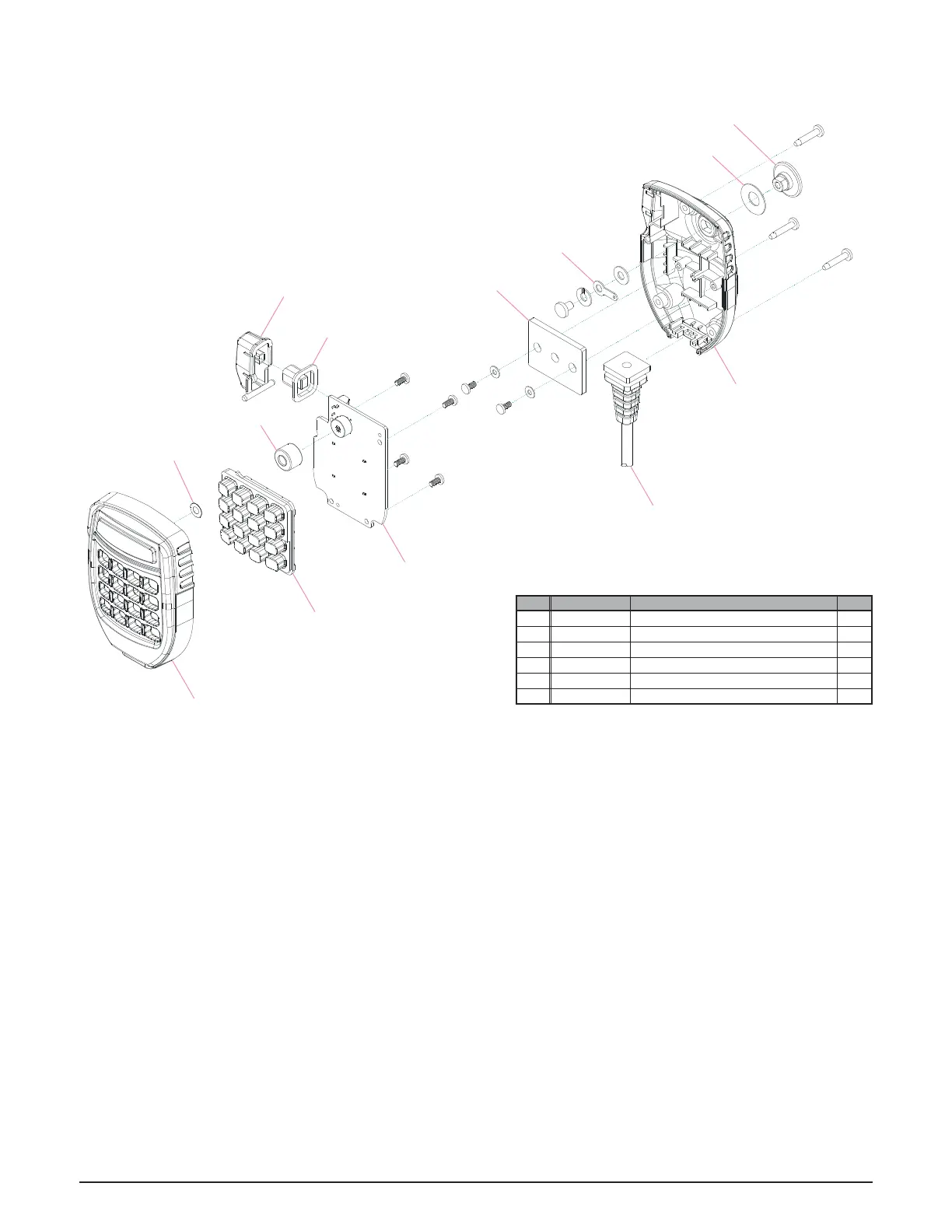

Exploded View
Non-designated parts are available only aspart of a designated assembly.
REF.






VXSTD P/N
U20406002
U23316007
U24206001
U70002001
U70004002
U71004002
DESCRIPTION
BINDING HEAD SCREW M4X6NI
BIND HEAD TAPTITE-P M3X16B
BIND HEAD TAPTITE-B M2.6X6
PLAIN WASHER FW2.6
PLAIN WASHER FW4NI
SPRING LOCK WASHER SW4NI
Qty.
1
3
6
2
1
1
RA1041100
FRONT CASE
RA1041400
RUBBER KNOB
MAIN UNIT
RA1041200
REAR CASE
T9207464
WIRE ASSY
RA1028200
HOOK
RA0824500
PLATE (HANGER)
Q6000116
TERMINAL (B6 M4)
RA0818700
WEIGHT
RA0818600
RUBBER (PTT)
RA1041300
PTT KNOB
RA0187600
SHEET (MICRO TEX 8X4)
RA0183800
MIC HOLDER RUBBER














