Vertex Standard VX-1700 Series User Manual

103VX-1700 Series (EXP Version) Service Manual
PA Unit (Lot 109~)

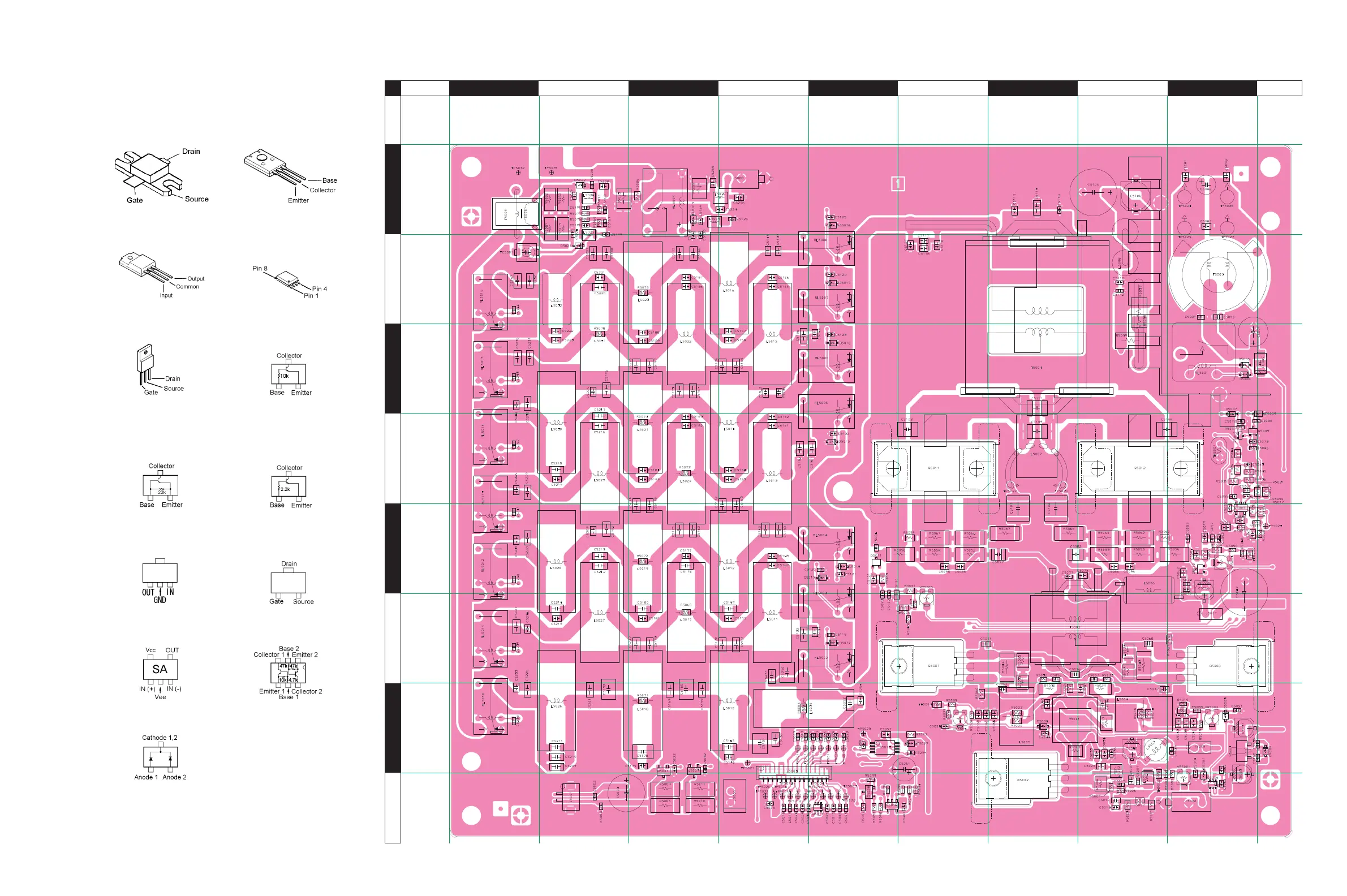

Parts Layout (Side A)
BA DCEFHGIJ
1
2
3
4
5
6
7
8
KIA7808API
(Q2003)
2SB1143S
(Q2002)
DTC114TE (04)
(Q5001)
DTC124GUA (K25)
(Q5009)
DTD123TK (T146)
(Q5003)
LM2904PWR
(Q5013)
RD100HHF1
(Q5011, 5012)
TA75S01F (SA)
(Q5005, 5014)
RD06HHF1
(Q5002)
RD16HHF1
(Q5007, 5008)
UMD5N
(Q5006, 5015)
DAN202K (N)
(D5028)
DAN202U (N)
(D5010, 5011)
SSM3K01F (KW)
(Q5001)
HA178L09UA (8F)
(Q5004)
