Vertex Standard VX-2100 Series Service Manual

H-7

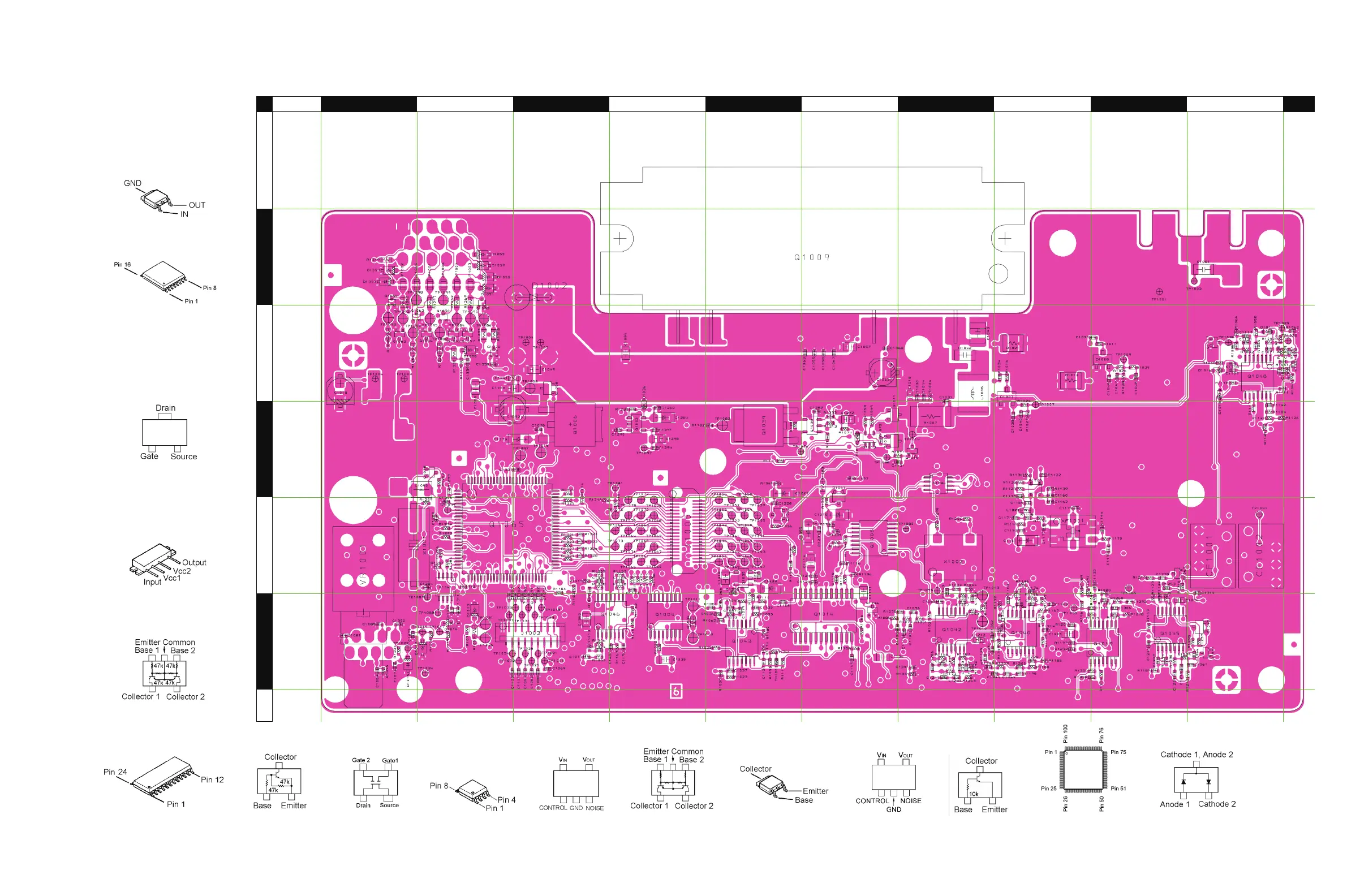

MAIN Unit (Lot. 5~8)
Parts Layout (Side A)
BA DCEFHGIJ
1
2
3
4
5
6
K
MTM231230L (BL)
(Q 1008, 1011, 1012)
2SK397300L
(Q1050, 1055, 1060,
1063, 1070)
NJM7808DL1A
(Q1006)
S-AV32
(Q1009)
UMG2N
(Q1013)
SN74LV4053APWR
(Q1004, 1005)
NJM12902V
(Q1040, 1042, 1043,
1045, 1046, 1048,1049)
LM2902PWR (Lot. 7~)
(Q1045)
M62364FP
(Q1014)
6
HSM88AS (C1)
(D1007, 1008)
MC2850 (A7)
(D1042, 1060, 1061)
2SB1201S-TL
(Q1039)
3SK293 (UF)
(Q1025)
BH2220FVM
(Q1034)
BR93L66RFVM
(Q1061)
LC87F5CC8A
(Q1065)
RT1N441U (N3)
(Q 1016, 1017, 1026,
1041, 1053, 1057,
1062, 1064, 1067)
XN1501 (R5)
(Q1038)
TAR5S50
(Q1052)
TAR5S35(3V5)
(Q1035)
RT1N140U
(Q1058)
VX-2100/-2200
(
VHF
)
Service Manual
