Chapter 4 Operator Control And Display Panel 57
Liebert EXM 80kVA ~ 200kVA UPS User Manual

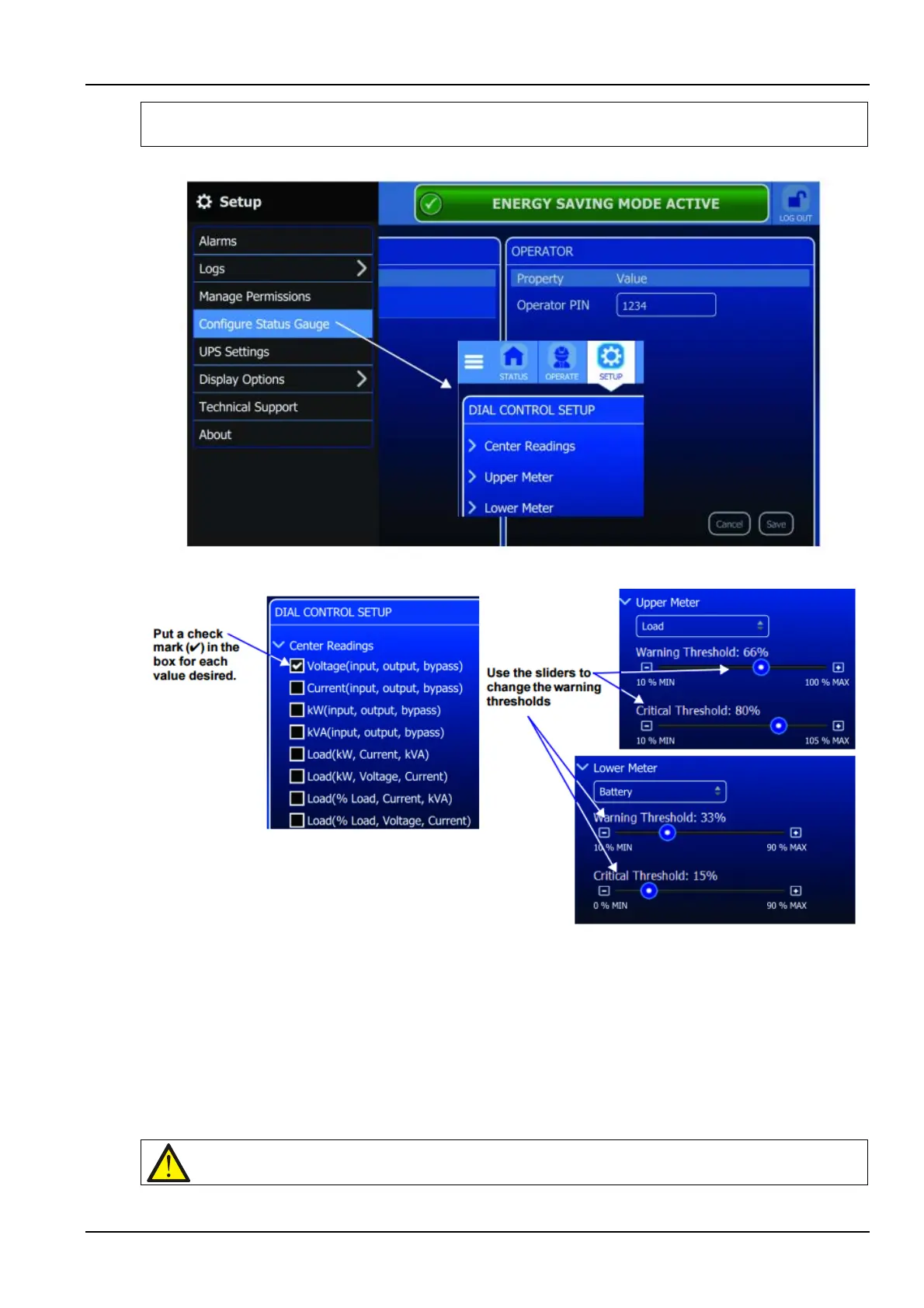

The DIAL CONTROL SETUP pane may be also be accessed by touching the Status Gauge and holding it for about 2
seconds. This requires Administrator or Service access.
Figure 4-23 Access Status Gauge settings
Figure 4-24 Status Gauge setting options
4.4.2 Viewing UPS Data With The Status Panel
More-detailed information about the UPS’s status is readily available through the Status panel. Touching a
component in the animated mimic display brings up data about the component on another pane.
Touching a parameter icon on the UNIT STATUS pane brings up further details about that parameter.
The same data can be vieweds by switching to the text view. The length of the lists and order of the
details may require scrolling to find the desired data.
