GXT5 Description8

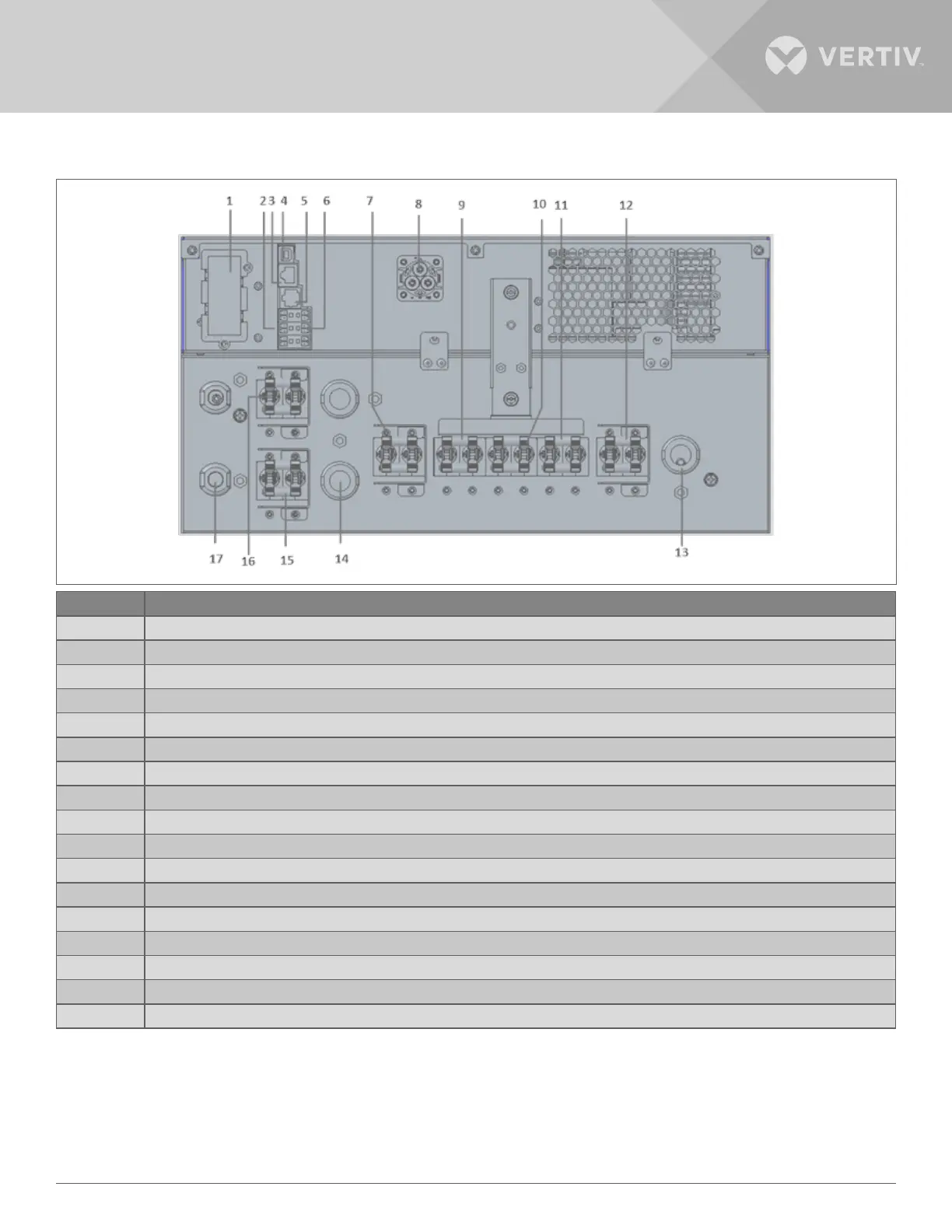

Figure 1-5 GXT5-6KL630RT5UXLN Rear Panel
ITEM DESCRIPTION
1 Liebert® IntelliSlot™ port
2 Terminal-block communication connectors
3 RS-485 port - RJ-45 connection used for external temperature sensors
4 USB port
5 RS-232 port - RJ-45/RJ-11 connection used for command line interface
6 REPO connector
7 L6-30R output breaker
8 External-battery-cabinet connector
9 Programmable outlet maintenance bypass breaker
10 Programmable outlet maintenance bypass breaker
11 Maintenance-bypass breaker
12 Input circuit breaker
13 L6-30P input plug
14 L6-30R output receptacle (2x)
15 Programmable L6-20R output breaker
16 Programmable L6-20R output breaker
17 Programmable L6-20R output receptacle (2x)
