Vertiv | Liebert® GXT5 | Installer/User Guide 9

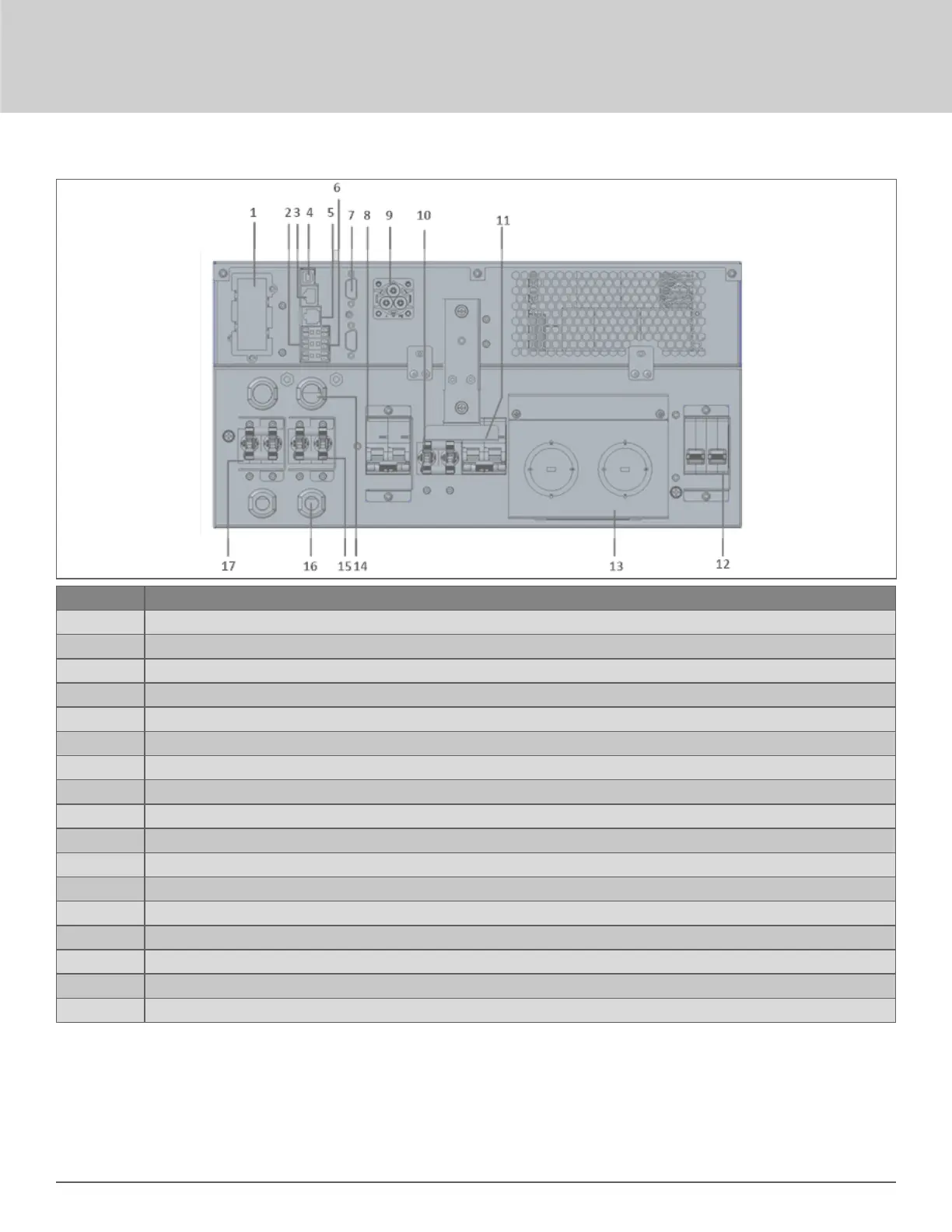

Figure 1-6 GXT5-8000/10KHVRT5UXLN Rear Panel
ITEM DESCRIPTION
1 Liebert® IntelliSlot™ port
2 Terminal-block communication connectors
3 RS-485 port - RJ-45 connection used for external temperature sensors
4 USB port
5 RS-232 port - RJ-45/RJ-11 connection used for command line interface
6 REPO connector
7 DB9 ports - Used for communication when operating in a parallel system, see 2�8� Installing a Parallel System
8 Output circuit breaker
9 External-battery-cabinet connector
10 Programmable outlet maintenance bypass breaker
11 Maintenance-bypass breaker
12 Input circuit breaker
13 Removable junction box with knockouts for hardwire I/O
14 L6-30R output receptacle (2x)
15 Programmable L6-20R output breaker
16 Programmable L6-20R output receptacle (2x)
17 L6-30R output breaker
