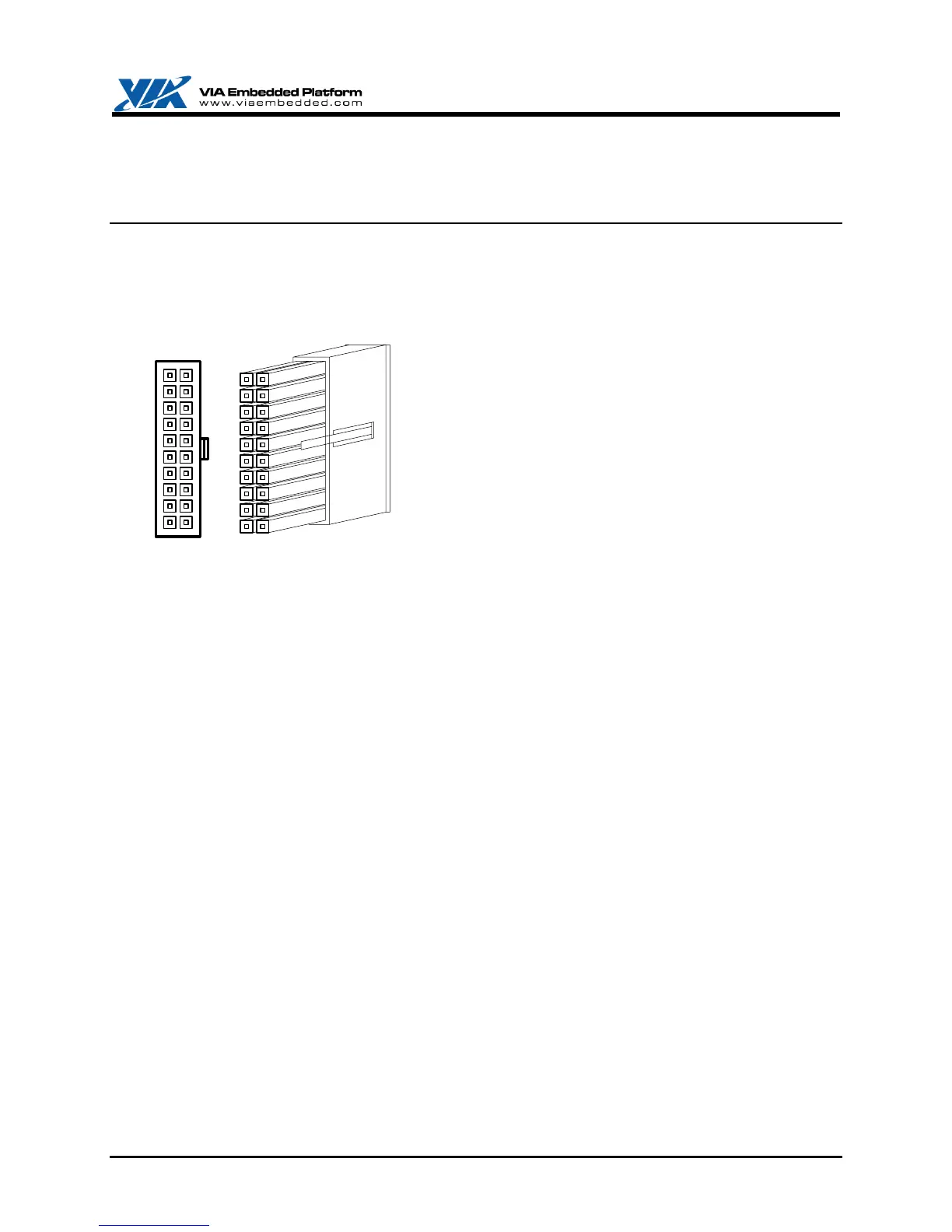

Power Specifications
The EPIA EN utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the
EPIA EN platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even
the heaviest of multimedia system applications.
1 +3V 11 +3V
2 +3V 12 -12V
3 Gnd 13 Gnd
4 +5V 14 PWR_ON-
5 Gnd 15 Gnd
6 +5V 16 Gnd
7 Gnd 17 Gnd
8 PWR_GD 18 NC
9 5V_SB 19 +5V
10 +12V 20 +5V
Note: NC = no connection
