VIA Technologies EPIA LN-Series User Manual

EPIA LN-Series Operating Guide
May 23, 2007 - 11 - Version 1.01
Power Specifications

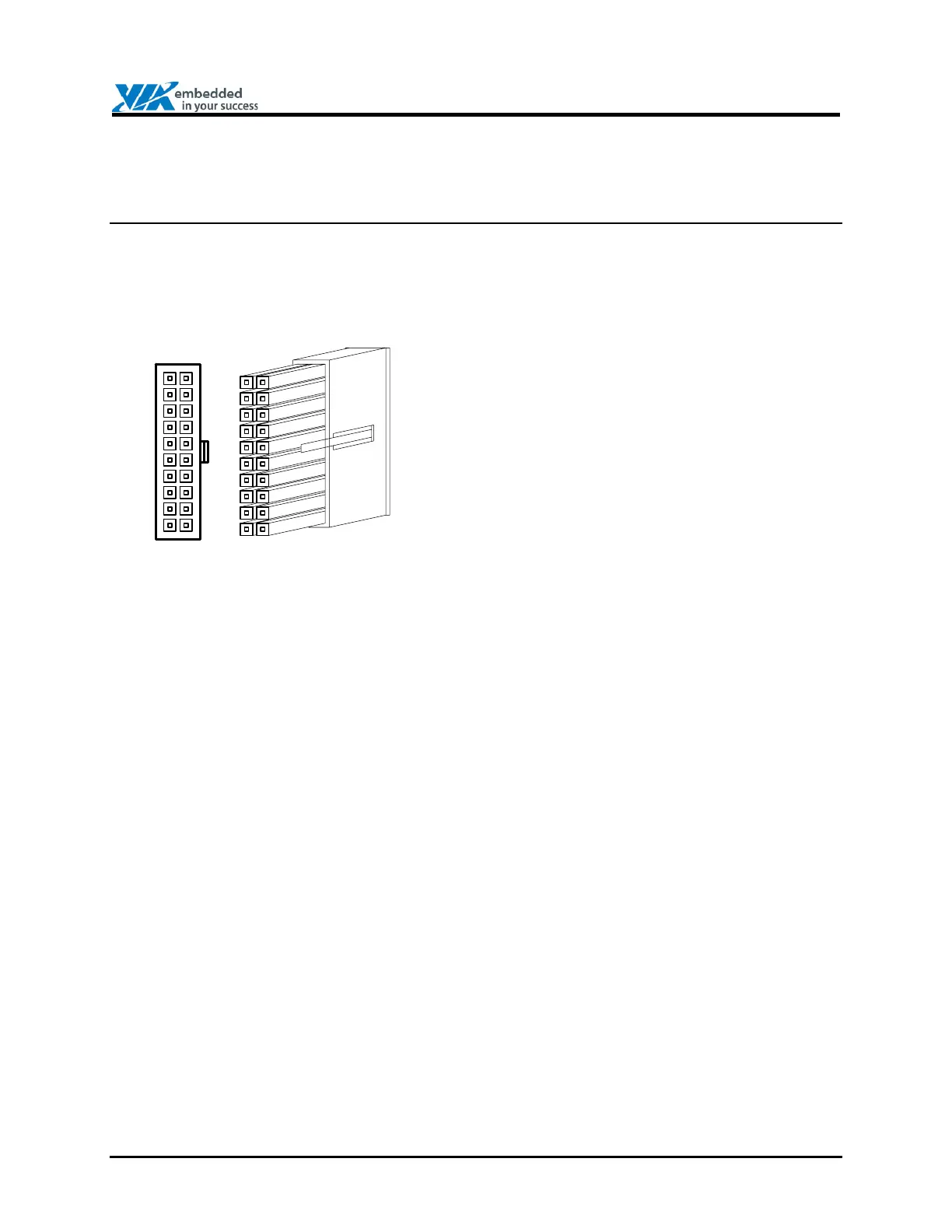

The EPIA LN utilizes an industry standard 20-pin ATX main connector to the power supply.
Due to the EPIA LN platform’s ultra low power requirements a 90 – 120 Watt ATX power
supply is ample for even the heaviest of multimedia system applications.
1 +3V 11 +3V
2 +3V 12 -12V
3 Gnd 13 Gnd
4 +5V 14 PWR_ON-
5 Gnd 15 Gnd
6 +5V 16 Gnd
7 Gnd 17 Gnd
8 PWR_GD 18 NC
9 5V_SB 19 +5V
10 +12V 20 +5V
Note: NC = no connection
1
2
3
4
5
6
7
8
9
11
12
13
14
17
18
19
2010
