DDR SDRAM Module Installation Procedures
1.) Push the white retaining latches at either end of the DIMM slot outwards.
2.) Align the DDR SDRAM module with the corresponding notches on the
DIMM slot. The modules will only fit if placed in the correct position.
3.) With both hands, press the DDR SDRAM module down into the DIMM
slot so that the white retaining latches rotate up and secure the module in
place (see picture below).

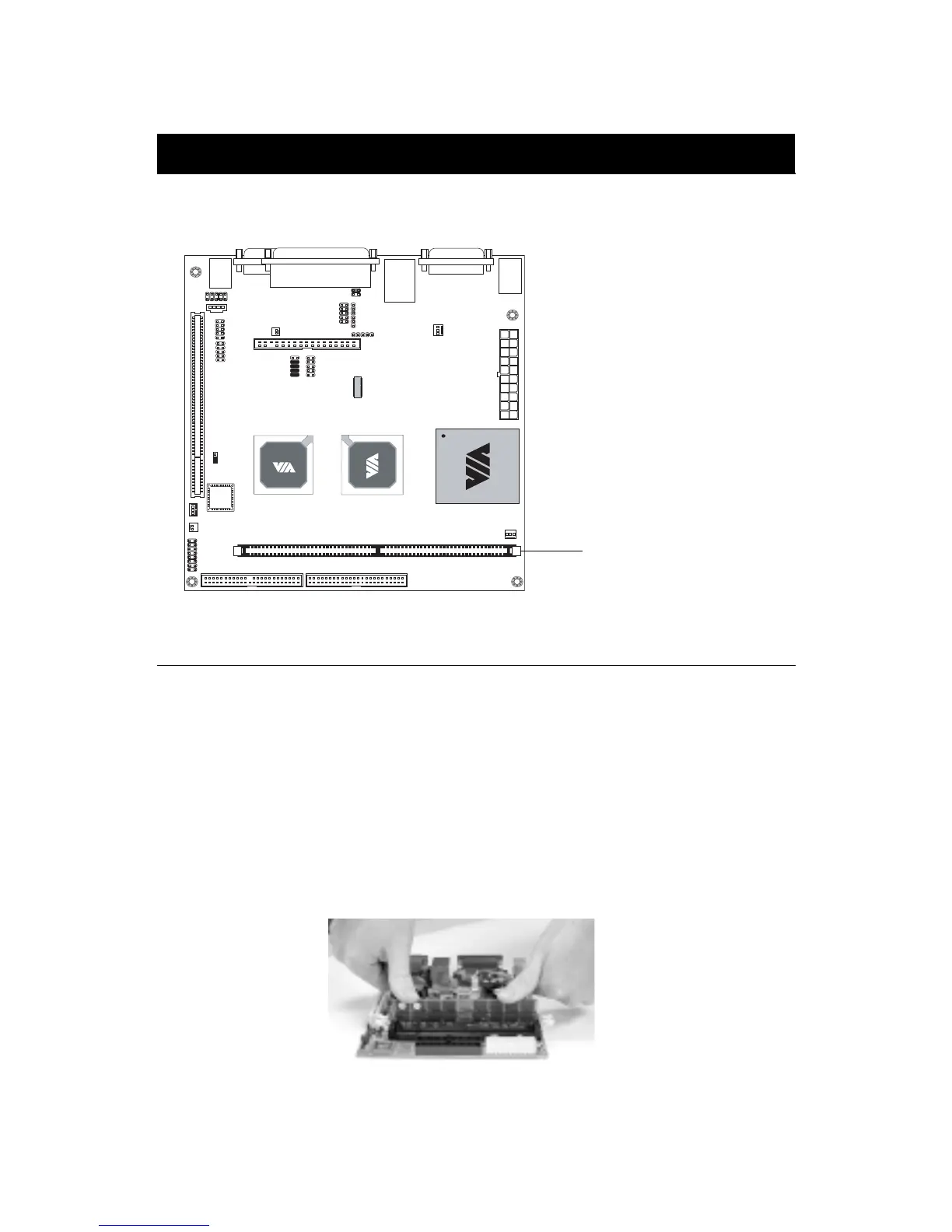

The VIA EPIA-M Mini-ITX Mainboard provides one 184-pin DIMM slot for
DDR266 SDRAM memory modules.
Memory Installation
DIMM
