Hardware Setup
2-15

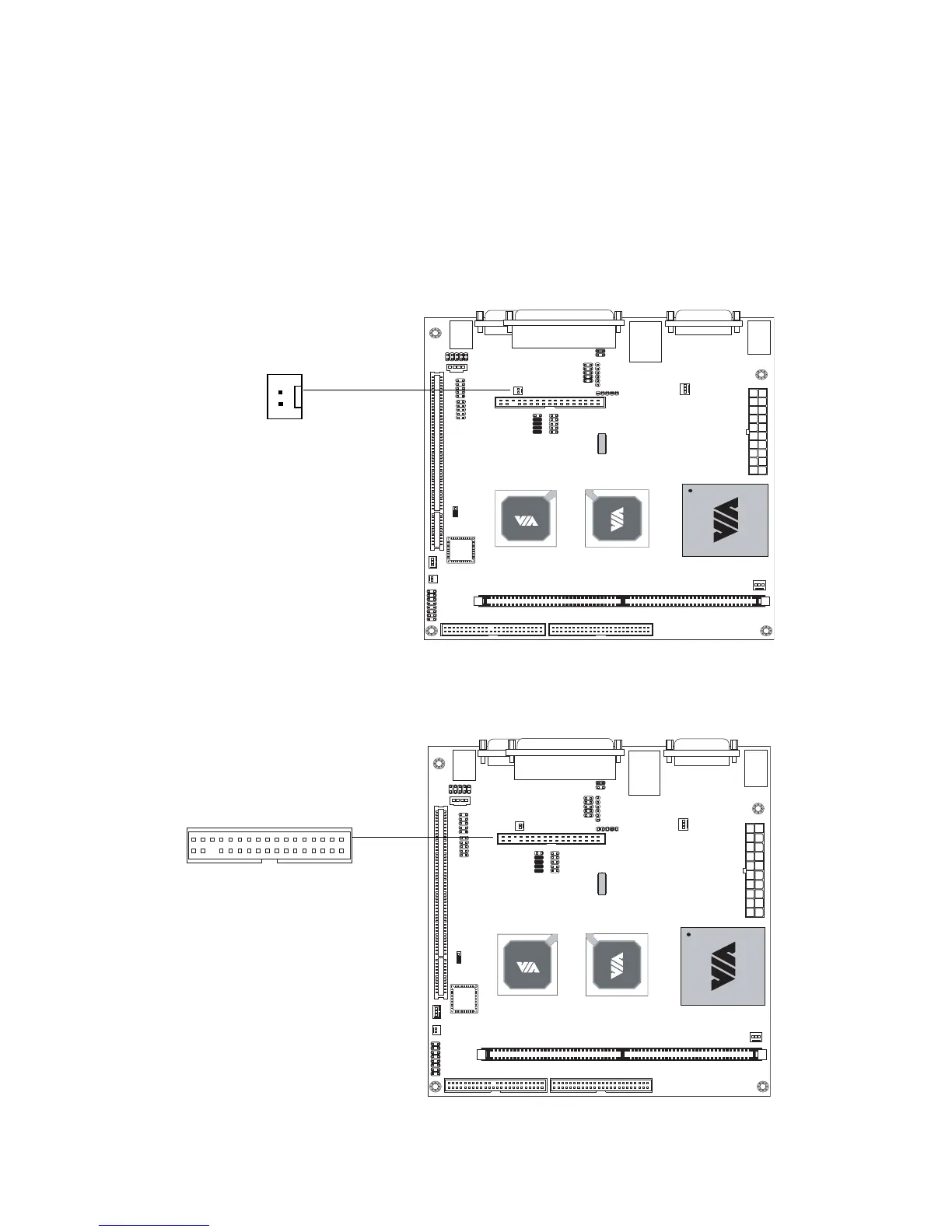

Chassis Intrusion Connector: CI
This connector is for a chassis designed with intrusion detection feature. It
requires a chassis intrusion sensor or on a chassis. If any chassis component
is moved, the sensor triggers and sends a high-level signal to this connector
to record a chassis intrusion event.
Floppy Disk Drive Connector: FDD
The standard floppy disk drive connector supports 360K, 720K, 1.2M, 1.
44M, and 2.88M.
FDD
GND
CHASSIS
1
2
CI
