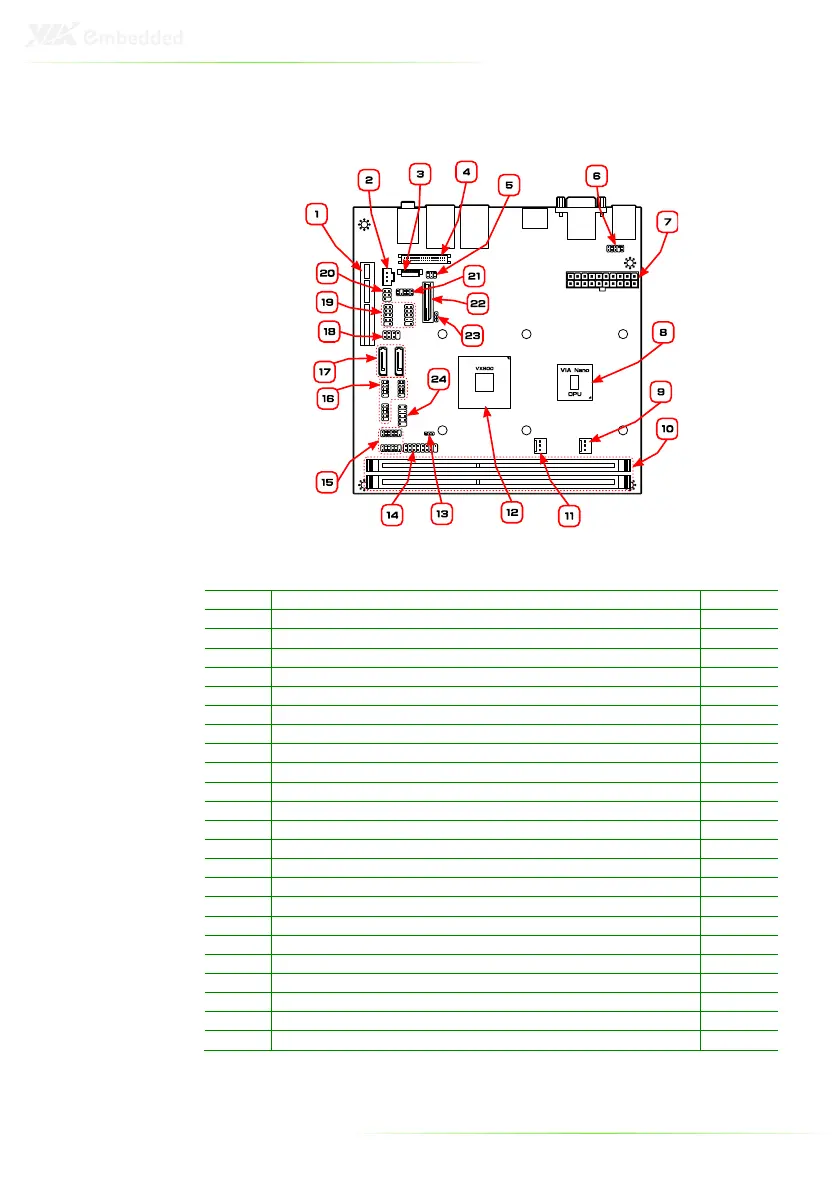

LAYOUT
Item Description Page
1 PCIE1: 1 x PCIe 4-lane slot 12
2 SPDIF1: SPDIF connector 17
3 BL1: Backlight inverter connector 11
4 LVDS1: LVDS connector 10
5 J3: LVDS power select and inverter select jumper 24
6 KBMS1: PS2 pin header for keyboard and mouse 17
7 CN1: 20-pin ATX connector 22
8 U16: VIA Nano CPU 2
9 FAN2: CPU fan 21
10 DIM1, DIM2: DDR3 slots 19
11 FAN1: System fan 21
12 U15: VIA VX900 2
13 SMB1: SMBus pin header 16
14 F_PANEL1: front panel pin header 18
15 DIO1, DIO2: Digital I/O pin headers 15
16 COM2, COM3, COM4: COM pin headers 14
17 SATA1, SATA2: SATA connectors 12
18 SPI1: SPI pin header 16
19 USB1_2, USB3_4: USB pin headers 13
20 USBD1: USB device port pin header 13
21 F_AUDIO1: front audio pin header 18
22 BAT1: CMOS battery socket 23
23 JBAT1: CMOS reset jumper 25
24 LPC1: LPC pin header 16
