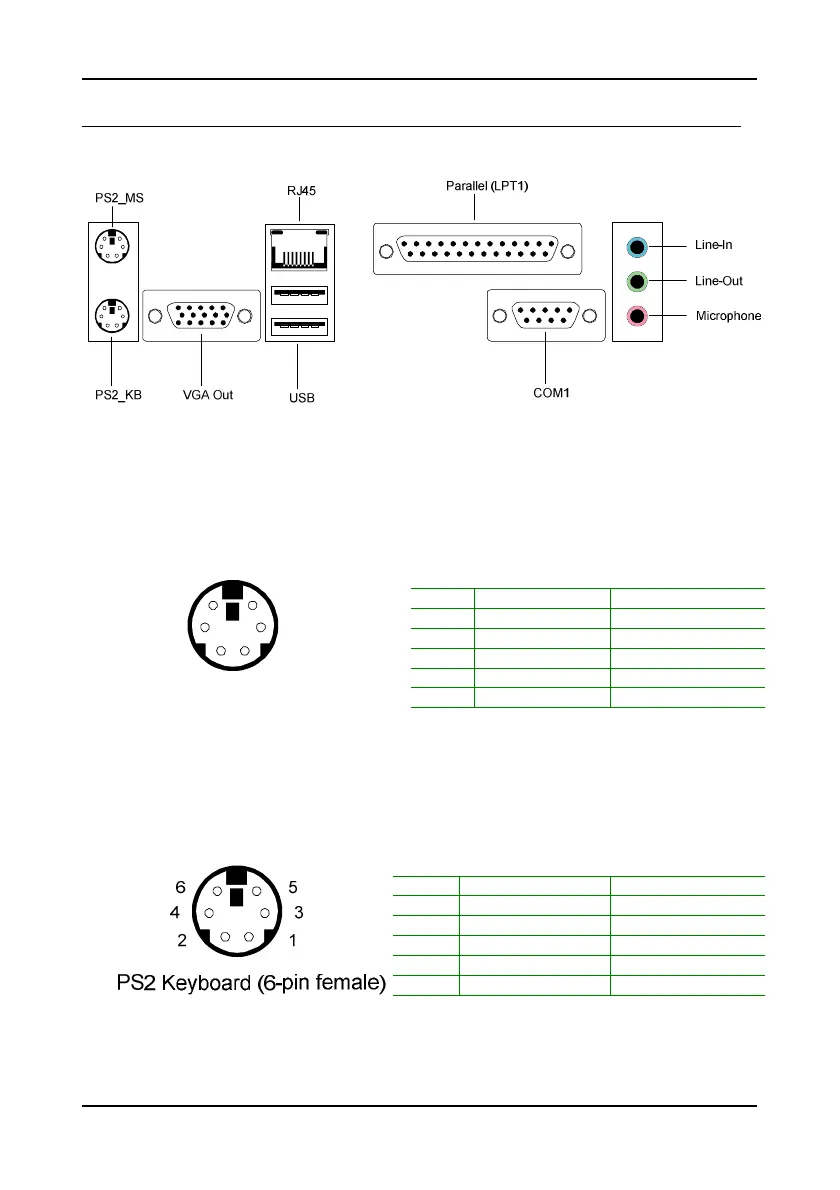

B ACK P ANEL P ORTS
The back panel has the following ports:
Mouse Port: PS2_MS
The mainboard provides a standard PS/2 mouse connector for attaching a
PS/2 mouse. You can plug a PS/2 mouse directly into this connector. The
connector location and pin assignments are as follows.
Pin Signal Description
1 Mouse DATA Mouse data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Keyboard Port: PS2_KB
The mainboard provides a standard PS/2 keyboard connector for attaching a
PS/2 keyboard. You can plug a PS/2 keyboard directly into this connector.
Pin Signal Description
1 Keyboard DATA Keyboard data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
1
3
5
2
PS2 Mouse (6-pin female)
4
6
