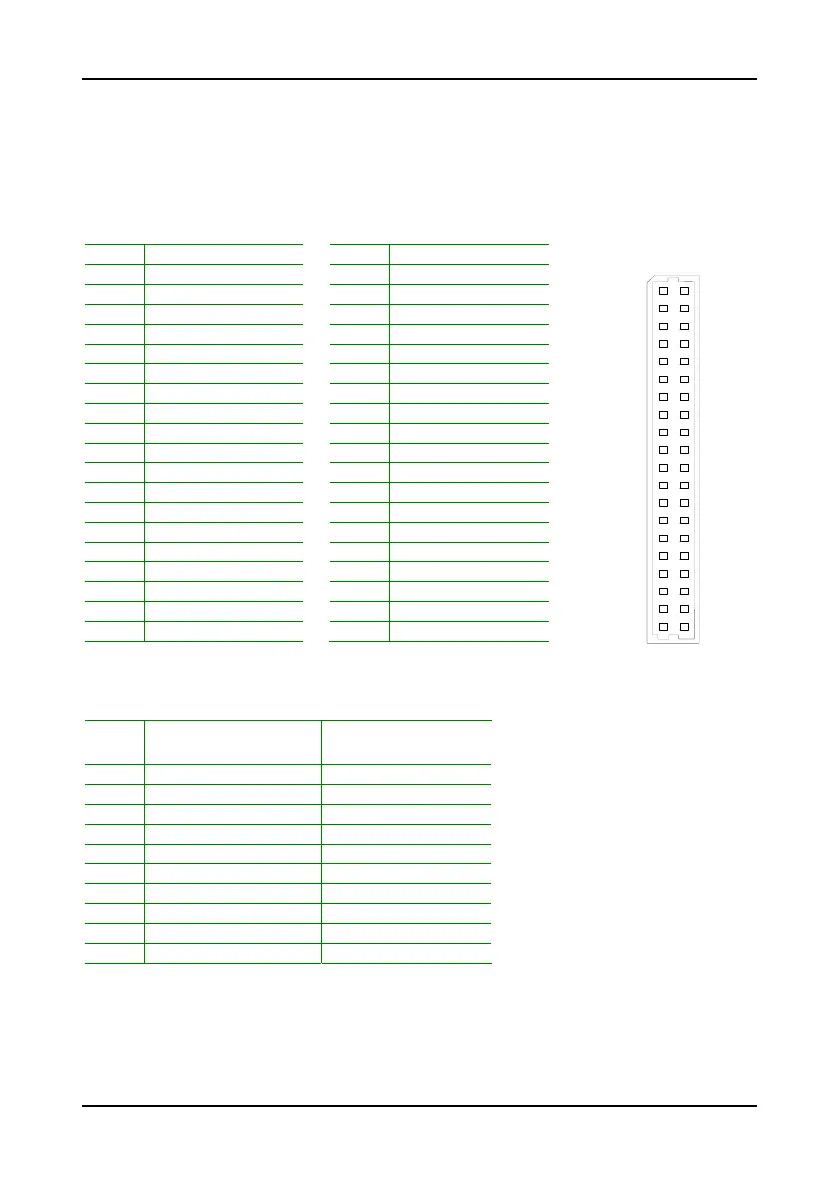

LVDS/DVI Panel Connector: LVDS Panel
The LVDS/DVI Panel connector allows you to connect the panel’s LVDS cable
directly to support LVDS panel without any need of a daughter card.
Pin Signal Pin Signal
1 +12V 2 +LCD1_D0
3 +12V 4 -LCD1_D0
5 -LCD1_D2 6 +3V
7 +LCD1_D2 8 +LCD1_D1
9 +12V 10 -LCD1_D1
11 -LCD2_CLK 12 +3V
13 +LCD2_CLK 14 -LCD1_CLK
15 +5V 16 +LCD1_CLK
17 -LCD2_D3 18 +3V
19 +LCD2_D3 20 -LCD1_D3
21 +5V 22 +LCD1_D3
23 +LCD2_D2 24 GND
25 -LCD2_D2 26 +LCD2_D0
27 GND 28 -LCD2_D0
29 +LCD2_D1 30 GND
31 -LCD2_D1 32 SPD1
33 GND 34 SPCLK1
35 ENAVDD1 36 ENABLT2
37 ENAVDD2 38 ENABLT1
39 GND 40 GND
For DVI Connector Signal
Pin
DVI Connector
Signal
CN5
Signal
2 TXC+ +LCD1_D0
4 TXC- -LCD1_D0
5 TX1- -LCD1_D2
7 TX1+ +LCD1_D2
8 TX0+ +LCD1_D1
10 TX0- -LCD1_D1
14 TX2- -LCD1_CLK
16 TX2+ +LCD1_CLK
32
I²C Data
SPD1
34
I²C Clock
SPCLK1
1
2
39
40
